Product Description

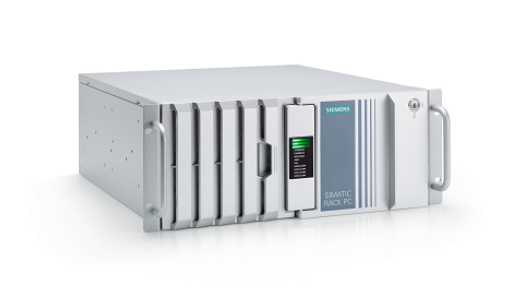

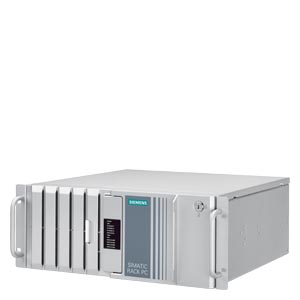

The SIMATIC IPC547J is a high‑performance, industrial‑grade 19" rack‑mount server (4 U) engineered for demanding automation, visualization, data acquisition and industrial computing applications. Designed for 24/7 operation in industrial environments, this rugged system delivers robust processing power and extensive expansion capabilities tailored for tasks such as SCADA, machine vision, quality inspection, industrial AI and control‑level computing. Built with a 10th‑generation Intel® Xeon® W‑1270E processor, industry‑grade Ethernet, multiple USB interfaces, and a versatile expansion slot array, the IPC547J ensures high throughput, scalability and long‑term reliability.
Pre‑installed with Windows Server 2022 Standard Edition with 5 client licenses, this configuration includes dual SSD storage and comprehensive industrial monitoring features such as temperature and fan supervision, watchdog, and robust chassis design for shock and vibration resilience. Ideal for system integrators and OEMs, the IPC547J supports remote management, RAID storage options and powerful multi‑monitor display capabilities.
Key Features
High‑End Performance
-
Intel® Xeon® W‑1270E (8 Cores / 16 Threads)
-
3.4 GHz base frequency, up to 4.8 GHz turbo
-
16 MB CPU cache
-
16 GB DDR4 dual‑channel memory (2× 8 GB)
-
2× 480 GB SSD 2.5″ SATA (system + data)
-
Windows Server 2022 Standard Edition (64‑bit) with 5 CALs included
Industry‑Ready Interfaces
-
Front: 2× USB 3.0
-
Rear: COM1 serial port, audio in/out
-
3× Intel Gigabit Ethernet
-
2× DisplayPort + 1× DVI‑D
-
6× USB 3.1 Gen.2 + 2× internal USB 2.0
-
Intel Active Management Technology (AMT)
Expansion & Monitoring
-
7 total expansion slots:
-
5× PCI Express (Gen 3)
-
2× legacy PCI
-
Integrated watchdog and system health monitoring (temp, fans)
-
Card retainers and rugged chassis for vibration/shock resilience
Industrial & System Features
-
Dual‑AC industrial power supply (100–240 V) redundant
-
RAID1 capable (via optional configuration)
-
Secure, lockable front access door
-
Dust filter and regulated industrial cooling
-
Optional TPM 2.0 support (security hardware)
-
Designed for installation in shallow control cabinets
Specifications
| Category |
Specification |
| Product Name |
SIMATIC IPC547J (Rack PC, 19″, 4 U) |
| Manufacturer |
Siemens Industry |
| CPU |
Intel® Xeon® W‑1270E |
| CPU Cores / Threads |
8 / 16 |
| CPU Frequency |
3.4 GHz base / 4.8 GHz turbo |
| CPU Cache |
16 MB |
| Chipset |
Intel® W480E |
| Memory |
16 GB DDR4 (2× 8 GB), dual channel |
| Storage |
2× 480 GB SSD 2.5″ SATA |
| Operating System |
Windows Server 2022 Standard Edition (64‑bit) incl. 5 clients |
| Front Interfaces |
2× USB 3.0 |
| Rear Interfaces |
COM1, Audio, 3× Gbit Ethernet, 1× DVI‑D, 2× DisplayPort, 6× USB 3.1 Gen.2, 2× USB 2.0 (internal) |
| Expansion Slots |
5× PCIe + 2× PCI |
| Industrial Monitoring |
Temperature & fan monitoring, watchdog |
| Management |
Intel AMT |
| Power Supply |
Dual 100–240 V AC industrial PSU (redundant) |
| Enclosure |
19″ 4 U rack, blue chromated metal |
| Shock / Vibration |
0.2 g vibration, 2 g shock |
| Security Features |
Lockable front door, optional TPM 2.0 |
| RAID Support |
RAID1 capable (optional) |
| Certifications |
CE & industrial compliance |
| Mounting |
Rack‑mount, optional tower kit |
| Typical Uses |
Industrial automation, SCADA, AI/vision, data acquisition |
