When you need a small motor to move with exact speed and position, many controllers are too big, too expensive, or hard to set up. That makes your machine run slower, waste energy, or stop working. The Siemens SINAMICS S210 motion controller solves these issues with a compact size, simple wiring, and ready-to-use software, so you get reliable motion control without extra hassle.

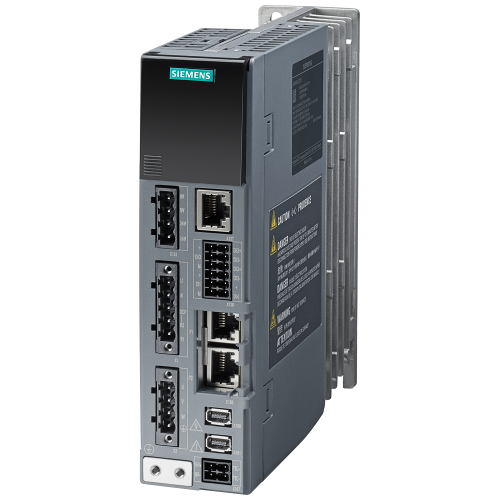

Siemens SINAMICS S210, 1AC 230V, 0.1kW 6SL5310-1BB10-1CF0 Motion Controller with Siemens
Get precise power in a tiny package. The Siemens SINAMICS S210, 1AC 230V, 0.1kW 6SL5310-1BB10-1CF0 Motion Controller is a servo converter designed for small-scale automation. It turns a single-phase 230 V supply into smooth, programmable motion for motors up to 0.1 kW. If your line needs fast start-stop, accurate positioning, or variable speed, this unit delivers the control you need without a large footprint. Engineers choose it because it matches the Siemens ecosystem, offers built-in safety functions, and can be linked to common PLCs. The result is less downtime and lower total cost of ownership. The controller also includes diagnostic LEDs that tell you instantly if a fault occurs, helping you fix problems fast. Energy consumption stays low because the unit only draws what the motor needs.
Specifications
| Article Number (MLFB) |
6SL5310-1BB10-1CF0 |
| Product Family |
SINAMICS S210 servo converters |
| Input Voltage |
200…240 V AC (1-phase) |
| Input Voltage Tolerance |
-10% / +10% |
| Input Current |
1.4 A |
| Input Frequency |
45…66 Hz |
| Output Voltage |
0…input voltage |
| Output Current |
0.8 A |
| Output Frequency |
0…550 Hz |
| Motor Power |
0.1 kW |
| Protection Class |
IP20 |
| Frame Size |
A |
| Dimensions (W × H × D) |
45 × 170 × 170 mm |
