When a robot arm stops because the drive cannot keep up, production slows and costs rise. Inaccurate motion can cause scrap parts and unsafe conditions. You need a drive that delivers fast, reliable torque and precise control. The Siemens SINAMICS S210, Robot Drive Amplifier solves these issues with a compact, high-performance design that fits most industrial robots. When the drive overheats or loses communication, the whole cell shuts down and you lose valuable production minutes. A stable drive also protects the robot motor from damage, extending its life and lowering maintenance bills.

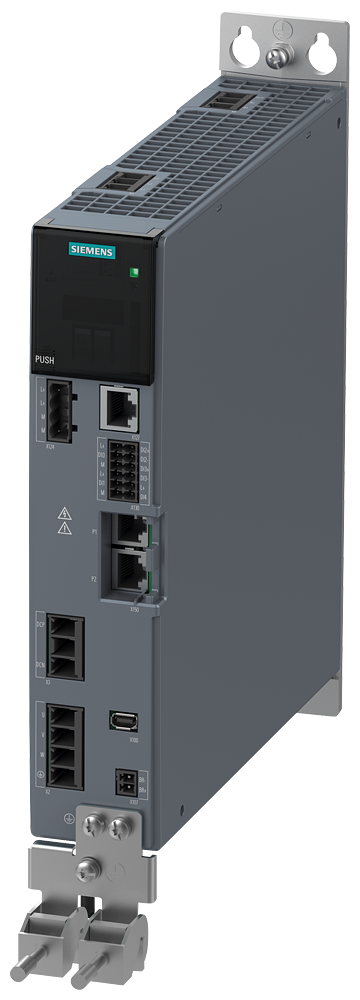

Siemens SINAMICS S210, Robot Drive Amplifier with Siemens
Imagine a production line that never stops because the robot drive cant keep up. The Siemens SINAMICS S210, Robot Drive Amplifier with Siemens power delivers exactly that reliability. It is a three-phase servo drive built for 1 kW robot applications. The unit accepts 200 V or 480 V supply and provides 3.8 A continuous current, giving you smooth motion at high speed. Its IP20 rating makes it safe for indoor use, while the compact 273 mm length fits tight cabinets. Engineers choose this amplifier to reduce downtime, improve cycle time, and meet strict quality standards. The amplifier also features built-in energy-saving modes that lower power draw when the robot is idle. Its standard communication ports let you link directly to Siemens controllers, so you spend less time on wiring and more time on real work.
Specifications
| General |
|
| Brand |
Siemens |
| Number of Phases |
3 |
| Product Type |
Servo Drive |
| Series |
SINAMICS S210 |
| Electrical |
|
| Supply Voltage |
200, 480V |
| Output Voltage |
480V |
| Current Rating |
3.8A |
| Power Rating |
1kW |
| Mechanical |
|
| Overall Length |
273mm |
| Overall Width |
50mm |
| Overall Depth |
223mm |
| IP Rating |
IP20 |
| Environmental |
|
| Minimum Operating Temperature |
0°C |
| Maximum Operating Temperature |
50°C |
| Compliance |
|
| Standards/Approvals |
EAC |
