The latest Wi-Fi® technology will take your network connectivity to the next level!

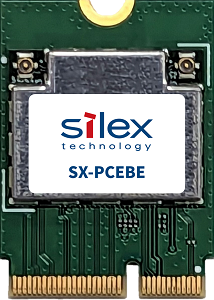

The SX-PCEBE is a rugged, industrial-grade embedded wireless LAN module powered by the Qualcomm QCC2076 chipset. It delivers reliable, high-speed communication using the latest Wi-Fi 7 standard (IEEE 802.11be).
This module ensures seamless, stable wireless connectivity for a wide range of applications, including industrial and medical data communication, as well as video and image transmission for machine vision, remote monitoring cameras, and diagnostic imaging equipment. Additionally, the SX-PCEBE supports the 6GHz frequency band, offering enhanced performance with minimal radio interference, ensuring reliable communication in even the most demanding environments.
SX-PCEBE is powered by the QCA2076 chipset that supports Wi-Fi 7 and tri-band frequencies. It is ideal for embedded applications like medical devices, transportation, and AI data-driven and streaming products that need to pass large amounts of data over a network relatively quickly.
Key Features and Benefits
- Stable communication with 6GHz band support: The 6GHz band offers numerous channels and is free from noise in 2.4GHz and 5GHz, ensuring stable communication for critical data in industrial and medical applications.
- Multi Link Operation (MLO): Wi-Fi 7’s multi-link operation allows the device to connect to all three frequencies (2.4, 5, and 6 GHz) at the same time. This feature is a game-changer as it enables communication redundancy by simultaneously using multiple frequency bands. If interference disrupts one band, communication continues on the other, enhancing reliability for devices like cameras that transmit continuous data.Wi-Fi 7 introduces preamble puncturing to avoid channels with interference, resulting in an ability to use wider channels in the face of interference.
- Standard Form Factors for Seamless Integration: The SX-PCEBE comes in multiple form factors for diverse needs. The surface mount option, the M.2 LGA type 1620, offers the smallest footprint ideal for medical equipment with limited space, while the M.2 PCI Express card factor is suitable to migrate your legacy PCIe radios to an 802.11 solution. The M.2 card option also allows customers to evaluate the radio using any platform that has an M.2 slot.
- Dual Band Simultaneous Operation (DBS) :This product enables simultaneous communication on 2.4GHz, 5GHz, or 6GHz frequencies, with two streams per band for high-speed, concurrent data transfer.
Specifications:
| Chipset |
QCC2076 |
| Host Interface |
WLAN: PCIe 3.0 with L1SS; Bluetooth: UART or USB 1.1 |
| WLAN Specifications |
IEEE 802.11a/b/g/n/ac/ax/be (2×2) |
| Bluetooth Specifications |
Bluetooth v5.4 (BR/EDR/LE/2LE) |
| Antenna |
MHF4 Ports ×2 |
| Operating Voltage |
Main Power: 3.3V; IO Power: 1.8V |
| Operating Temperature |
-40 ~ 85°C |
| Storage Temperature |
-40 ~ 85°C |
| Weight |
SX-PCEBE-SMT: 1.2 g; SX-PCEBE-M2: 2.9 g |
| Dimensions |
SX-PCEBE-SMT: 16.0 × 20.0 mm; SX-PCEBE-M2: 22.0 × 30.0 mm |
| Target Tx Power |
2.4 GHz: 26 dBm; 5 GHz: 21 dBm; 6 GHz: 23 dBm |
| Modular Certifications |
USA, Canada, Europe, Japan |
| Recommended Antennas |
TE Connectivity (2118907-8) |
| OS Support |
Linux |
| Basic Functionality |
Station, Access Point, WPA3, IEEE802.1X (TLS, TTLS, PEAP), WPS2.0*, Wi-Fi Direct* |
| Certification Note |
WPS2.0 and Wi-Fi Direct require separate Wi-Fi Alliance certification |
