Spectrum analyzer

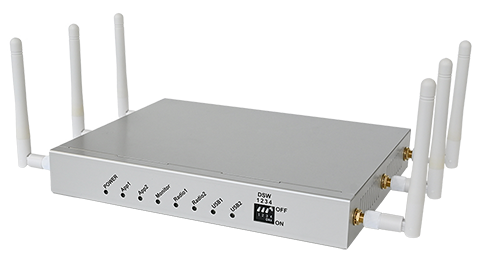

The WM-100 collects radio wave characteristic data for Wireless LAN as well as non-WLAN transmissions. The WM-100 and the Wave Navigator on Windows OS are powerful WLAN monitoring tools to visualize the WLAN environment for maintenance and troubleshooting.
The solution stores historical WLAN status data for IT operators or WLAN support teams to analyze and troubleshoot errors. The 802.11 packet capture is a powerful tool, especially when there are Wi-Fi connectivity issues.
Features:
WM-100 sends collected data to Wave Navigator in a factory office or backroom via LAN, providing operators visibility of wireless communication statuses remotely.
- Stationary Wireless Monitoring Device
- Optimizes stability of wireless LAN environment
- Signal data graphs can provide noise-only data
- Monitors WLAN transmissions that constantly fluctuate to help improve communication quality
- Remote visibility of data/wireless communication statuses
Specifications:
| Monitoring Band |
2.4 GHz / 5 GHz |
| Operating Temperature |
0°C to 40°C |
| Dimensions |
200 × 158.5 × 30 mm |
| Power Input |
PoE or DC (12V) |
| Network Operation |
LAN |
| Software |
WaveNavigator (Windows OS) |
| Power Supply |
AC Adapter: 100–240V, 50/60 Hz |
| 2.4 GHz Channels |
1 to 13 |
| 5 GHz Channels |
36–48, 52–64, 100–140, 149–165 |
| Regulatory Compliance |
FCC Part 15 Subpart B Class A, ICES-003 Class A, EU RoHS |
