Imagine having a powerful and reliable edge gateway that can handle all your network needs without making a sound. The Silicom Ibiza Fanless Edge Gateway, Intel Atom x7000 Processor Fanless uCPE is here to make that a reality. As a network administrator, you know how frustrating it can be to deal with noisy and unreliable equipment. But with the Silicom Ibiza, you can say goodbye to those problems and hello to a more efficient and productive network. The Silicom Ibiza is designed to provide a robust and secure connection, making it perfect for a variety of applications. But what really sets it apart is its ability to solve a major problem that many network administrators face: the need for a reliable and quiet edge gateway.

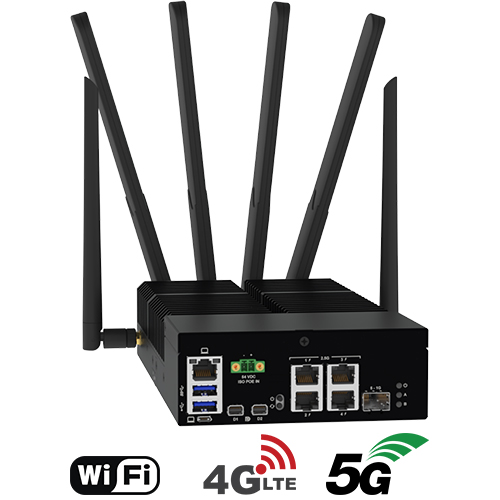

Silicom Ibiza Fanless Edge Gateway, Intel Atom x7000 Processor Fanless uCPE
The Silicom Ibiza Fanless Edge Gateway, Intel Atom x7000 Processor Fanless uCPE is designed to solve the problem of noisy and unreliable edge gateways. This problem matters to network administrators because it can cause downtime, data loss, and decreased productivity. The Silicom Ibiza provides a clear solution by offering a fanless design, which eliminates noise and reduces the risk of equipment failure. With its powerful Intel Atom x7000 processor and robust security features, the Silicom Ibiza is the perfect solution for anyone looking for a reliable and efficient edge gateway.
Key Features
- Intel Atom x7000 processor, providing powerful and efficient performance
- LPDDR5-4800 memory, offering fast and reliable data transfer
- 1x eMMC HS400 v5.1 SSD, providing ample storage for your applications
- 4x 2.5 Gbps RJ-45 ports, offering fast and reliable network connectivity
- Optional PoE++ (max 60W/port) on 2.5 Gbps RJ-45 ports, providing power and data over a single cable
- Optional Wi-Fi AP card, dual-band / dual-concurrent (DBDC), offering flexible wireless connectivity options
- Optional 1x 4G LTE radio card, 2x SIM slots and/or eSIM, providing mobile network connectivity
- Optional 1x 5G sub-6 radio card, 2x SIM slots and/or eSIM, offering high-speed mobile network connectivity
- Embedded Slim Bootloader UEFI, providing secure and efficient booting
- TPM 2.0, offering robust security features and protection against cyber threats
Specifications
| CPU |
2, 4, and 8 core Intel® Atom® x7000 series |
| Memory |
LPDDR5-4800 memory down, 4 to 32 GB total w/ECC |
| Storage |
1x eMMC HS400 v5.1 SSD down
Optional NVMe SSD card(s)* |
| Ethernet |
1x 1 Gbps copper RJ-45/fiber SFP port (BOM option)
4x 2.5 Gbps RJ-45 ports |
| Power over Ethernet |
Optional PoE++ (max 60W/port) on 2.5 Gbps RJ-45 ports |
| WLAN |
Optional Wi-Fi AP card, dual-band / dual-concurrent (DBDC) |
| WWAN |
Optional 1x 4G LTE radio card, 2x SIM slots and/or eSIM
Optional 1x 5G sub-6 radio card, 2x SIM slots and/or eSIM |
| Display |
Optional 2x mini-DisplayPort up to 4K resolution at 30 Hz |
| Local access |
Cisco RJ-45 and micro-USB console port (auto-detect)
1x USB-A 3.2 gen1 host port (5 Gbps)
2x USB-A 2.0 host port (480 Mbps) |
| Security (software) |
TPM 2.0
Optional Intel® Secure Boot
Optional Intel® Boot Guard
Optional Verified Boot |
| Buttons |
1x protruding button, programmable function and filter time
1x recessed button, programmable function and filter time |
| LED |
3x front panel multicolor RGBA LEDs, software configurable |
| BIOS |
Embedded Slim Bootloader UEFI |
| Telemetry |
Voltage monitoring
Temperature monitoring
Input power monitoring |
| Mains Power Input |
1x +12 VDC mains terminal block |
| PoE Power Input |
Optional 1x +54 VDC isolated in terminal block (separate from mains power input) |
| Cooling |
Fanless |
| Environmental |
0 to +65 C operating temperature (standard CPU options)
-40 to +65 C operating temperature (industrial CPU options)
10 to 95% non-condensing operating humidity |
| Mounting options |
Desktop: Rubber feet included
Wall mount: Brackets included
DIN rail: Clips included |
| Enclosure IP Rating |
IP50 |
| Unit Dimensions |
135 x 250 x 50 mm (W x D x H) |
