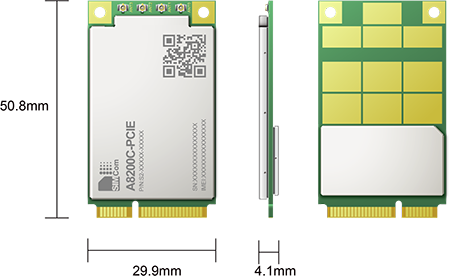

SIMCom A8200C-PCIE Multi-Band 5G NR/LTE-FDD/LTE-TDD module supports R16 5G SA/NSA
A8200C-PCIE is a Multi-Band 5G NR/LTE-FDD/LTE-TDD module which supports R16 5G SA/NSA.
With a rich protocols, it is integrated with interfaces such as PCIe, USB3.1, GPIO etc. This module provides applications with great flexibility and ability of integration.
A8200C-PCIE adopts PCIE form factor. AT commands of A8200C-PCIE are compatible with A8200X series modules. This also minimizes costs for customer and shortens time to market.
It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.
Advantages:
- PCIE form factor with various interfaces
- Medium data transmission
- AT commands of A8200C-PCIE compatible with A8200X series modules
Specifications:
| Product |
A8200C-PCIE |
| Form Factor |
PCIE |
| Dimensions(mm) |
50.829.94.1 |
| Frequency Bands |
|
| 5G SA |
n1/n3/n5/n8/n28/n41/n77/n78/n79 |
| 5G NSA |
n41/n77/n78/n79 |
| 5G UL 2*2 MIMO |
n41/n77/n78/n79 |
| 5G DL 4*4 MIMO |
n1/n3/n41/n77/n78/n79 |
| LTE-FDD |
B1/B3/B5/B8 |
| LTE-TDD |
B34/B38/B39/B40/B41 |
| WCDMA |
B1/B5/B8 |
| Temperature |
-30℃ ~ +70℃ |
| Electrical Features |
|
| Supply Voltage(V) |
3.3 ~ 4.4 |
| Data Transfer |
|
| Sub-6G NSA |
2.15Gbps(DL)/550Mbps(UL) |
| Sub-6G SA |
4Gbps(DL)/1Gbps(UL) |
| LTE |
300Mbps(DL)/50Mbps(UL) |
| HSPA+ |
42Mbps (DL)/5.75Mbps(UL) |
| Software Features |
|
| Protocol |
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
| TLS |
Supported |
| File System |
Supported |
| FOTA |
Supported |
| Android RIL |
Supported |
| USB Driver |
Microsoft Windows Win7/Win8/Win10/Win11/Linux/Android |
| MBIM |
Supported |
| NDIS |
Supported |
| Firmware Upgrade |
Supported |
| Interfaces |
|
| SIM Card |
*2 |
| USB |
USB3.1 |
| Diversity Receiver |
Supported |
| Certifications |
|
| Regulatory |
RoHS*/REACH*/CCC*/CTA*/TA* |
