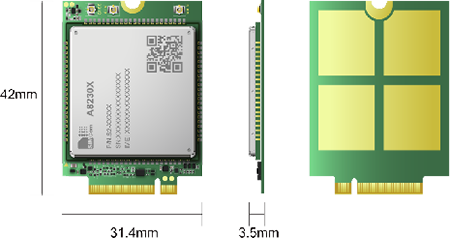

SIMCom A8230E-M2 5G NR LTE M.2 Wireless Module
A8230X-M2 is a Multi-Band 5G NR/LTE-FDD/LTE-TDD module which supports R17 5G SA.
With a rich protocols, it is integrated with interfaces such as USB2.0, GPIO etc. This module provides applications with great flexibility and ability of integration.
A8230X-M2 adopts M.2 form factor. AT commands of A8230X-M2 are compatible with SIM8230/7600 series modules. This also reduces costs for customer and shortens time to market.
It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.
Advantages:
- M.2 form factor with various interfaces
- Medium data transmission
- AT commands of A8230X-M2 compatible with SIM8230/7600 series modules
Spcifications:
| Product |
A8230C-M2 |
| Form Factor |
M.2 |
| Dimensions(mm) |
42.0 × 31.4 × 3.4 |
| Frequency Bands |
|
5G NR
|
3GPP Rel-17 RedCap SA operation, Sub-6 GHz，1T2R
|
5G NR SA
|
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41①/n71*/n77①/n78①
|
LTE-FDD
|
B1/B3/B5/B7/B8/B20/B28/B71*
|
| Operating Temperature |
-30℃ ~ +75℃ |
| Electrical Features |
|
| NR |
FDD:220Mbps(DL)/120Mbps(UL)
TDD:200Mbps(DL)/100Mbps(UL)
|
| LTE |
FDD:200Mbps(DL)/75Mbps(UL)
TDD:200Mbps(DL)/50Mbps(UL)
|
| Protocol |
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
| Firmware Upgrade |
USB |
| RIL |
Android 4.x~13.x |
| PCIe MHI |
Windows 8.1/10/11;Linux 2.6~6.7 |
USB RNDIS
|
Microsoft Windows Win7/Win8/Win10/Win11/Linux/Android
|
USB MBIM
|
Windows 10/11; Linux 3.18~6.7
|
USB GobiNet
|
Linux 2.6~6.7
|
USB QMI_WWAN
|
Linux 3.4~6.7
|
Certifications
|
|
Regulatory
|
CCC*/ NAL*/ SRRC*
|
