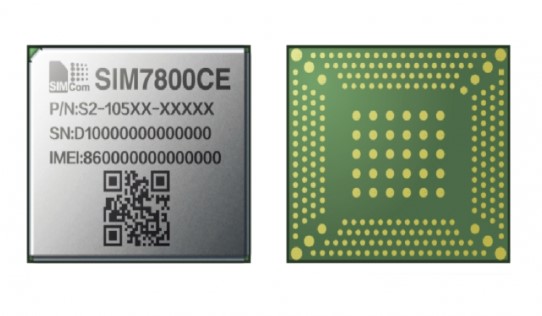

SIMCom SIM7800CE LGA, 282-PIN LTE Cat 4 Module

Imagine a device that never loses its connection, even when you move from city streets to remote fields. The SIMCom SIM7800CE LGA, 282 PIN LTE Cat 4 Module is that reliable link. It is a compact cellular board that brings high-speed LTE, 3G, and 2G connectivity to any embedded system. If you have ever struggled with dropped data or slow uploads in a critical project, this module solves that pain by delivering fast, stable internet wherever the network exists.

SIMCom SIM7800CE LGA, 282 PIN LTE Cat 4 Module

Many makers need a single board that can talk to cellular towers, handle GPS, and survive harsh weather. Without such a board, they must add many separate chips, increasing cost and design time. This module removes the guesswork. It supports LTE Cat 4 speeds, multiple frequency bands, and built-in GNSS, so you get both data and location in one package. The result is a simpler design, lower power use, and a product that works reliably in demanding environments.

Key Features

• LTE-FDD bands B1/B3/B5/B8 and LTE-TDD bands B38/B39/B40/B41.
• 3G WCDMA (B1/B8) and TD-SCDMA (B34/B39) for fallback.
• 2G GSM 900/1800 MHz for legacy networks.
• GNSS support for GPS, GLONASS, BeiDou, and Galileo.
• Supply voltage 3.3 V ~ 4.2 V with low idle current.
• USB, UART, SPI, I2C, SDIO, and Ethernet interfaces for flexible integration.
• Secure boot, TrustZone, and SELinux protect your data.
• FOTA and USB driver support for easy firmware upgrades.
• Audio record/play, TTS, and DTMF for voice applications.
• eCall and Jamming Detection meet safety regulations.

Specifications
