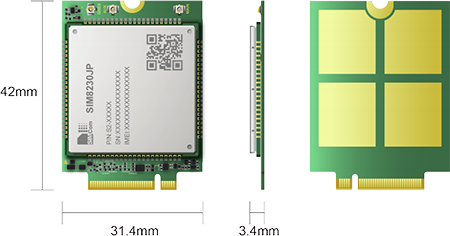

SIMCom SIM8230JP-M2, Multi-Band 5G NR/LTE-FDD/LTE-TDD module
SIM8230JP-M2 is a Multi-Band 5G NR/LTE-FDD/LTE-TDD module which supports R17 5G SA.
With a rich protocols, it is integrated with interfaces such as USB2.0, GPIO etc. This module provides applications with great flexibility and ability of integration.
SIM8230JP-M2 adopts M.2 form factor. AT commands of SIM8230JP-M2 are compatible with SIM7600/8200/8260 series modules. This also reduces costs for customer and shortens time to market.
It is designed for applications that need huge data transmission in various wireless situations. Due to its high efficiency, security and flexibility, this module suits various applications.
Advantages
- M.2 form factor with various interfaces
- Medium data transmission
- AT commands of SIM8230JP-M2 compatible with SIM7600/8200/8260 series modules
Specifications:
| Product |
SIM8230JP-M2 |
| Form Factor |
M.2 |
| Dimensions(mm) |
42.031.43.4 |
| Frequency Bands |
|
| 5G SA |
n3/n28/n41/n77/n78/n79 |
| LTE-FDD |
B1/B3/B5/B7/B8/B18/B19/B26/B28 |
| LTE-TDD |
B41/B42 |
| GNSS |
support |
| Temperature |
-30℃ ~ +75℃ |
| Electrical Features |
|
| Supply Voltage(V) |
3.15 ~ 4.4, type3.8 |
| Data Transfer |
|
| NR |
FDD:220Mbps(DL)/120Mbps(UL) TDD:200Mbps(DL)/100Mbps(UL) |
| LTE |
FDD:200Mbps(DL)/75Mbps(UL) TDD:200Mbps(DL)/50Mbps(UL) |
| Software Features |
|
| Protocol |
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0 |
| TLS |
Supported |
| File System |
Supported |
| FOTA |
Supported |
| VoLTE/VoNR |
Supported |
| Android RIL |
Android 7/8/9/10/11/12/13 |
| USB Driver |
Microsoft Windows Win8/Win10/Win11/Linux/Android |
| MBIM |
Win8*/Win10*/Win11* |
| NDIS |
Linux/Win8/Win10/Win11 |
| Firmware Upgrade |
USB |
| Interfaces |
|
| SIM Card |
1.8V/2.95V |
| PCIE |
PCIe Gen 2 1Lane |
| USB |
Supported |
| I2S/PCM |
Supported |
| I2C |
Supported |
| Diversity Receiver |
Supported |
| Certifications |
|
| Regulatory |
RoHS/REACH category in sepreate row |
