Imagine a car that can talk to the network instantly, even in a tunnel or a busy city street. The SIMCom SIM8800CE, 5G Sub-6G & C-V2X Module for Automotive is a compact radio that brings that ability to any vehicle. Car makers and system integrators often struggle with slow data links, unreliable positioning, and missing V2X communication, which can delay safety updates or limit infotainment features. This module solves those gaps, giving you fast 5G speeds, LTE fallback, and built-in C-V2X support in one rugged package.

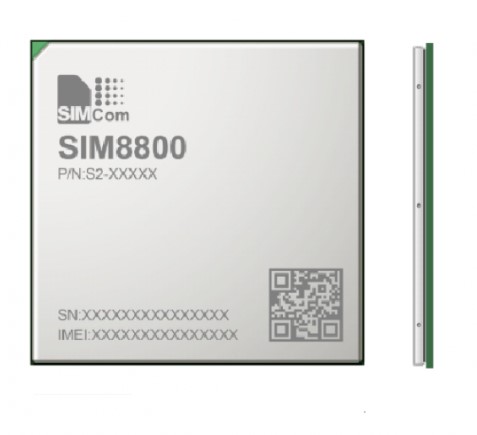

SIMCom SIM8800CE, 5G Sub-6G & C-V2X Module for Automotive
Modern vehicles need a reliable link to the cloud and to nearby cars. Without a strong connection, over-the-air updates arrive late, driver assistance data is delayed, and emergency calls may fail. This problem matters because every second of latency can affect safety and user experience. The SIM8800CE answers the need with multi-band 5G Sub-6G, LTE fallback, and dedicated C-V2X channels, ensuring low-latency, high-throughput communication even in challenging environments.
Key Features
- Supports 5G NR bands n1/n3/n28/n41/n78/n79.
- LTE-FDD and LTE-TDD bands for global coverage.
- Integrated GNSS for precise positioning.
- Secure boot, TrustZone and SE-Linux protect firmware.
- eCall, TLS and SSL ready for emergency and secure data.
- Audio record/play, TTS and DTMF for voice services.
- USB 3.1/2.0 and PCIe interfaces for high-speed data transfer.
- Multiple UART ports and I2C/SPI for flexible peripheral connections.
- FOTA and USB driver support across Windows, Linux and Android.
- Power supply 3.3 V ~ 4.3 V fits standard automotive power rails.
Specifications:
| General |
|
| Product |
SIM8800CE |
| Form factor |
LGA, 524 PIN |
| Dimensions(mm) |
54.5 × 53.0 × 3.45 |
| Frequency Bands |
|
| 5G NR |
n1/n3/n28/n41/n78/n79 |
| LTE-FDD |
B1/B3/B5/B7/B8 |
| LTE-TDD |
B34/B38/B39/B40/B41 |
| WCDMA |
B1/B8 |
| GSM |
900/1800 MHz |
| GNSS |
Supported |
| Temperature |
|
| Temperature |
-40℃ ~ +85℃ |
| Electrical Features |
|
| Supply Voltage(V) |
3.3V ~ 4.3V |
| Power Consumption (5G NR) |
TBD |
| Power Consumption (LTE-FDD) |
TBD |
| Power Consumption (LTE-TDD) |
TBD |
| Power Consumption (WCDMA, DRX=9) |
TBD |
| Power Consumption (GSM, BS_PA_MFRMS=2) |
TBD |
| Data Transfer |
|
| 5G NR(Mbps) |
2400(DL)/900(UL) |
| LTE(Mbps) |
1000(DL)/200(UL) |
| HSPA+(Mbps) |
42(DL)/5.76(UL) |
| WCDMA(Kbps) |
384(DL)/384(UL) |
| GPRS/EDGE(Kbps) |
236.8(DL)/236.8(UL) |
| Software Features |
|
| Protocol |
TCP/ UDP/ PPP/ PING/ FTP(S)/ HTTP(S)/ SMTP/ SSL/ TLS/ MMS/ NTP/ FILE/ QMI |
| eCall |
Supported |
| TLS |
Supported |
| File System |
Supported |
| Audio Record/Play |
Supported |
| TTS |
Supported |
| DTMF |
Supported |
| LBS |
Supported |
| FOTA |
Supported |
| Jamming Detection |
Supported |
| Security |
Trust Zone/ Secure Boot/ SE-Linux |
| Android RIL |
Android 5.0/6.0/7.0/8.0/9.0 |
| USB Driver |
Windows 7/8/8.1/10, Linux 2.6~5.0, Android 4.x/5.x/6.x/7.x/8.x/9.x |
| WWAN (RNDIS)/ECM |
Supported |
| MBIM |
Win8/Win10 |
| NDIS |
Linux/Windows 7/8/10 |
| Open Linux |
Supported |
| Firmware Upgrade |
USB/FOTA |
| Wi-Fi/BT |
2.4G/5G/BLE5.2 |
| Interfaces |
|
| SIM Card |
1.8V/3.0V |
| UART |
3*UART |
| USB |
1* USB 3.1/2.0 |
| PCIe |
Supported |
| PCM |
Supported |
| I2S |
Supported |
| ADC |
*2 |
| SDIO |
SDIO3.0 (200MHz Max) |
| SPI |
Supported |
| I2C |
Supported |
| SGMII |
Supported |
| Diversity Receiver |
Supported |
| Certification |
|
| Regulatory |
3C/SRRC/NAL*/RoHS*/REACH* |
