Tired of heavy desktops that stay on a desk while you move around a factory or a field site? The SINSMART 17.3inch 12/14th Core Flip-down industrial portable computer lets you take full-size power with you. It is built for tough environments where a normal laptop cannot survive. If you need reliable computing on the go, this machine solves the problem.

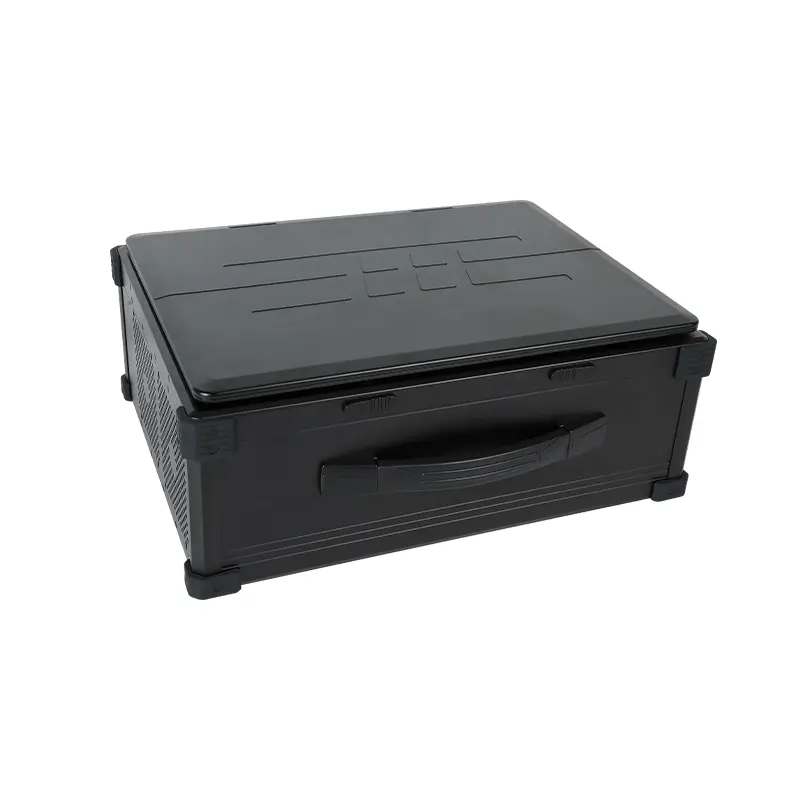

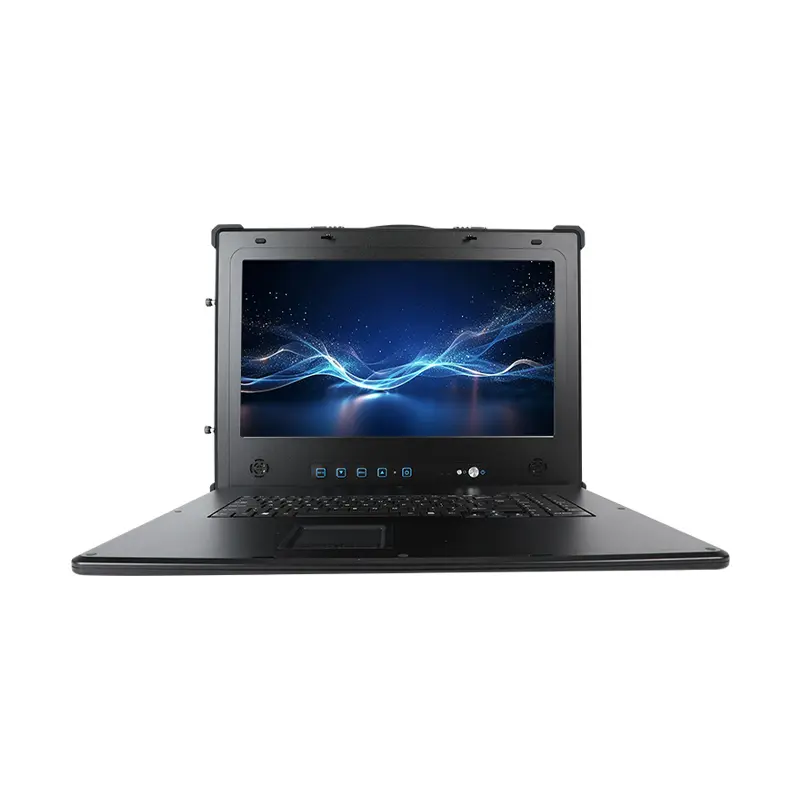

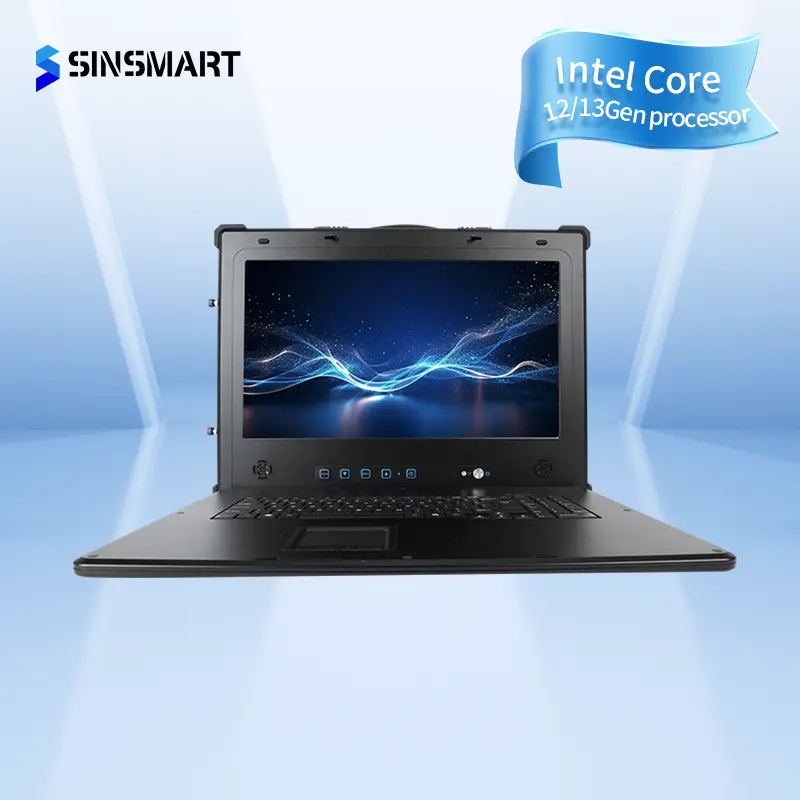

SINSMART 17.3inch 12/14th Core Flip-down industrial portable computer
Many workers struggle with slow, fragile devices that cannot handle the data load of modern machines. When a computer crashes, production stops and costs rise. This SINSMART model removes that risk. It packs a 12th- or 14th-generation Intel Core processor, a bright anti-glare screen, and dozens of ports in a rugged flip-down case. You get a desktop-level engine that fits in a portable chassis, so work never pauses.
Key Features
- 17.3-inch 1920 x 1080 anti-glare screen, 500 cd/m brightness.
- Intel LGA1700 socket supports 12th-, 13th-, 14th-gen Core/Pentium/Celeron up to 8-core, 65 W.
- 2 x DDR4 3200 MHz slots, up to 64 GB memory.
- 3 x SATA3.0 drives + 1 x M.2 2242/2280 (PCIe x2/SATA) storage options.
- Dual Gigabit Ethernet (Intel I225-V, I219-V) for reliable network links.
- Up to 6 COM ports (RS232/RS485) for industrial equipment.
- 8 USB ports (4 USB 3.0, 4 USB 2.0) plus optional vertical USB 2.0.
- PCIe expansion: 1 x PCIe x16, 3 x PCIe x4, 3 PCI slots.
- 100-key keyboard with touchpad, built-in PS/2 mouse port.
- Standard 850 W power supply for stable operation.
- Runs Windows 10/11 or Linux, ready for any software ecosystem.
- Dimensions 455 x 339 x 180 mm, weight about 11 kg, black industrial chassis.
Specifications
| Model |
SIN-1417AD-H610 |
| CPU |
LGA1700 architecture, supports Intel 12/13/14th generation Core/Pentium/Celeron desktop processors,
supports up to TDP8+4 Core 65W
|
| Memory |
2 x Non-ECC U-DIMM memory slots, DDR4 3200 MHz, supports up to 64G |
| Display |
1 x VGA, 1 x HDMI(for connecting to the display), 1 x DVI |
| Display |
1 x 17.3-inch display, resolution 1920 x 1080, brightness 500cd/m², with anti-glare film |
| Keyboard |
100-key keyboard + touchpad |
| Storage |
3 x SATA3.0, 1 x M.2 M-key 2242/2280 (PCIe x 2/SATA, default SATA, supports SATA SSD) |
| Network |
1 x Intel I225-V Gigabit Ethernet port, 1 x Intel I219-V Gigabit Ethernet port |
| Expansion |
1 x PCIeX16 slot, 3 x PCIeX4 slot, 3 x PCI slot |
| COM |
Up to 6 x COM (1 x RS232, 3 x RS232 internal lead, 2 x RS232/485 internal lead) |
| USB |
Up to 8 x USB [4 x USB3.0, 4 x USB2.0 (2 x internal lead)], and 1 x USB2.0 vertical internal optional |
| I/O interface |
1 x PS/2 keyboard and mouse interface, 2 x USB2.0, 4 x USB3.0,1 x VGA, 1 x DVI-D,
1 x HDMI (for connecting to display), 1 x COM, 2 x LAN, 3 x audio interface
|
| Audio |
Mic, Line out, Line in |
| Sound card |
Realtek Audio HDA Codec |
| Power supply |
Standard 850W |
| Dimensions |
455 x 339 x 180mm (S x D x H), chassis color default black |
| Weight |
About 11kg |
| System |
Windows10/11, Linux |
