Description

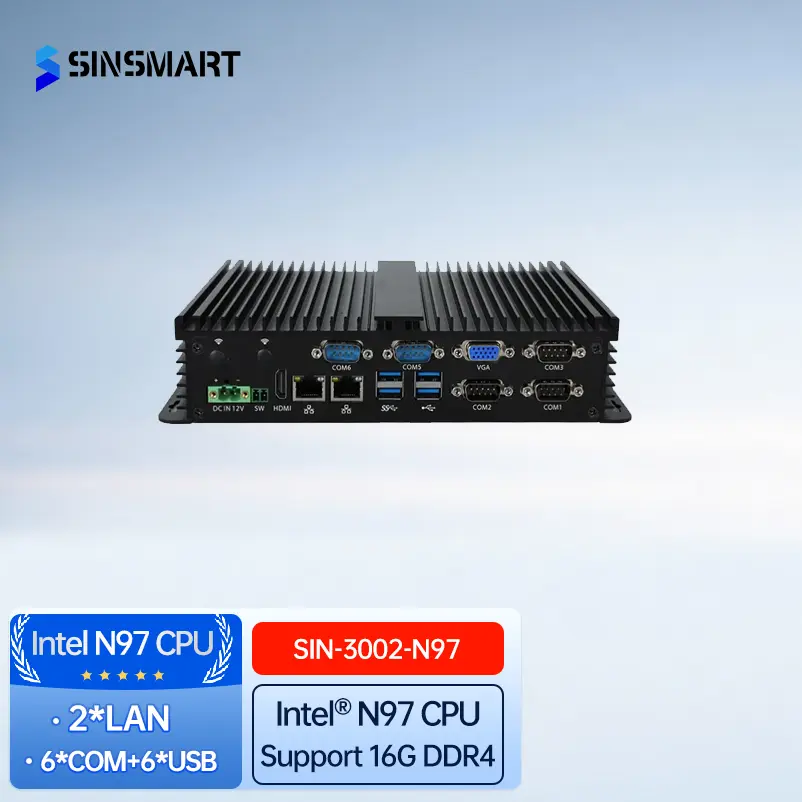

The SINSMART industrial embedded fanless PC is built on Intel Alder Lake-N97 quad-core processor, turbo frequency 3.6GHz, TDP 12W and supports 1*DDR4 SO-DIMM slot, 3200MHZ, supports 16GB, making it suitable for industrial automation, edge computing, and embedded control applications. The system is designed with a compact rugged structure and supports Windows 10/11, Linux operating systems for flexible deployment.
The platform provides rich connectivity, expansion, and industrial I/O interfaces for stable operation in demanding environments.
Key Features
-
Intel Alder Lake-N97 quad-core processor, turbo frequency 3.6GHz, TDP 12W
-
Supports 1*DDR4 SO-DIMM slot, 3200MHZ, supports 16GB
-
Fanless industrial embedded design
-
Windows 10/11, Linux support
-
Compact industrial chassis design
I/O and Expansion
-
1VGA port, 1HDMI port
-
2*Realtek Gigabit network port
-
4USB3.0, 2USB2.0
-
2RS232/485, 4RS232 COM
-
1*M.2 B Key 2242/3052 slot (PCIe/USB3.0+USB2.0, default PCIe extension+USB2.0, supports 5G+4G)
-
1*M.2 E Key 2230 slot (PCIe+USB2.0, default WIFI+Bluetooth)
-
1*full-size SIM card slot
-
8bit GPIO
Interfaces
Front panel I/O includes 110P 3.5mm GPIO terminal, 1power button, 1reset button, 2indicator light, 2audio interface, 1RS232, 2USB2.0.

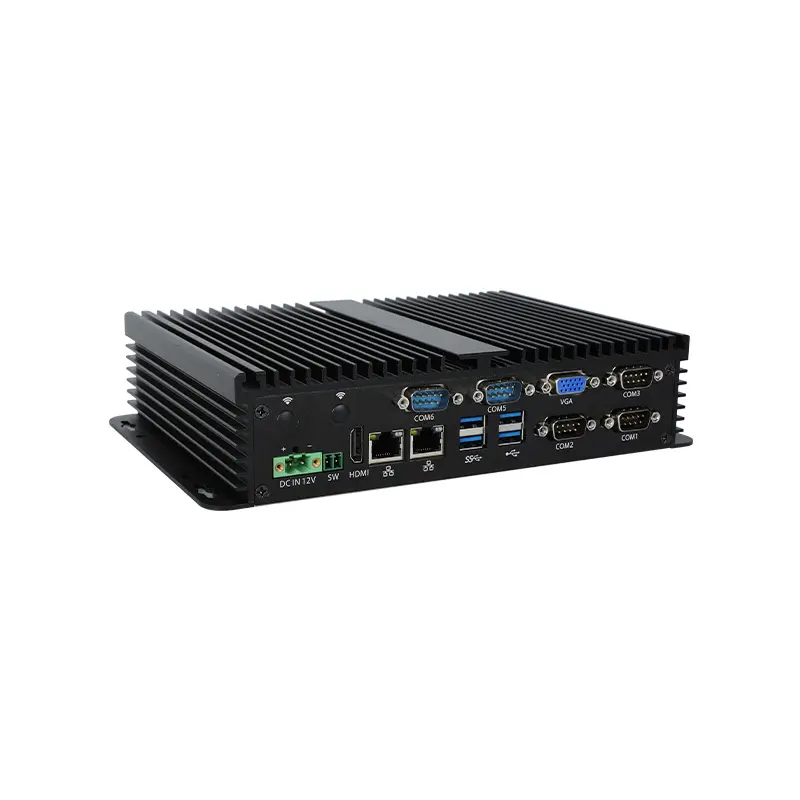

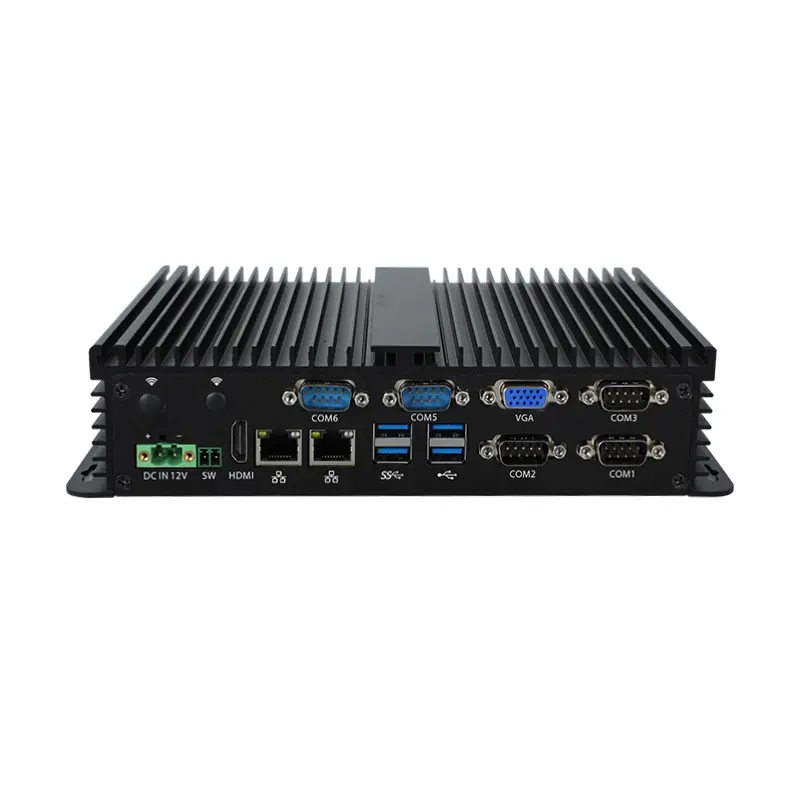

Rear panel I/O includes 1DC IN, 12P 3.81MM POWER SWITCH TERMINAL BOX, 1HDMI, 1VGA, 2GIGABIT NETWORK PORT, 4USB3.0, 5COM PORT, 2*ANTENNA RESERVED HOLE.
Audio & Power
Audio supports Line Out, MIC.
Power supply is DC IN 12V power input port, Phoenix terminal port.
Mechanical Design
size 214 (with ears 236)15652mm (widthdepthheight)
Specification
| Category |
Specification |
| CPU |
Intel Alder Lake-N97 quad-core processor, turbo frequency 3.6GHz, TDP 12W |
| Memory |
Supports 1*DDR4 SO-DIMM slot, 3200MHZ, supports 16GB |
| Display |
1VGA port, 1HDMI port |
| Hard disk |
1SATA3.0, 1M.2 M Key 2280 slot (PCIeX2/SATA, default is PCIeX1/SATA, supports PCIeX1 NVMe/SATA SSD) |
| Network |
2*Realtek Gigabit network port |
| Expansion |
1M.2 B Key 2242/3052 slot (PCIe/USB3.0+USB2.0, default PCIe extension+USB2.0, supports 5G+4G),
1M.2 E Key 2230 slot (PCIe+USB2.0, default WIFI+Bluetooth), 1*full-size SIM card slot
|
| COM |
2RS232/485, 4RS232 |
| USB |
4USB3.0, 2USB2.0 |
| GPIO |
8bit |
| Front panel I/O |
110P 3.5mm GPIO terminal, 1power button, 1reset button, 2indicator light, 2audio interface, 1RS232, 2*USB2.0 |
| Rear panel I/O |
1DC IN, 12P 3.81MM POWER SWITCH TERMINAL BOX, 1HDMI, 1VGA, 2GIGABIT NETWORK PORT, 4USB3.0,
5COM PORT, 2ANTENNA RESERVED HOLE
|
| Audio |
Line Out, MIC |
| Power supply |
DC IN 12V power input port, Phoenix terminal port |
| Size |
214 (with ears 236)15652mm (widthdepthheight) |
| System support |
Windows 10/11, Linux |
