Description

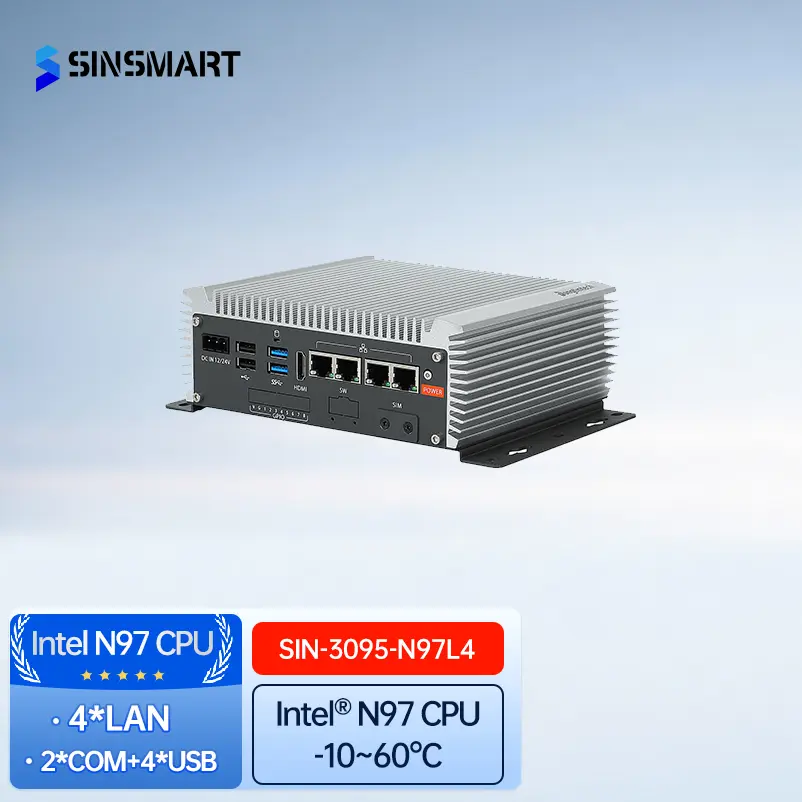

The SINSMART fanless industrial embedded PC powered by the Intel Alder Lake-N97 processor is a compact and reliable computing solution designed for industrial automation, edge computing, and embedded applications. With its efficient quad-core architecture and stable performance, it ensures smooth operation in demanding environments while maintaining low power consumption. The rugged fanless design enhances durability and allows continuous 24/7 operation in industrial settings.
This system integrates advanced connectivity, flexible expansion, and strong industrial-grade I/O support. It includes dual display outputs for multi-screen setups, high-speed USB and COM ports for industrial devices, and dual Intel Gigabit Ethernet ports for stable networking. With support for up to 16GB DDR4 memory and dual M.2 expansion slots, it provides excellent scalability for storage and wireless modules.
Specification
| CPU |
Intel Alder Lake-N97 processor, quad-core, maximum turbo frequency 3.6GHz |
| Memory |
1*DDR4 SO-DIMM single-channel memory slot, 3200MHz, maximum 16G |
| Display |
1HDMI, 1DP |
| Hard disk |
1*M.2 M-KEY 2280 slot (default PCle+PCle/SATA, supports PCleX2 NVMe SSD or PCleNVMe/SATA SSD automatic recognition) |
| Network |
1intel i210 Gigabit Ethernet port, 1intel i225 2.5G Ethernet port |
| Expansion |
1*M.2 E-key2230(PCIE+USB2.0, supporting WIFI+ Bluetooth) |
| COM |
6COM (1RS232/RS485) |
| USB |
4USB3.2 Gen1 5Gbps、 2USB2.0 |
| GPIO |
8-bit (optional) |

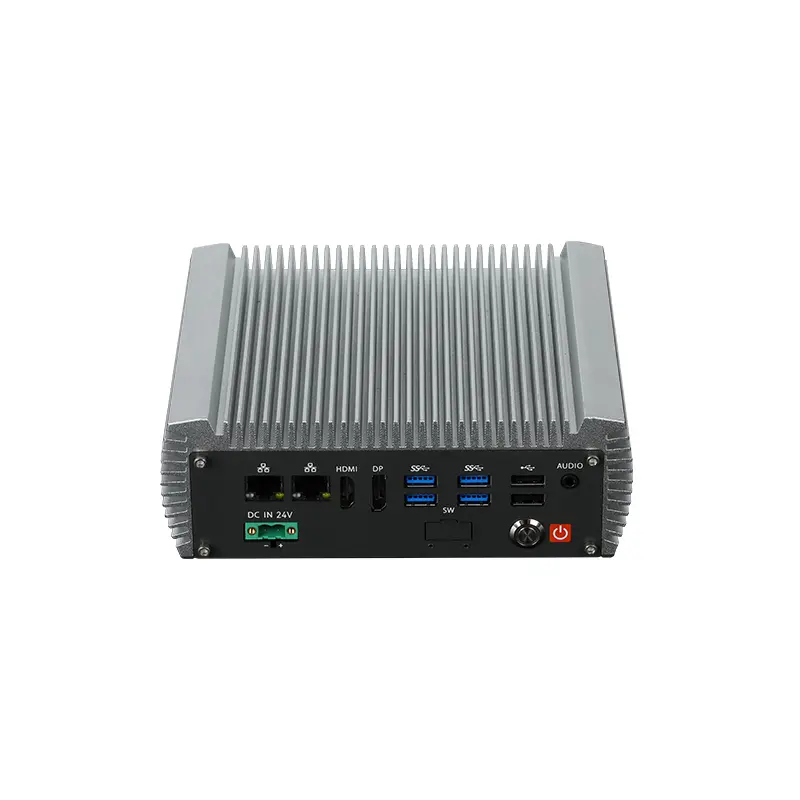

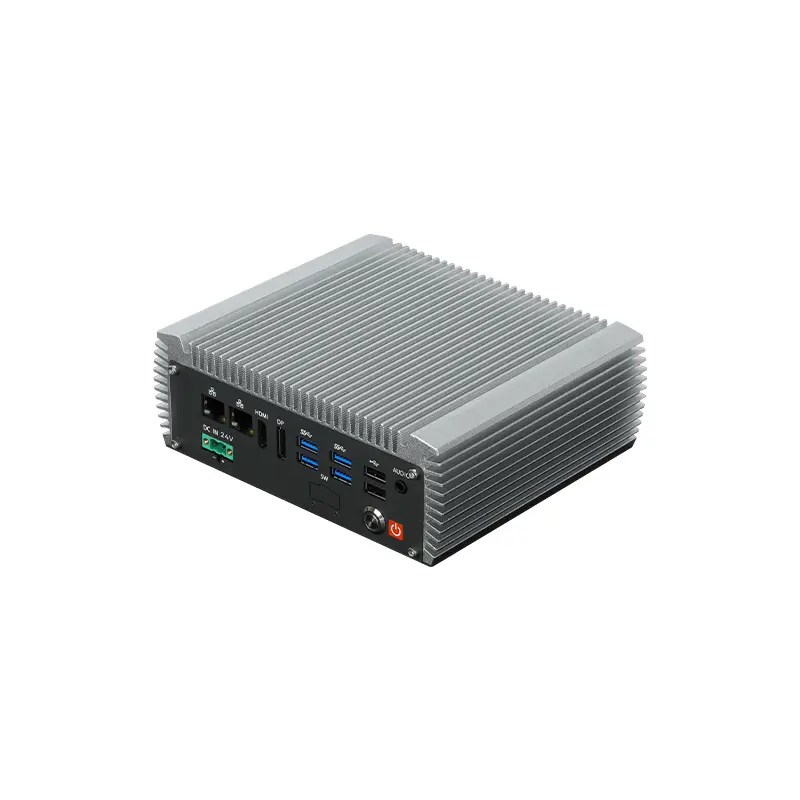

| Front panel interface |
1* Power switch, 2RJ45, 1HDMI, 1DP, 4USB3.2, 2USB2.0,
1DC IN, 1* remote switch with reserved half-hole
|
| Rear panel interface |
6COM, 1 reserved expansion slot, 2* reserved half-hole for antenna |
| Power supply |
1*DC IN 24V power input interface, Phoenix terminal port |
| Audio |
1*3.5mm audio interface (Line-out+Mic in one) |
| sound card |
Realtek Audio HDA Codec |
| Chassis size |
18215063.3mm(width * depth * height) |
| Operating system |
Windows 10/11 ,Linux |
