Description
The SIN-3791-Q670 is an industrial embedded rugged PC built on the Q670 chipset and supports Intel Core 12th, 13th and 14th Gen processors including i3/i5/i7/i9, Pentium and Celeron with LGA1700 socket. It is designed to deliver stable performance for industrial computing, automation, and edge applications with support for up to 64GB DDR4 memory.
It offers rich display, storage, and connectivity options including multiple video outputs, high-speed USB interfaces, and industrial-grade expansion capabilities.
Key Features
-
Supports Intel Core 12th/13th/14th Gen processors (i3/i5/i7/i9/Pentium/Celeron)
-
Q670 chipset platform
-
Up to 64GB DDR4 memory support
-
Multiple display outputs: 1HDMI, 1VGA, 1*DP
-
High connectivity with up to 10 USB ports (USB3.0 + USB2.0)
-
Industrial storage options with SATA and M.2 support
-
Stable multi-LAN networking (3*LAN ports)
-
Rugged chassis design for industrial environments.
I/O and Connectivity
The system integrates a full set of industrial I/O including 3LAN ports, 3COM ports, audio interfaces, USB expansion, and multiple display outputs, ensuring compatibility with industrial control systems, monitoring platforms, and automation setups.
Mechanical Design
Built in a compact industrial chassis of 360235165mm, the system includes front panel indicators, power/reset controls, and a side-access hard drive extraction design for easy maintenance.
System Support
The device supports both Windows 10/11 and Linux, making it suitable for flexible deployment in industrial automation, smart manufacturing, and embedded computing environments.
Specification
| Category |
Specification |
| System Model |
SIN-3791-Q670 |
| Processor System |
|
| CPU |
Intel Core 12th/13th/14th Gen Core i3/i5/i7/i9/Pentium/Celeron |
| Socket |
LGA1700 |
| Chipset |
Q670 |
| Memory |
2*DDR4 supports up to 64G |
| Display |
1HDMI interface, 1VGA interface, 1*DP interface |
| Storage |
12.5inch SATA3.0 SSD, 1M.2M Key slot |
| USB |
6USB3.0, additional 4USB2.0 internal connectors, up to 10*USB ports |
| Network |
3*LAN |
| Expansion |
PCIe slots (as per system design) |
| COM |
3*COM |
| Audio |
2*audio interface |
| Front I/O |
1power button, 1reset button, 1power indicator light, 1hard disk indicator light |

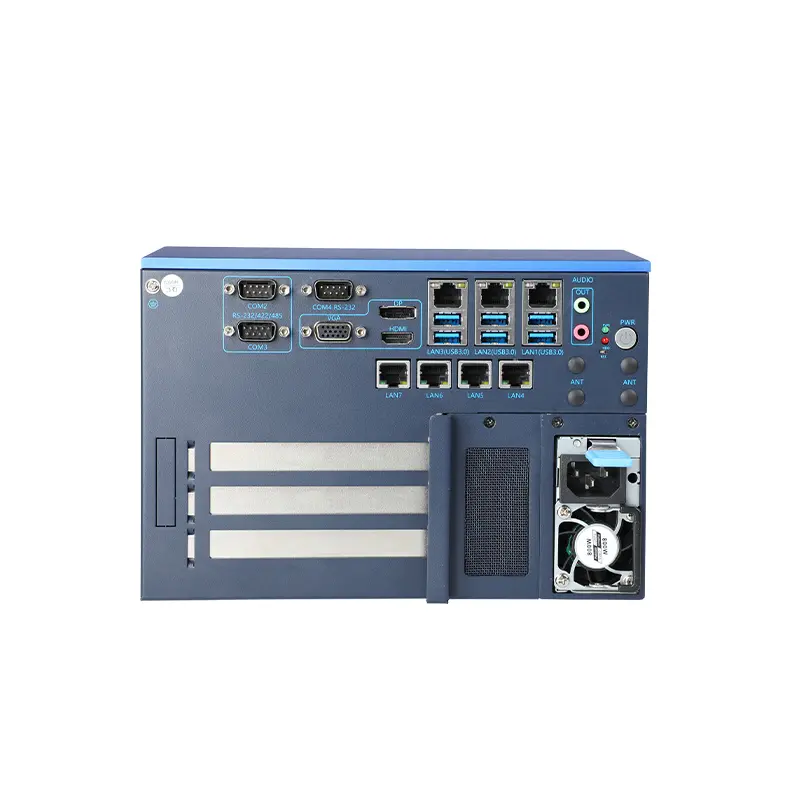

| Rear I/O |
1VGA, 1DP, 1HDMI, 3LAN, 6*USB3.0 |
| Storage Access |
1*2.5-inch hard disk extraction box (side) |
| Chassis Size |
360235165mm |
| System Support |
Windows10/11, Linux |
