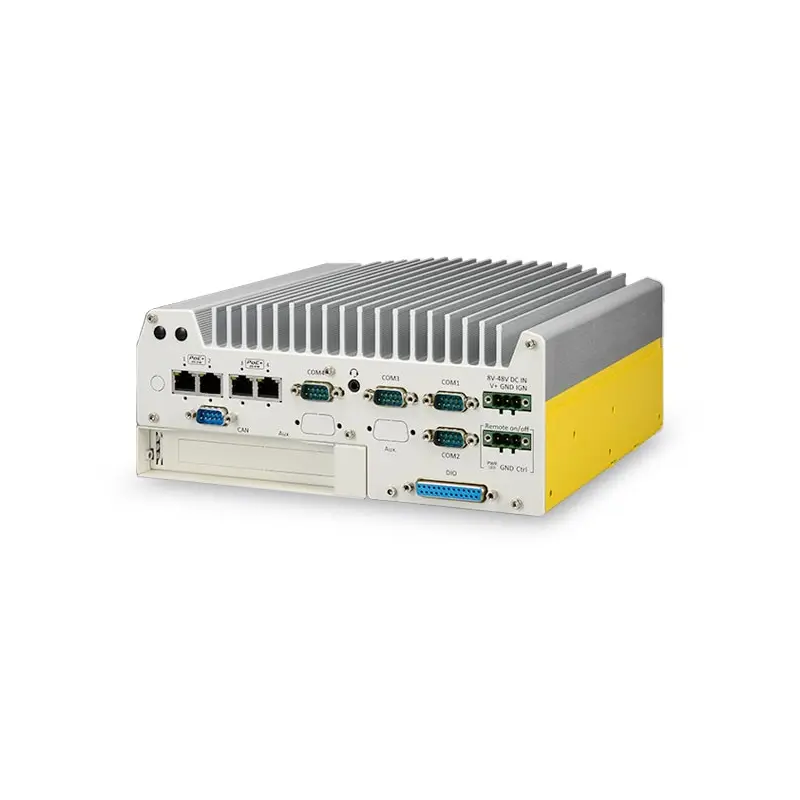

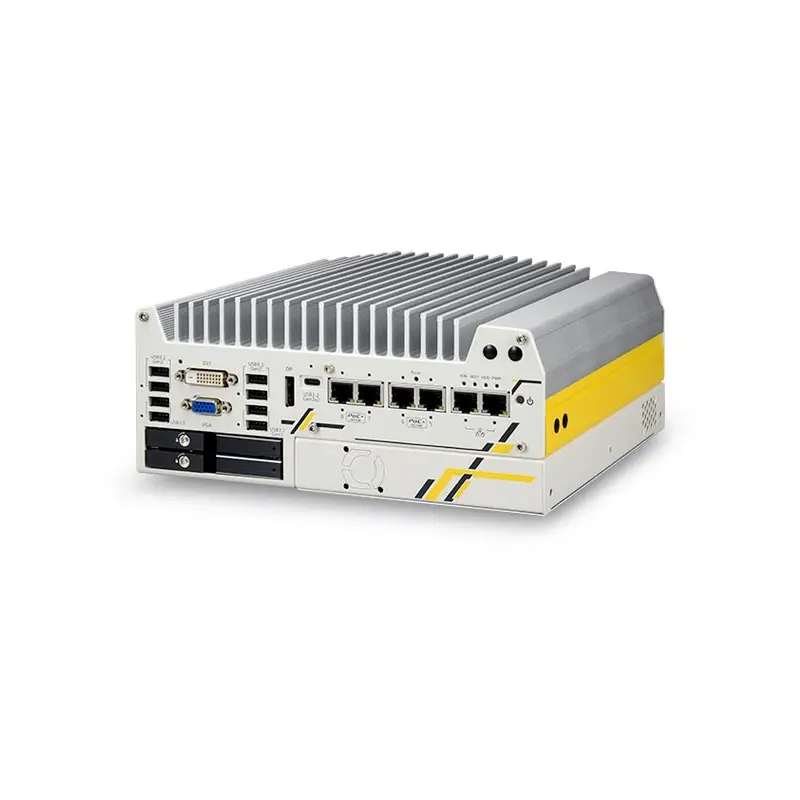

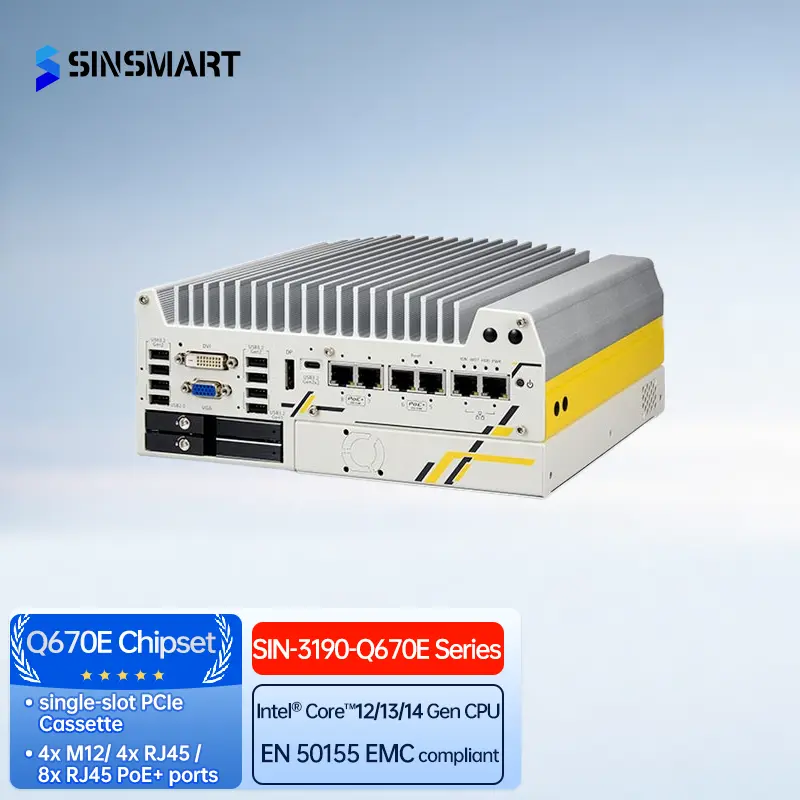

The SINSMART industrial embedded fanless mini PC is a high-performance and Industrial in-vehicle embedded PC. It features a wide range of I/O interfaces.With dual Ethernet ports featuring a screw-lock design, 4x IEEE 802.3at PoE+ ports, and an isolated CAN 2.0 port. It also supports multiple USB interfaces and comprehensive serial communication options including RS-232/422/485 protocols, making it suitable for complex industrial setups.
For display and multimedia capabilities, the device supports VGA, DVI-D, and DisplayPort outputs with resolutions up to 4096 x 2304, along with a 3.5 mm audio jack for mic-in and speaker-out. The system is built to deliver flexibility in storage and expansion, while maintaining durability in harsh environments.
Key Features
- Dual hot-swappable 2.5" HDD/SSD bays with RAID 0/1 support
- M.2 2280 (PCIe Gen4 x4) slot for high-speed NVMe SSD
- PCIe x16 Gen3 slot for advanced expansion
- Multiple mini-PCIe and M.2 slots with SIM support for 5G/4G modules
Power & Mechanical
- Wide 8V to 48V DC input via pluggable terminal block
- Built-in ignition control for vehicle-based applications
- Remote control and status output support
- Dimmensions: 240 mm x 225 mm x 103 mm
- Weight: 3.9 kg with wall-mount and damping bracket support
Environmental Reliability
- Operating temperature range from -40°C to 70°C (configuration dependent)
- Storage temperature from -40°C to 85°C
- Humidity tolerance: 10% to 90% (non-condensing)
- Compliant with EN 50155, IEC 61373, and EN 45545-2 standards
Specification
| System Core |
|
| CPU Support |
Intel® 12th, 13th and 14th Gen Core™ processors (LGA1700, 35W/65W TDP), including Core i9, i7, i5,
i3 and Pentium G7400E series
|
| Chipest |
Intel® Q670E platform controller hub |
| Graphics |
Integrated Intel® UHD Graphics 770 (32EU) |
| Memory |
Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| AMT |
Supports Intel vPro/ AMT 16.0 |
| TPM |
Supports dTPM 2.0 |
| I/O Interface |
|
| Ethernet |
1x 2.5G Ethernet by I226-IT/ I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock |
| PoE+ |
4x IEEE 802.3at PoE+ ports |
| CAN |
1x isolated CAN 2.0 port |
| Isolated DIO |
4-CH isolated DI and 4-CH isolated DO |
| USB3.2 |
1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports
in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors
|
| USB2.0 |
2x USB 2.0 ports |
| Video Port |
1x VGA , supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort,
supporting 4096 x 2304 resolution
|
| Serial Port |
2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x RS-232 ports (COM3/COM4) |
| Audio |
1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface |
|
| SATA HDD |
2x hot-swappable HDD trays for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 |
1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| Expansion Bus |
|
| PCI Express |
1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette |
| Mini PCI-E |
1x full-size mini-PCIe socket 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
| M.2 |
1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
1x M.2 2242/3052 B key socket with SIM slot for M.2 4G module
|
| Power Supply |
|
| DC Input |
1x 3-pin pluggable terminal block for 8V to 48V DC input (IGN/ GND/ V+) |
| Ignition Control |
Built-in ignition power control |
| Remote Ctrl. & Status Output |
1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical |
|
| Dimension |
240 mm (W) x 225 mm (D) x 103mm (H) |
| Weight |
3.9 kg |
| Mounting |
Wall-mount with damping bracket |
| Environmental |
|
| Storage Temperature |
-40°C ~ 85°C |
| Humidity |
10%~90% , non-condensing |
