Description

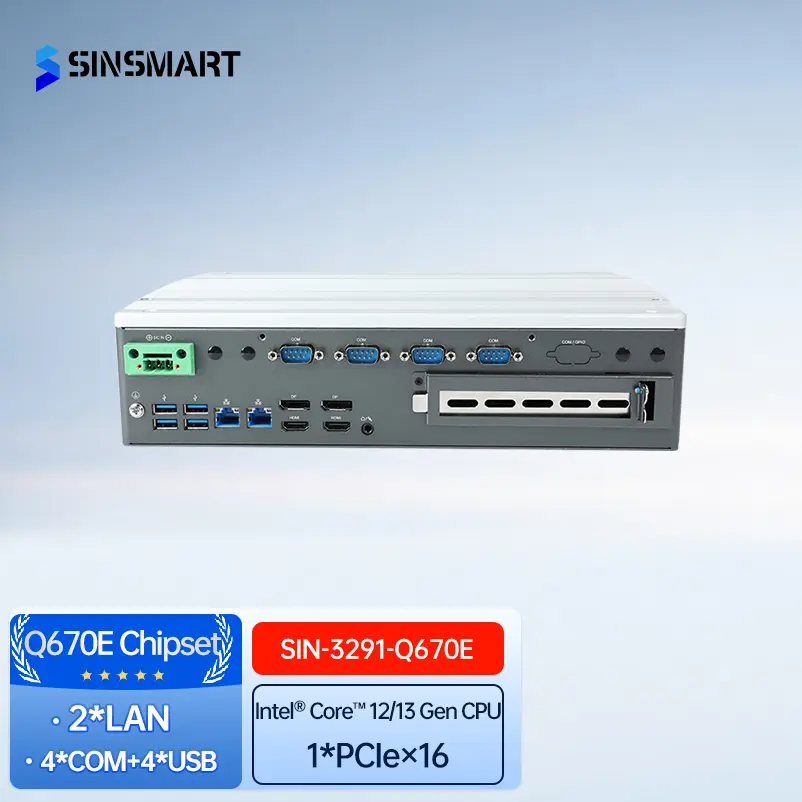

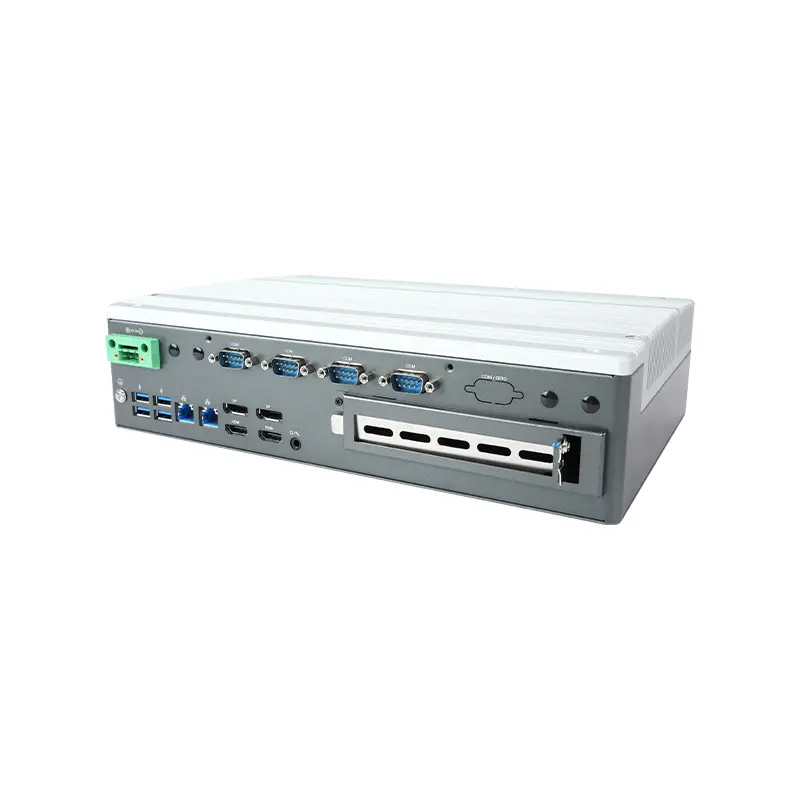

The SIN-3291-Q670E is a high-performance industrial embedded fanless mini PC designed to meet the demanding requirements of modern edge computing and industrial automation environments. Built on the Intel Q670E chipset and supporting Intel 12th and 13th generation LGA1700 processors (Alder Lake-S / Raptor Lake-S), it delivers strong computing capability with a maximum TDP of 65W, making it suitable for continuous industrial operation with stable performance and optional auxiliary cooling support.
It features dual-channel DDR5 memory support up to 64GB, providing high-speed data processing for multitasking and AI-driven applications. For display flexibility, the system offers 2DP and 2HDMI outputs, enabling multi-screen industrial monitoring and visualization. Storage options are highly expandable with 1*2.5” SATA SSD slot and dual M.2 M-Key interfaces supporting NVMe high-speed drives.
The system also provides extensive connectivity and expansion options including PCIe x16 slot, multiple COM interfaces, GPIO (optional 8-bit), and support for 4G/5G and WiFi modules. Its rugged design, rich I/O configuration, and flexible expansion capability make it highly suitable for edge AI computing and industrial integration.
Application Scenarios
- Self-navigation multi-task robot AMR
- C-V2X vehicle networking roadside MEC and vehicle-mounted MDC
- Logistics sorting and 3D visual guidance
- Portable face recognition analysis and intelligent building access control system
Specification
| Chipset |
intel 0670E chipset |
| CPU |
LGA1700 supports intel 12/13 generation Alder LaK-S /Raptor LaK-S Core i9/17/5/13/ Pentium
Celeron processors, with a maximum TDP of 65W and can be paired with auxiliary cooling fans
|
| Memory |
2*DDR5 4800MHz(12th generation)15600MHz(13th generation) dual-channel SO-DIMM memory slots, up to 64G |
| Display |
2DP、 2HDMI |
| Storage |
12.5 "SATA SSD, 1M.2 M-key(2242,SATA CLE Gen.4 x4 interface) supports NVMe. 1*M.2
M-key(2280,SATA Cle Gen.3x4 interface) supports NVMe
|
| Network |
1Intel i225-V2.5GbE 1Intel i225-LM 2.5GbE |
| COM |
2RS232/422/485 internal leads,2RS232 internal leads, 1*RS232 internal leads are optional |
| Expansion |
1PCIEx16(GEN4) supports single-slot expansion cards, 1M.2 E-key(2230, PCle x1/USB2.0 interface) supports
CNVio and can be used for WIF1, 1M.2 B-key(3042, 13052) USB3.1/USB2.0/PClex1 interfaces are used for
4G/5G modules and 1SIM card slots
|
| USB |
4USB3.2(Gen.2), 4USB2.0 internal lead-out |
| GPIO |
8-bit is optional |
| Rear panel interface |
|
