The CPU of Rugged Embedded Computer is equipped with a 1 I7-13700 chip, and the main frequency power consumption of this chip can reach 65W. It is equipped with heat dissipation silicone grease chips, which are point-to-point corresponding to the heating components on the motherboard. The heat is led to the heat dissipation dorsal fin through them. The heat dissipation efficiency is very high and stable. Two 32G DDR notebook memory chips and a 128G M.2 2242 solid state drive are installed.
The ports on the front panel have 6 network ports, of which 5 are 2.5G network ports and 1 is gigabit network port. These 4 ports here also support POE function. One Type-c interface, which is rare on Industrial Embedded PC is 1 DP here, DVI interface and VGA interface here. Then here are 8 USB 3.2 interfaces, of which 5 transmission rates are 5G per second and 5 are 10G per second. Interface on the rear panel, 4 serial ports, an 8-48V DC input port, and a remote control port.
Operating temperature:35W CPU -25 ℃-70 ℃, 65w CPU -25 ℃-70 ℃ (35w TDP) -25 ℃-50 ℃ (65w TDP).
Specification
| Chipset |
Intel®Q670E chipset |
| CPU |
Intel® Core™12th CPU（35W/65W)LGA1700 |
| Memory |
2*memory slots,support 64G DDR5 4800 SDRAM |
| Display |
1*VGA port, resolution 1920x1200,1*DVI-D port, resolution 1920x1200,1*DP port, resolution 4096x2304 |
| Hard disk |
2*SATA ports, connected to 2.5-inch hard disk, supports RAID 0/1 1 M.2 2280 M key
NVMe slot (PCle Gen4x4), supports NVMe SSD
|
| Extension |

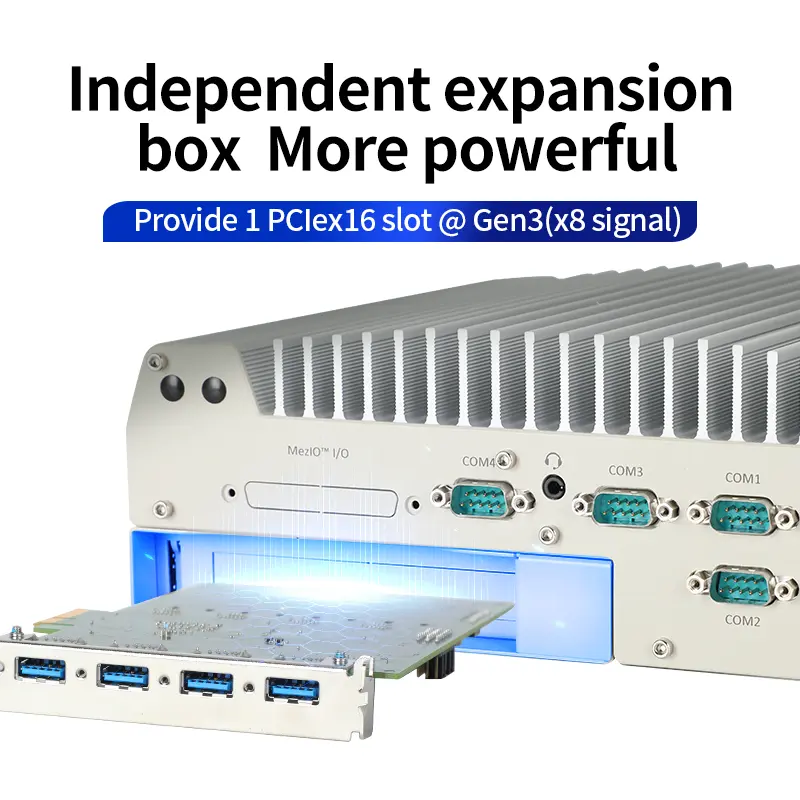

The expansion box provides 1*PClex16 slot @ Gen3(x8 signal), 1*full-length mini
PCIe slot, 1*M.2 2242/3052 B key slot, and provides SIM card slot for installing
M.2 5G/4G modules) expandable I/O modules (empty as standard)
|
| Net port |

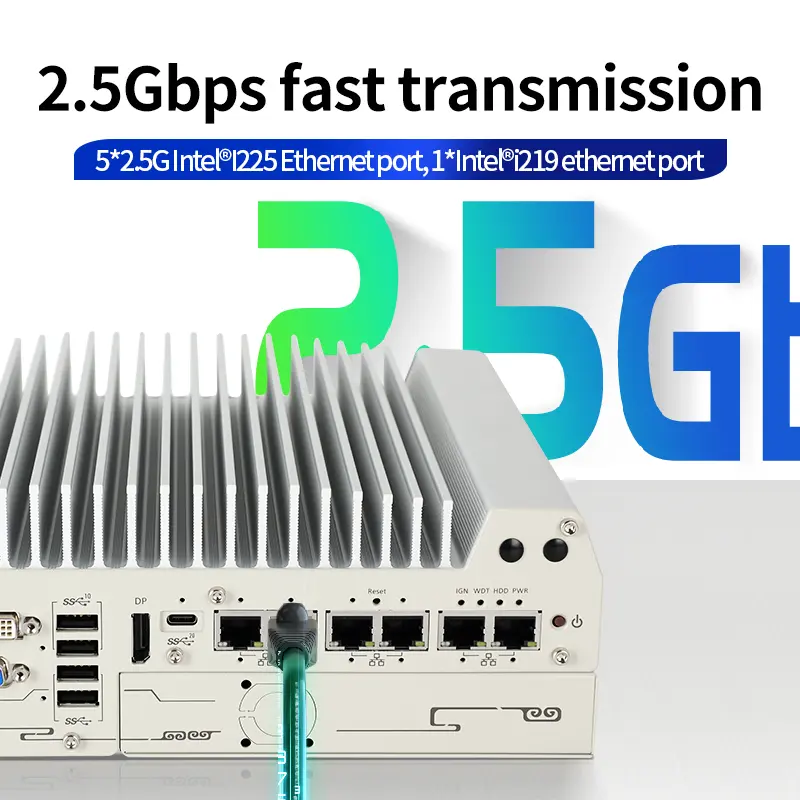

5*2.5G Ethernet ports use i255 chips，1*Gigabit Ethernet port uses i219 chip |
| COM |
2*software programmable RS-232/422/485 COM ports 2*3-wire RS-232 COM ports |
| USB |

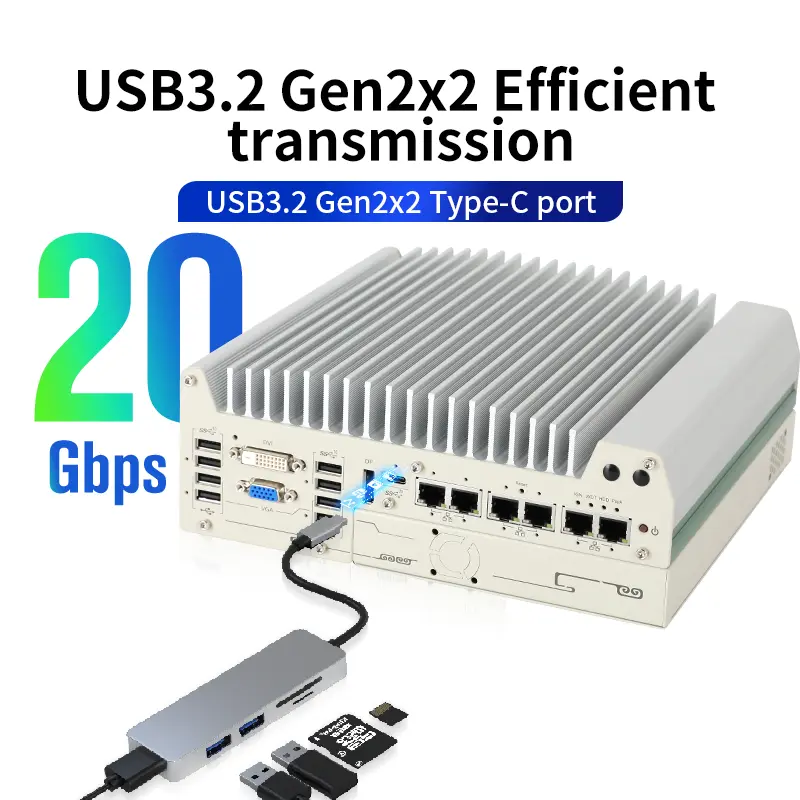

1*USB3.2Gen 2 x2(20Gbps) port(Type-C),4* USB3.2Gen 2 x1(10Gbps) port (Type-A),2*USB3.2Gen 1x1(5Gbps)
port (Type-A),2*USB2.0 port (Type-A)
|
| Audio |
1 microphone input and speaker output (3.5mm jack) |
| power supply |
1*3 core plug in terminal block,Provide 8-48V DC input 1*3core plugin
terminal block,Provide remote control and PWR LED output
|
| Chassis Size |
240 (width) x225 (depth) x90 (height) mm |
| Operating temperature |
35W CPU -25 ℃-70 ℃, 65w CPU -25 ℃-70 ℃ (35w TDP) -25 ℃-50 ℃ (65w TDP) |
| Storage temperature |
-40 ℃-85 ℃ |
| weight |
4.4kg(IncludingCPU,GPU, memory and hard disk) |
