Description
The system is based on Intel@H420E Chipset and supports Core 10/11 generation processor (up to 125W power consumption). It is equipped with 2*DDR4 memory DIMM 2933/3200 memory slots support up to 64G. For display, it provides 1VGA, 2HDMI ports. Storage is supported through 4SATA III ports, 1M.2 Mkey (co-configured with SATA4).
The system includes expansion options with 1PCle16, 1PCle4, 5*PCl slots. Networking is available through 2*Intel® Gigabit LAN ports (1 x 2.5G Intel® Gigabit LAN port). It supports serial communication via 6*COM ports(2 x 232/422/485 adjustable,4 x RS232). USB connectivity includes *9USB ports(4USB 3.2Gen1,5USB2.0 (2internal pinout, 1 internal type-A).

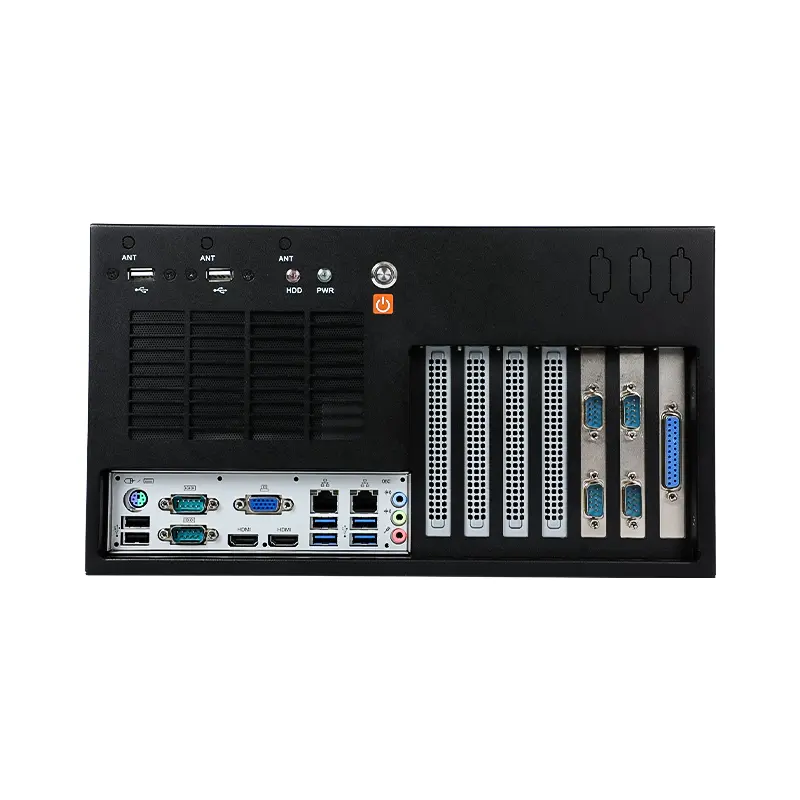

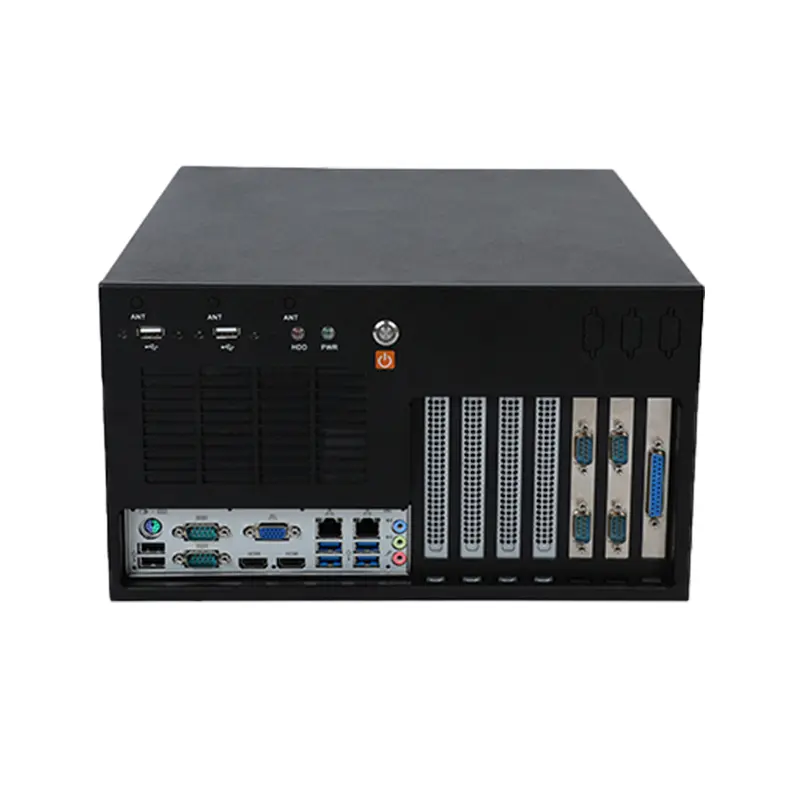

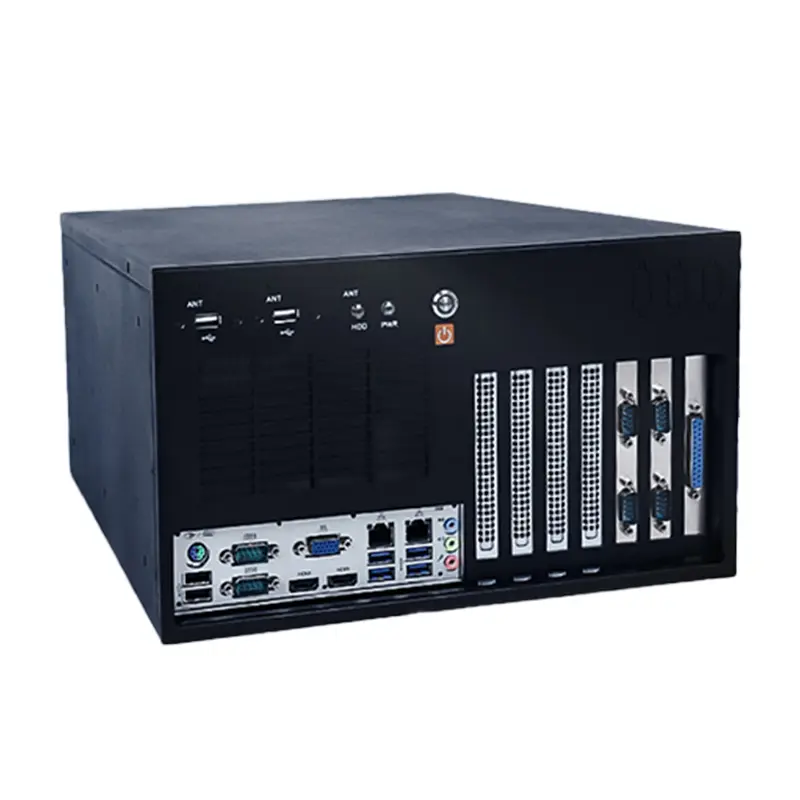

The I/0 front panel interface provides 1*power button, 1 power connector, while the I/0 rear board interface includes 1PS/2 interface, 4USB2.0 interface, 4 USB3.2Gen.1interface 1VGA interface, 2 HDMI interface, 6COM interface, 2RJ45 network port 1line-in interface, 1line-out interface, 1*Mic-in interface. The system dimension is 320380180mm(WDH) with About 9Kg weight. It uses a 300W rated power supply (550W/650W power supply can be replaced) and supports windows 10/11, Ubuntu, Centos.
Specificaton
| Chipset |
Intel@H420E Chipset
|
| CPU |
Core 10/11 generation processor (up to 125W power consumption)
|
| Memory |
2*DDR4 memory DIMM 2933/3200 memory slots support up to 64G |
| Display |
1*VGA, 2*HDMI ports
|
| Hard Drive |
4*SATA III ports, 1*M.2 Mkey (co-configured with SATA4)
|
| Expansion |
1*PCle*16, 1*PCle*4, 5*PCl slots
|
| Network |
2*Intel® Gigabit LAN ports (1 x 2.5G Intel® Gigabit LAN port)
|
| COM |
6*COM ports(2 x 232/422/485 adjustable,4 x RS232)
|
| USB |
9*USB ports(4*USB 3.2Gen1,5*USB2.0 (2*internal pinout, 1* internal type-A)
|
| I/0 front panel interface |
1*power button, 1 power connector |
| I/0 rear board interface |
1*PS/2 interface, 4*USB2.0 interface, 4 *USB3.2Gen.1*interface 1*VGA interface, 2 *HDMI interface,
6*COM interface, 2*RJ45 network port 1*line-in interface, 1*line-out interface, 1*Mic-in interface
|
| Dimension |
320*380*180mm(W*D*H) |
| Weight |
About 9Kg |
| Power supply |
300W rated power supply (550W/650W power supply can be replaced) |
| System Support |
windows 10/11, Ubuntu, Centos |
