Description

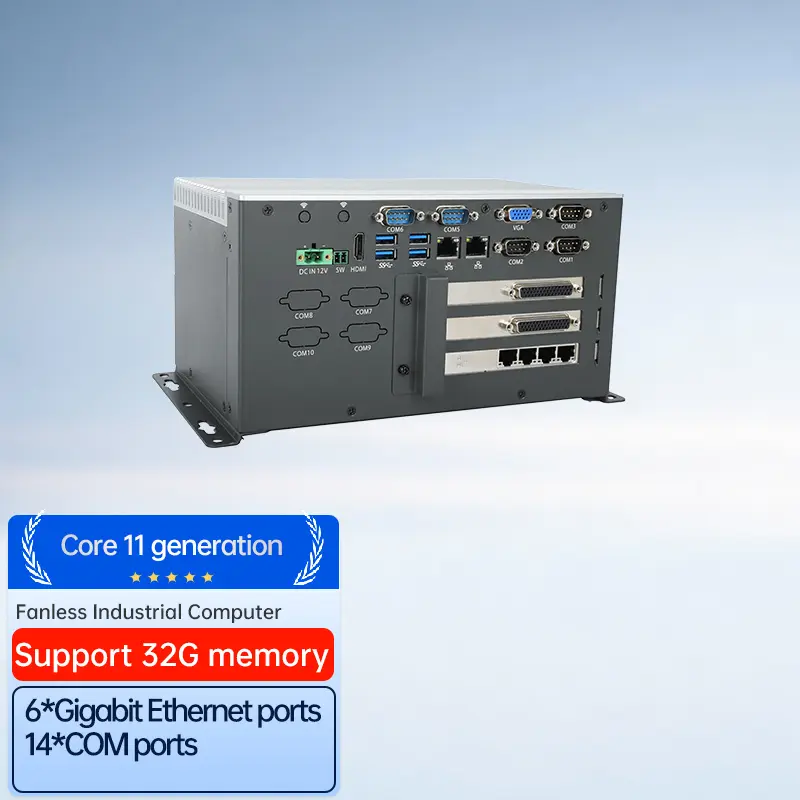

The SINSMART industrial embedded fanless mini PC is powered by an intel@ Corei7-1165G7 quad-core processor and supports 1*DDR4 3200MHz non-ECC SO-DIMM up to 32GB, delivering reliable computing performance. It provides display support through 1VGA interface, 1HDMI interface and 1*LVDS connector, along with storage capability of 1*SATAIII. The system includes 6Gigabit Ethernet ports (2 RJ45 built-in, optional 4*RJ45 network card expansion) for networking.
It offers multiple expansion and connectivity options including 1mini PCle ((PCle+USB2.0, support WIFI+4G/3G) 1mini SATA (SATA, support mSATA), 1M.2 E-key 1M.2M-key, 1PClex16 golden finger (1PClex16+2*PCI) and 14COM ports (2RS232/485 COM1/2, 1 PCI to 4 ports 485 serial ports).
Key Specifications
-
Memory: 1*DDR4 3200MHz non-ECC SO-DIMM up to 32GB
-
USB: 4USB3.0 (TYPE-A), 2USB2.0 (TYPE-A), 2USB2.0 (Header), 2USB2.0 (Wafer)
-
GPIO: 1*GPIO port
I/O Interfaces
-
Front panel I/0: 1GPIO, line-out, Mic, 1 COM, 2usb2.0, 1power button, 1reset button, 2*indicator lights
-

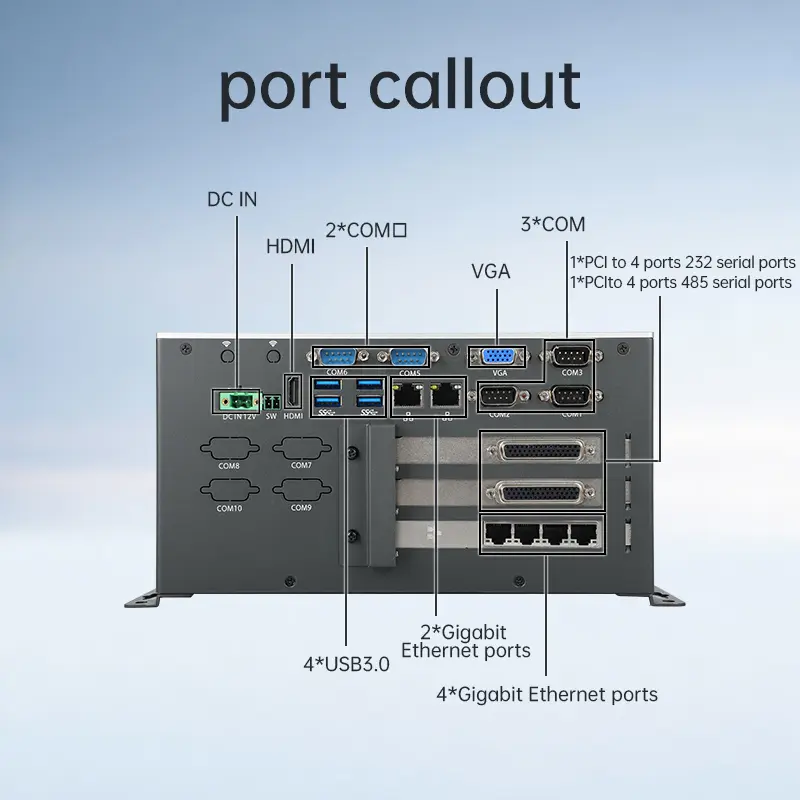

rear panel I/0: 1DC IN, 12P 3.5MM power button junction box, 1HDMI, 2network ports, 4USB3.0, 1VGA, 5COM ports, 1PCI to 4ports 232 serial ports, 1*PCI to 4 485 serial ports, 4 *Gigabit Ethernet ports.
Additional Features
-
Audio: line-out, Mic
-
power supply: DCIN12V input
-
Chassis size: 270.2x155.5x131.5mm with bracket (widthdepthheight), about 3Kg
-

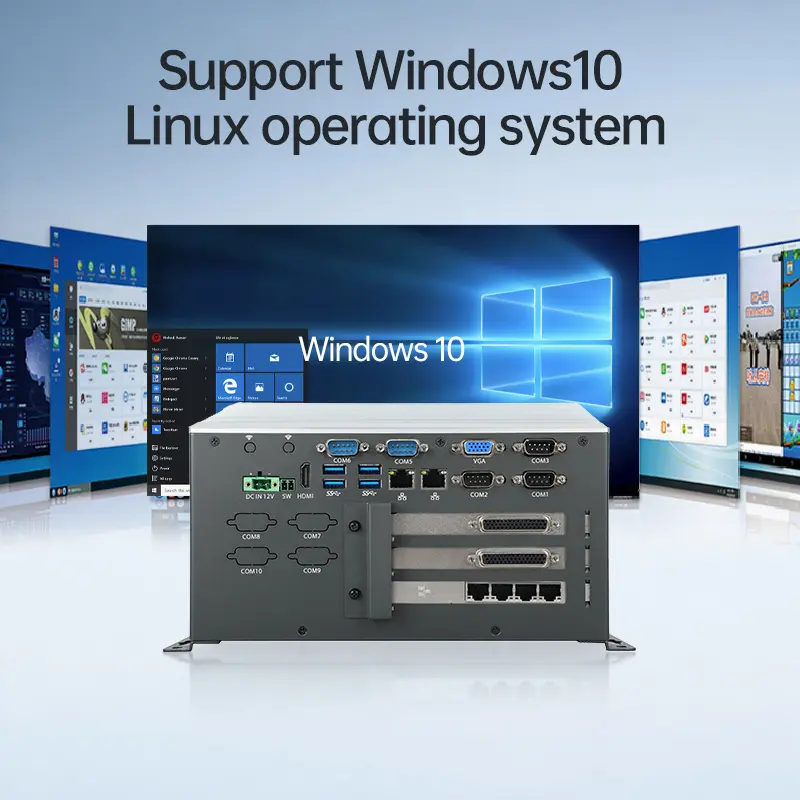

System Support: Windows 10, Linux
Specifications
| Category |
specification |
| CPU |
intel@ Corei7-1165G7 quad-core |
| Memory |
1*DDR4 3200MHz non-ECC SO-DIMM up to 32GB |
| Display |
1VGA interface, 1HDMI interface and 1*LVDS connector |
| Hard disk |
1*SATAIII |
| Network |
6Gigabit Ethernet ports (2 RJ45 built-in, optional 4*RJ45 network card expansion) |
| expand |
1mini PCle ((PCle+USB2.0, support WIFI+4G/3G) 1mini SATA (SATA, support mSATA), 1M.2 E-key 1M.2M-key,
1PClex16 golden finger (1PClex16+2*PCI)
|
| COM |
14COM ports (2RS232/485 COM1/2, 1 PCI to 4 ports 485 serial ports) |
| USB |
4USB3.0 (TYPE-A), 2USB2.0 (TYPE-A), 2USB2.0 (Header), 2USB2.0 (Wafer) |
| GPIO |
1*GPIO port |
| Front panel I/0 |
1GPIO, line-out, Mic, 1 COM, 2usb2.0, 1power button, 1reset button, 2*indicator lights |
| rear panel I/0 |
1DC IN, 12P 3.5MM power button junction box, 1HDMI, 2network ports,4USB3.0, 1VGA, 5COM ports, 1PCI to 4ports 232 serial ports,
1*PCI to 4 485 serial ports, 4 *Gigabit Ethernet ports
|
| Audio |
line-out, Mic |
| power supply |
DCIN12V input |
| Chassis size |
270.2x155.5x131.5mm with bracket (widthdepthheight), about 3Kg |
| System Support |
Windows 10, Linux |
