Description

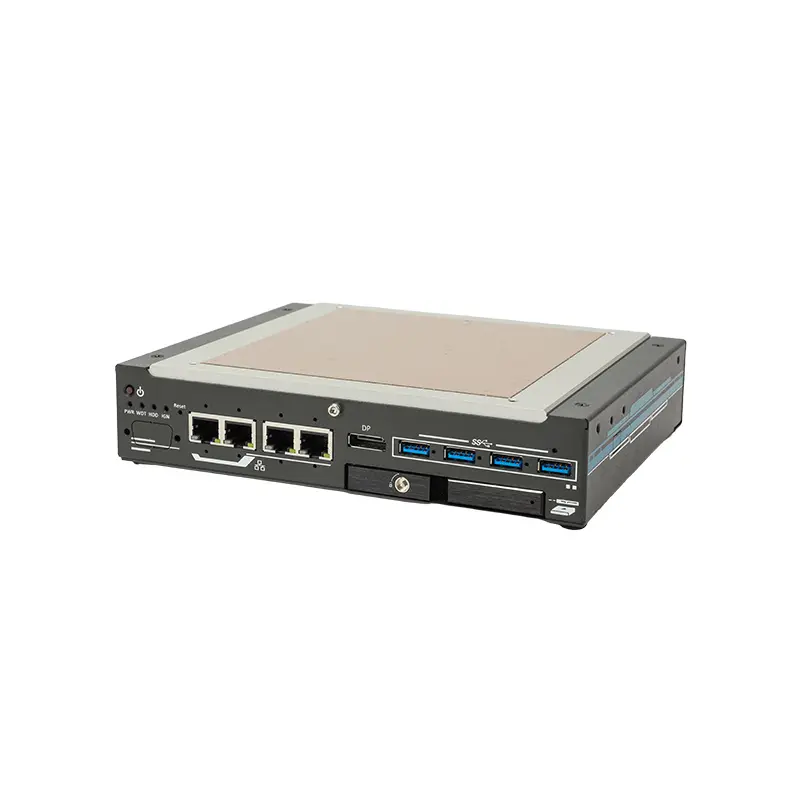

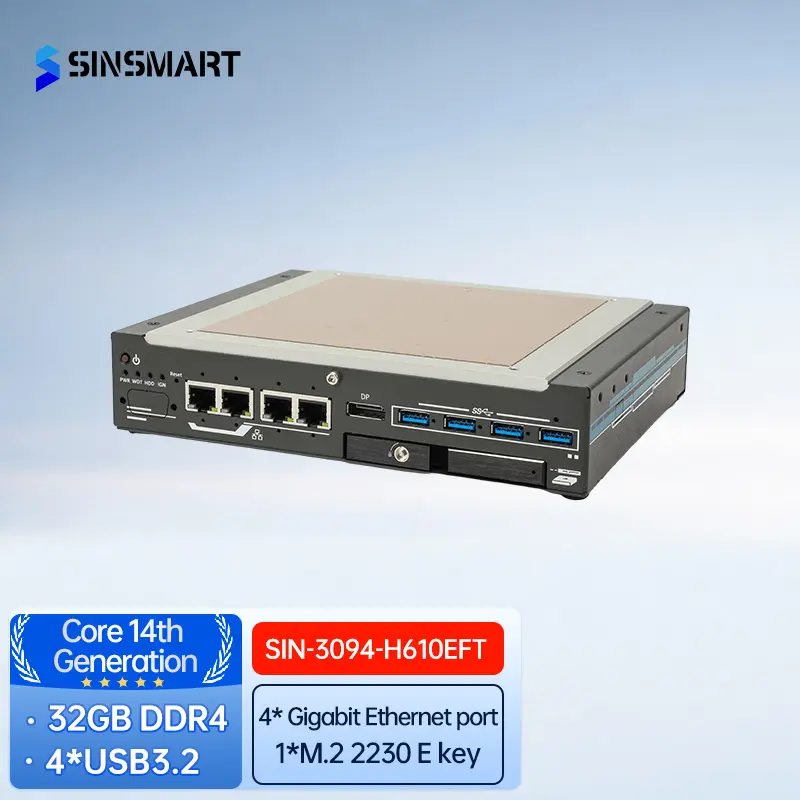

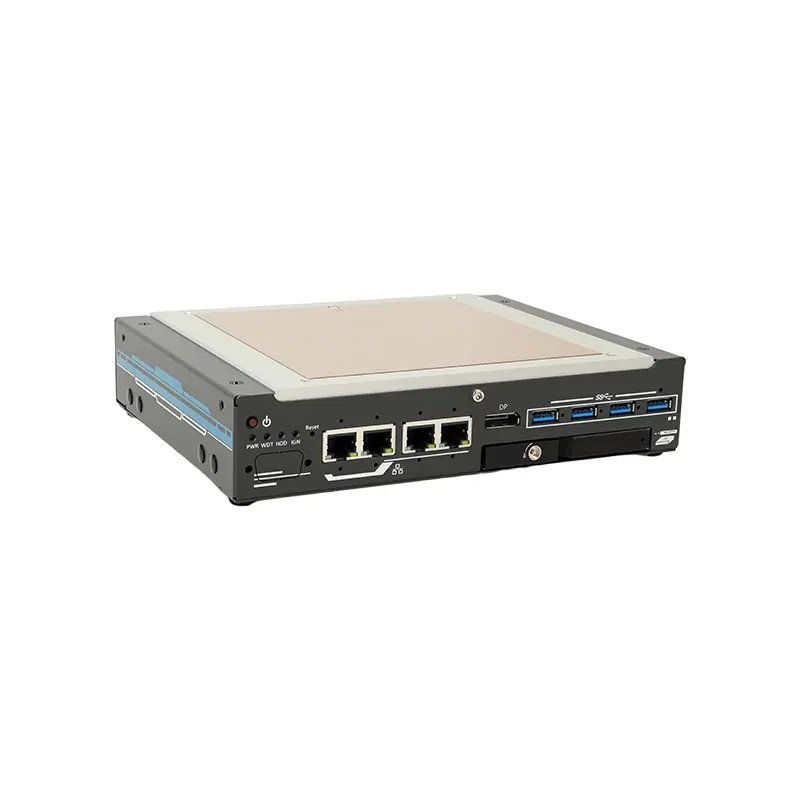

The SIN-3094-H610EFT fanless PC is equipped with a 14th generation Intel® processor, supporting up to 24 cores and 32 threads, delivering up to 2x the performance of 10th or 11th generation platforms. It boasts rich I/O capabilities, including 4*2.5G Ethernet ports with optional PoE+ PSE functionality and 4*USB 3.2 Gen1 ports for multi-camera connectivity in machine vision and video analytics applications.
Furthermore, it features one Gen4 x4 M.2 slot supporting one NVMe SSD, providing read/write speeds up to 7000 MB/s; one hot-swappable drive bay for easy drive swapping without shutting down or opening the chassis; 2*mini PCIe slots and one M.2 E key slot for installing WiFi or 5G/4G wireless communication modules. The machine also includes 8*DIO ports, 2*COM ports, and dual display outputs to meet the needs of your industrial embedded applications.
Specification
| CPU |
Intel Core 12/13/14th generation I3/I5/I7/I9/ Pentium/Celeron processors |
| Memory |
1*DDR4 SODIMM 3200MHz memory slot, up to 32GB |
| Display |
1VGA, 1DP |
| Storage |
1 hot-swappable 2.5-inch HDD/SSD hard drive bracket (installable)7mm hard disk/solid-state drive; 1*M.2 M Key 2280 |
| Network |
4*I226-IT 2.5G network port, PoE+ is optional |
| Expansion |
1 M.2 E Key (supports WiFi5/WiFi6/Google Edge TPU module; 2* Full-size mini-PCIe slots with built-in SIM card slots |
| COM |
1* Adjustable RS232/422/485 (COM1); 3* Three-wire RS232(COM2/COM3/COM4) or 1*RS422/485(COM2) |
| USB |
4USB3.2 Gen1 5Gbps, 2USB2.0 |
| DIO |
4-channel isolated DI and 4-channel isolated DO |
| I/O rear panel |
1 DIO, 2USB2.0, 1RS232/422/485, 3three-wire RS232, 1VGA, 13.5mm audio interface, 1DC power input port |
| Audio |
1 microphone input + speaker output (3.5mm jack) |
| Power supply |
1* 3-pin plug-in terminal block, 8~48V DC input Optional ignition signal power control is available |
| size |
21216545mm (width * depth * height), wall-mounted installation is optional |
| Weight |
About 2.4KG |
| System |
Windows10/11 64-bit, Linux |
| Temperature |
The temperature range is from -25 to 60℃, and it needs to be matched simultaneously
to meet the wide-temperature conditions Wide-temperature
memory and wide-temperature hard disks
|
