Description
SINSMART Intel Core i3/i5/i7/i9 Q670E chipset 32G fanless is a high-performance industrial computing system built on the Intel Q670E chipset, designed to support Intel® Core™ 12th and 13th generation processors (i3/i5/i7/i9) with 35W and 65W options using the LGA1700 socket. It delivers reliable processing capability for demanding applications while maintaining efficient power usage.
The system is equipped with two memory slots supporting up to 64GB DDR5 4800 SDRAM, ensuring fast data handling and smooth multitasking. For storage, it provides flexible options including two SATA interfaces and one M.2 2280 M key NVMe slot for high-speed data access.
Display & Networking

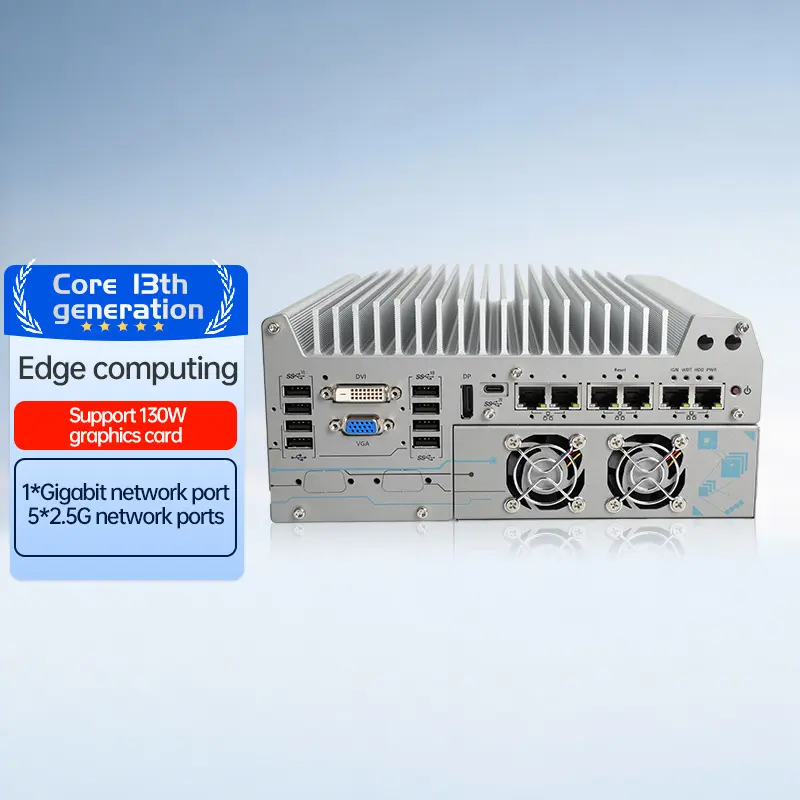

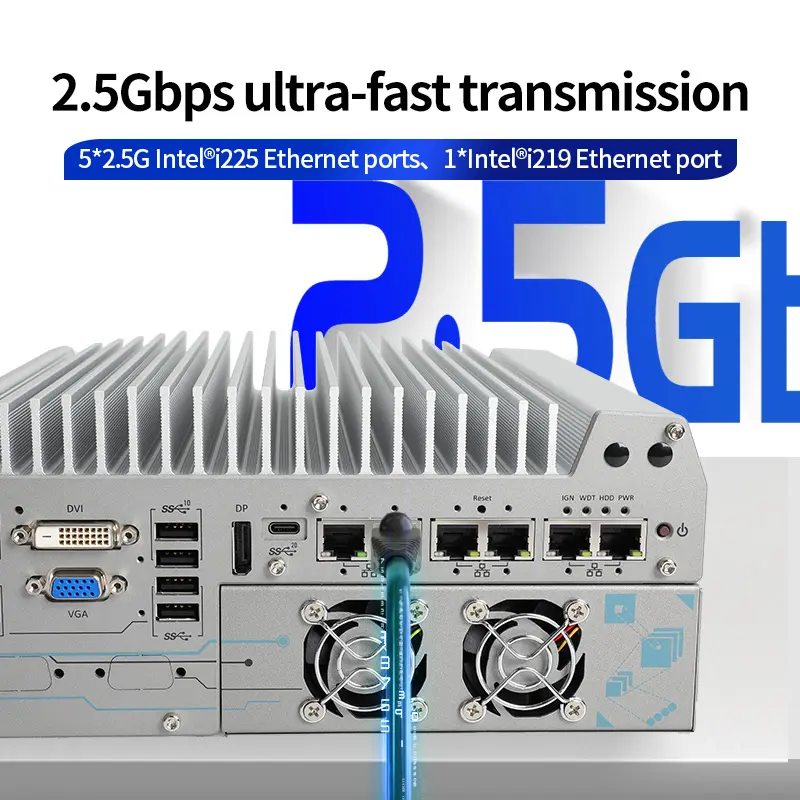

In terms of display connectivity, the device supports VGA, DVI-D, and DisplayPort outputs, allowing multiple display configurations. Networking capabilities are robust, featuring 5 × 2.5G network ports,1 × Gigabit Ethernet port, and support for PoE+ on ports 3 to 6, making it suitable for network-intensive environments.
Connectivity & Interfaces
-
The system includes a wide range of USB interfaces, such as USB 3.2 Gen2x2 (Type-C), multiple USB 3.2 ports, and USB 2.0 ports, ensuring compatibility with various peripherals.
-
It also offers four COM ports supporting RS232/422/485 for industrial communication needs.
Audio & Mechanical Design
-
Audio functionality is provided through a 3.5mm jack supporting microphone input and speaker output.
-

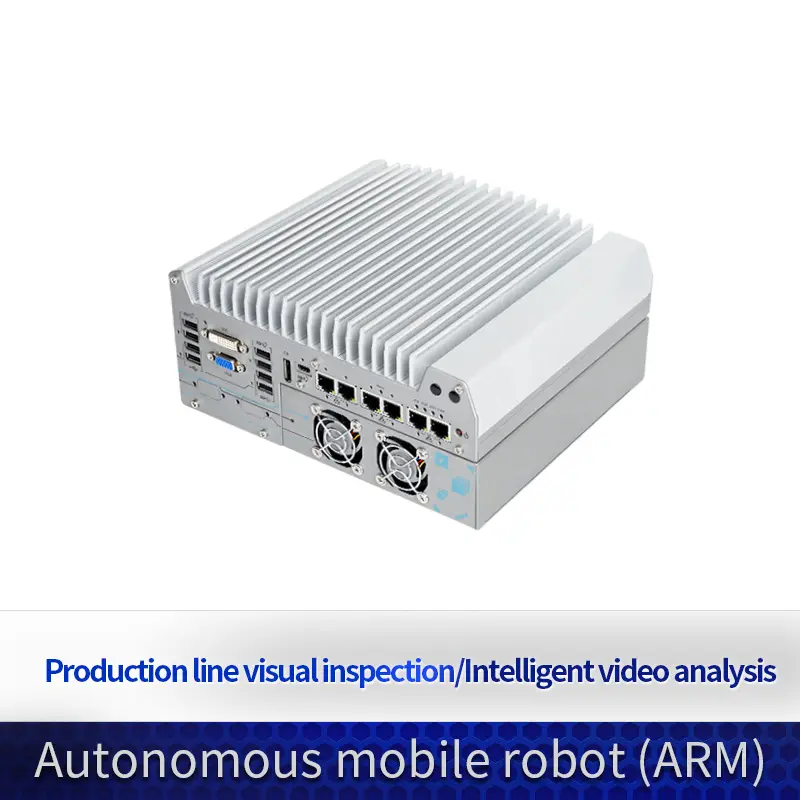

The compact chassis measures 240mm (width) x 225mm (depth) x 110.5mm (height), making it suitable for space-constrained installations.
Power & Operating Conditions
Power is supplied via a 3-core plug-in terminal block supporting 8 to 48V DC input, along with an additional terminal for remote control and PWR LED output. The system operates reliably in a wide temperature range, from -25°C to 60°C (35W CPU) and -25°C to 50°C (65W CPU). For extreme temperatures below 0°C and above 50°C, wide-temperature storage devices are required.
Expansion Options
-
The device includes one PCIe x16 slot, one full-length mini PCIe slot, and M.2 3042/3052 B key (SIM card slot is provided for installing M.2 5G/4G modules)
-
It also supports an expandable I/O module with a standard vacant configuration, allowing further customization based on application requirements.
Specification
| Category |
Specification |
| Chipset |
Intel Q670E chipset |
| CPU |
Intel®Core™12/13 Gen Core i3/i5/i7/i9 cpus (35W/65W). LGA1700 |
| Memory |
2 x memory slots, supporting 64G DDR5 4800 SDRAM |
| Display |
1 x VGA, 1 x DVI-D, 1 x DP |
| Hard disk |
2 x SATA
1 x M.2 2280 M key NVMe
|
| Network |
5 x 2.5G network port, 1 x Gigabit Ethernet port Network ports 3 to 6 support PoE+ |
| USB |
1 x USB 3.2 Gen2x2(Type-C),
4 x USB 3.2 Gen2x1,
2 x USB 3.2 Gen1x12USB 2.0(Type-A)
|
| COM |
4 x COM (2RS232/422/485) |
| Audio |
1 microphone input and speaker output (3.5mm jack) |
| Chassis size |
240(width) x 225(depth) x 110.5(height)mm |
| Power supply |
1x 3-core plug-in terminal block, providing 8 to 48V DC input
1 x 3-core plug-in terminal block,
providing remote control and PWR LED output
|
| Working temperature |
With a 35W CPU: -25℃ to 60℃With 65W
CPU: -25℃ to 50℃To operate at temperatures
below zero and above 50℃, wide-temperature hard drives/solid-state drives/NVMe
solid-state drives are required
|
