Description

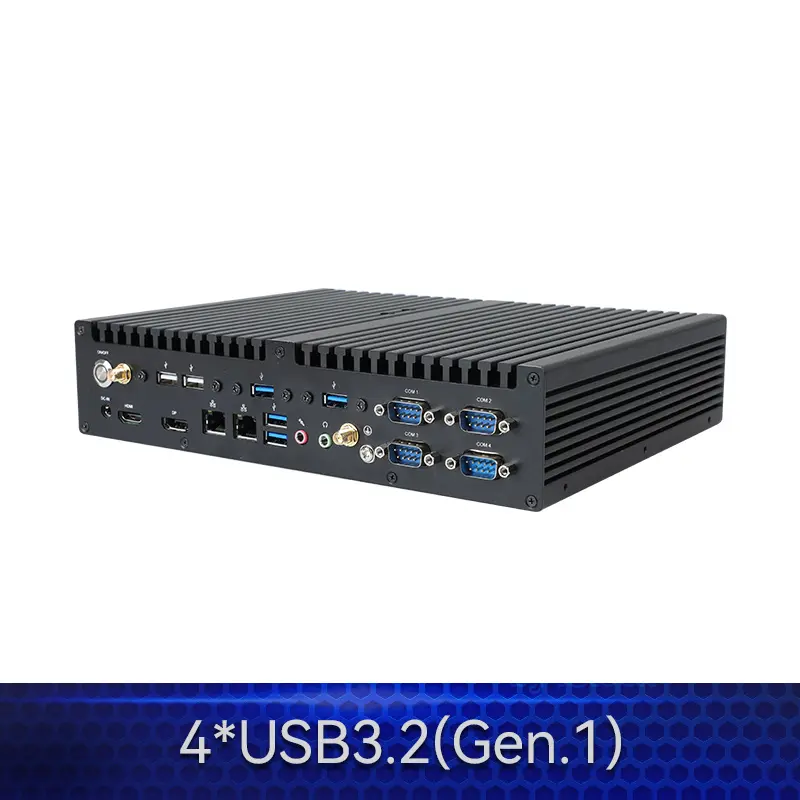

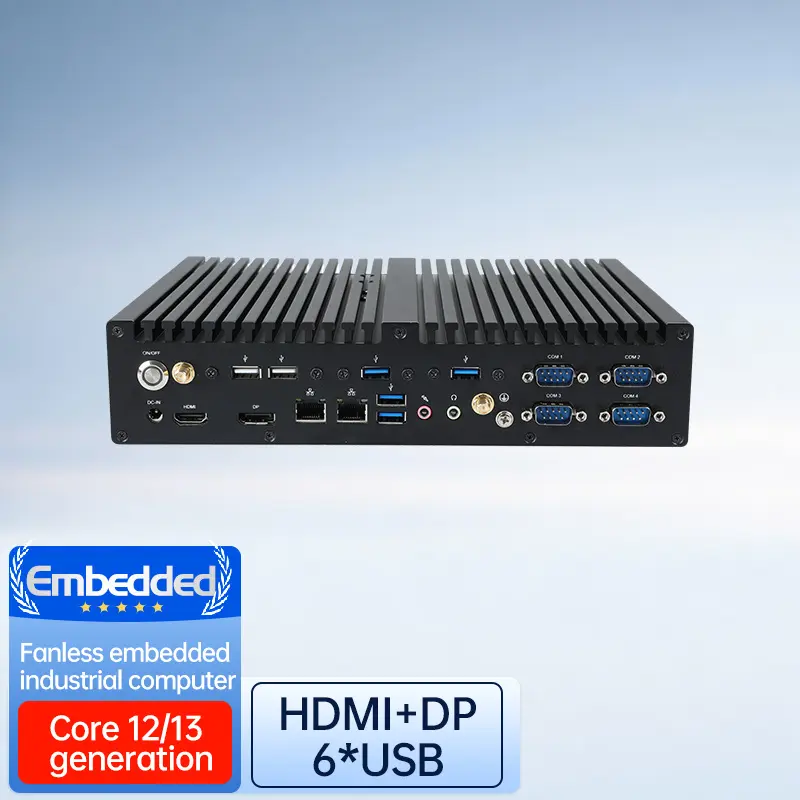

The SINSMART DTB-3292-H610 is a rugged and high-performance fanless embedded industrial computer designed to meet the demands of modern industrial and edge computing environments. Built with the Intel® H610 chipset and supporting 12th/13th generation Intel® Core™ processors, this system delivers reliable computing power while maintaining energy efficiency.
Its compact yet durable design, combined with wide voltage input support, makes it suitable for deployment in automation, transportation, and other industrial applications where stability and performance are critical. With multiple display outputs, high-speed connectivity, and flexible expansion options, it ensures seamless integration into various professional setups.
Engineered for versatility, the system offers rich I/O interfaces and robust networking capabilities. It supports high-resolution displays up to 8K, multiple COM ports for industrial communication, and expandable storage options for handling data-intensive tasks. The fanless design ensures silent operation and reduces maintenance, while its wide operating temperature range allows it to perform reliably in challenging environments.
Specifications
| Category |
Specification |
| Model |
DTB-3292-H610 |
| CPU |
Intel®i5-13500T |
| Memory |
64G DDR4 |
| Harddisk |
1T |
| Power supply |
12-19V DC wide voltage |
| Chipset |
Intel® H610 Chipset |
| CPU |
LGA1700, supports 12th/13th generation Intel® Core™ I3/I5/ processor, MAX35W |
| Memory |
2*DDR4-3200MHz, up to 64GB |
| Show |
1HDMI2.0 resolution 4096x2160@60Hz, 1DP1.4 resolution 7680x4320@60Hz |
| Harddisk |
1x 2.5-inch SATAI internal drive bay, 1x M.2M-key (2242/2280NVME) |
| Network |
2*REALTEK RTL8111H GIGALAN |
| Expand |
1*M.2 E-key (2230, CNVI/PCIex1/USB2.0) for WIFI/Bluetooth module |
| COM |
2RS232(COM3/4), 2RS232/422/485(COM1/2) |
| USB |
4*USB3.2 (Gen.1), 2 USB2.0 |
| I/O front panel interface |
-- 1power button, 1DCIN power interface, 1HDMI, 1DP, 2USB2.02 RJ45, 4USB3.2,
2audio interfaces, 4COM ports
|
| Power support |
DC IN 12-19V |
| Size and weight |
264199.458mm (widthdepthheight); about 3.4kg |
| Operating temperature |
-10℃~50℃ |
| System Support |
Windows 10/11, Linux |
