Many workers need a laptop that can survive a noisy workshop, a dusty construction site, or a cramped vehicle. A fragile computer can overheat, break, or lose data, which stops work and costs money. The SINSMART SIN-1417ZD-BQ670MA1 17.3 inch Reinforced Portable Laptop Computer is built to stay strong in those conditions. It gives you a reliable screen, a tough case, and many ports so you can keep working without worry.

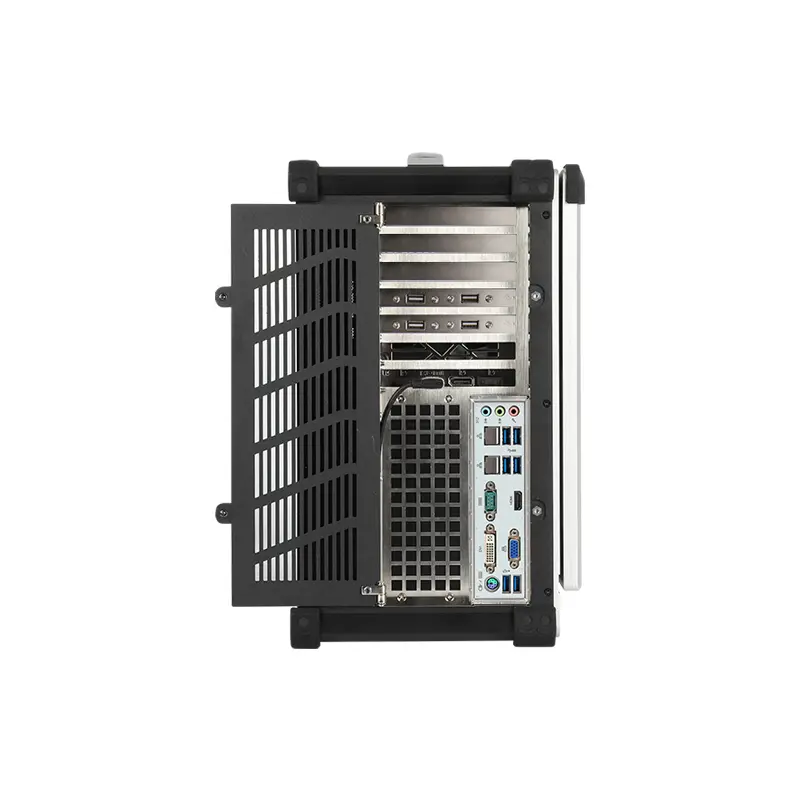

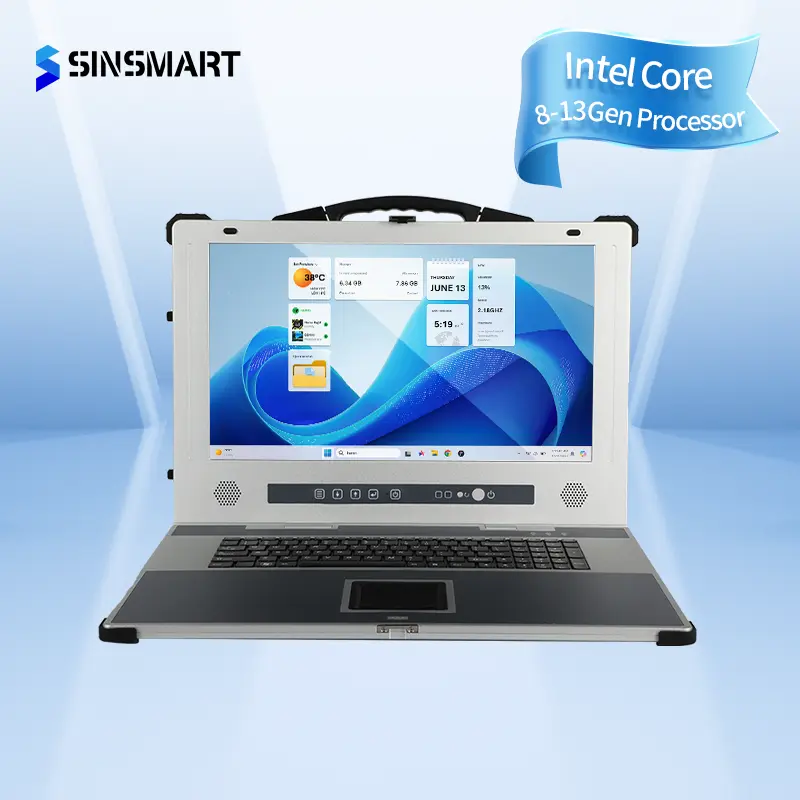

SINSMART SIN-1417ZD-BQ670MA1 17.3 inch Reinforced Portable Laptop Computer with SINSMART
Imagine a laptop that does not shut down when the temperature rises, does not crack when you drop it, and still runs heavy software fast. This is what the SINSMART model does. It is a 17.3-inch industrial laptop designed for engineers, field technicians, and anyone who needs a sturdy computer. If you have been frustrated by broken screens or missing ports, this machine solves those problems with a reinforced chassis and a bright anti-glare display.
Key Features
- 17.3-inch 1920 x 1080 anti-glare display with 500 cd/m brightness.
- Supports Intel Core 12th, 13th and 14th generation processors.
- Four DDR4 slots, expandable up to 128 GB RAM.
- Four SATA III drives and one M.2 slot for fast SSD storage.
- Two network ports: 2.5 GbE and Gigabit Ethernet.
- Up to six COM ports for serial device connections.
- Twelve USB ports, including eight USB 3.0 for rapid data transfer.
- PCIe expansion slots: one x16 (x8), two x4, one x1, three PCI, and a miniPCIe.
- Full-size SIM slot and M.2 E-Key for wireless modules.
- 850 W power supply ensures stable operation under heavy load.
Specifications
| Model |
SIN-1417ZD-BQ670MA1 |
| Screen Size |
17.3-inch display 500cd/m² |
| Resolution |
1920 x 1080 pixels |
| Brightness |
500cd/m², with anti-glare film |
| Keyboard |
102-key keyboard+touchpad |
| CPU |
Supports Core 12/13/14 generation processors |
| Memory |
4xDDR4 memory slots, up to 128G |
| Hard disk |
4xSATAIII, 1xM.2 M-key |
| Display |
1xVGA port, 1xHDMI port (used for display), 1xDVI |
| Network port |
1xIntel I226-V 2.5G network port, 1xIntel i219-V Gigabit Ethernet port |
| COM |
Up to 6 x COM (1xRS232/422/485 internal lead) |
| USB |
Up to 12 x USB [8 x USB3.0(2 x internal lead), 4 x USB2.0(4 x internal lead)], In addition,
1 x internal vertical USB2.0 optional
|
| Expansion |
1 x PCIeX16 slot (X8 signal), 2 x PCIeX4 slot (X2 signal), 1 x PCIeX1 slot, 3 x PCI slot, 1 x miniPCIe slot,
with 1 x full-size SIM card slot, 1xM.2 E Key 2230 slot
|
| GPIO |
8bit optional |
| I/O interface |
1 x PS/2,6 x USB 3.0, 1 x VGA port, 1 x DVI-I port, 1 xHDMI port (used for display),
1 x COM port, 2 x Gigabit Ethernet port, 3 x audio port
|
| Power supply |
850W standard |
| Dimensions and weight |
455 x 350 x 211.2mm (widthxdepthxheight, excluding corner guards and handles) about 14.5KG |
| system |
Windows10/11, Linux |
| Working temperature |
0 ~ 60℃ |
