Tired of laptops that crack under a little bump? The SINSMART SIN-2772-WQ370MA 17.3 inch, Q370 Chipset 64G Portable Rugged Computer is built for tough places. It lets you keep work moving when you are on a construction site, in a factory, or traveling to a remote client. If you need a machine that survives drops, dust and temperature swings, this rugged PC answers that need.

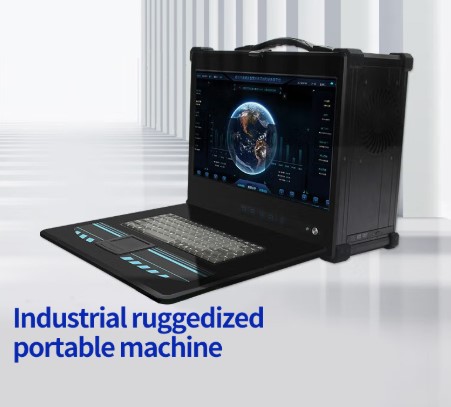

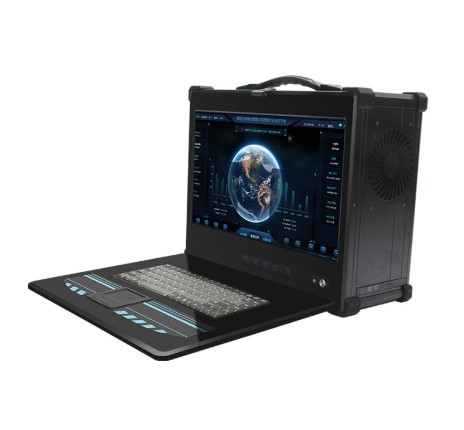

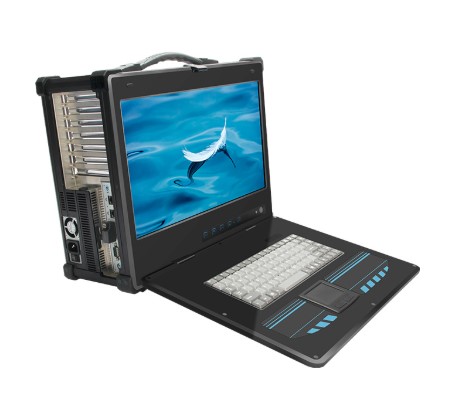

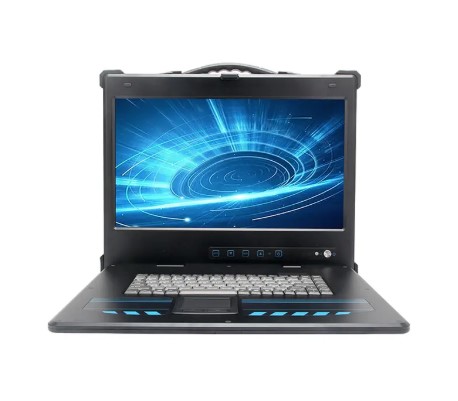

SINSMART SIN-2772-WQ370MA 17.3 inch, Q370 Chipset 64G Portable Rugged Computer
Many professionals struggle with fragile laptops that cannot handle harsh environments. A broken screen or lost data can halt a project and cost time. This computer solves the problem by combining a sturdy metal chassis with industrial-grade components. The result is a reliable workstation that stays on the job, even when the work area is rough. You get the power to run demanding software and the durability to survive daily shocks.
Key Features
- Intel Q370 chipset with support for 8th/9th-gen Core CPUs.
- Four DDR4 2666 MHz UDIMM slots, up to 64 GB total memory.
- 1 VGA, 1 HDMI, 2 DisplayPort outputs for flexible display options.
- Six SATA III ports, 1 x M.2 M slot and 1 x M.2 E slot for storage expansion.
- Five PCIe x16 slots and two PCIe x1 slots for additional cards.
- Ten COM ports (including RS232/422/485) for industrial device connections.
- Thirteen USB ports (6 x USB 3.1, 7 x USB 2.0) for peripherals.
- One LPT parallel port and built-in audio (line-in, line-out, mic-in).
- 300 W power supply (optional 600 W) to handle high-load workloads.
Specifications
| Chipset |
Intel ®Q370Chipset |
| CPU |
CPU LGA1151 architecture, supports Intel® Core8/9 generation l3/15/17 processors |
| Memory |
4 x 288pin DDR4 2666MHz UDIMM memory slots, support 64G memory |
| Display |
1 VGA port, 1 HDMI port, 2 DP ports |
| Hard drive |
6 SATA III ports, 1 M.2.M slot, 1 M.2.E slot |
| Network |
2 Intel® i210-AT Gigabit LAN ports, 1 Intel® i219LM Gigabit LAN port |
| Expansion |
5 PCIex16 slots, 2 PCIex1 slots |
| COM |
10 x COM（2 x RS232/422/485COM，8 x RS232COM） |
| USB |
13 x USB（6 x USB3.1，7 x USB2.0，one built-in USB2.0 port） |
| Parallel port |
1 x LPT parallel port |
| GPIO |
4-bit DI，4-bit DO |
| Rear panel I/O |
10 x COM, 1 x LPT, 1 x VGA, 1 x HDMI，2 x DP，3 x LAN，4 x USB2.0，
6 x USB3.1，3个audio，1 x PS/2
|
| Audio |
line-in，line-out，Mic-in |
| Sound card |
Realtek AL C887 audio |
| Display Size |
17.3" TFT LCD, resolution: 1920x1080, brightness: 300cd/m |
| Input devices |
Keyboard - 88 keys ultra-thin keyboard, touchpad - capacitive touchpad |
| Power |
300W rated power (optional 600W power supply) |
| Dimensions |
427 x 340 x 186mm(W x D x H) |
| Weigh |
Approx 10kg |
| System support |
Windows 7, Windows 10, Windows server 2016, Centos, Ubuntu |
