Tired of tablets that quit when the job gets dirty, wet, or rough? The SINSMART SIN-T1080E-Q (RTK) 10.1" ARM 8G+128G IP65 Industrial Rugged Tablet PC is built for those hard-working fields where ordinary devices fail. It gives you a bright screen, fast Android 12, and centimeter-level GPS so you never lose data or accuracy. If you need a device that survives drops, rain, dust and still tells you exactly where you are, this tablet is the answer.

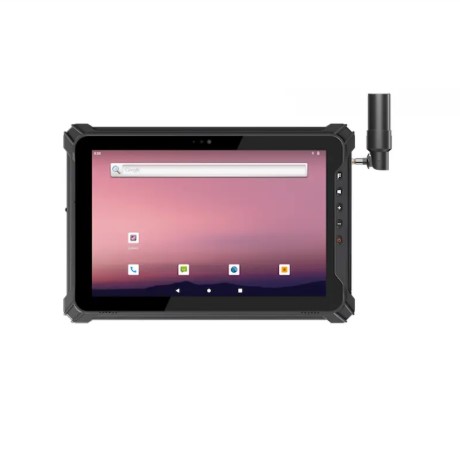

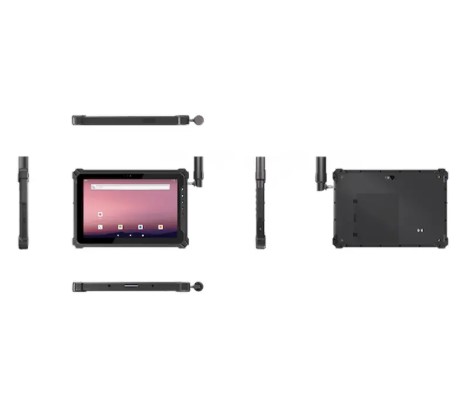

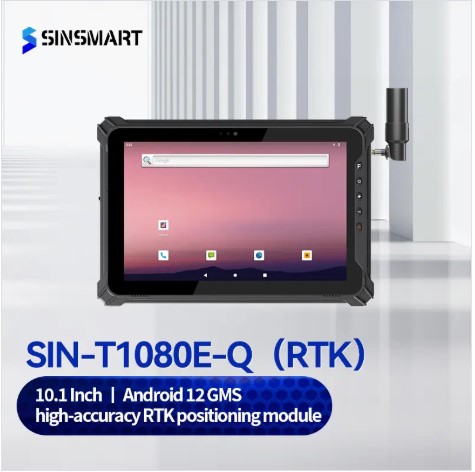

SINSMART SIN-T1080E-Q (RTK) 10.1" ARM 8G+128G IP65 Industrial Rugged Tablet PC
Field workers often struggle with devices that cannot handle harsh weather or rough handling. When a tablet stops working, the whole project stalls and costs rise. This problem matters because every minute of downtime means lost data, missed deadlines, and extra expense. The SINSMART tablet solves it by offering IP65 water and dust protection, MIL-STD-810H drop resistance, and a built-in RTK GNSS module that delivers sub-centimeter positioning. You get a reliable tool that keeps working while you stay focused on the job.
Key Features
- 10.1-inch 1920 1200 TFT display with 700 nits brightness.
- ARM octa-core processor running Android 12 with Google Mobile Services.
- RTK GNSS module supporting GPS, GLONASS, Galileo, BDS, QZSS.
- IP65 and MIL-STD-810H certification for water, dust, and drops.
- USB-C fast charging (18 W) and USB-A for accessories.
- Dual SIM slots, TF card holder, and NFC for secure data exchange.
- Wi-Fi 6 (802.11ac) and Bluetooth 5.2 for reliable connectivity.
- 4G LTE bands covering major global networks.
- Front 5 MP and rear 13 MP cameras for documentation.
- Optional 2D barcode scanner and removable Li-polymer battery.
Specifications
| Basic Parameters |
|
| Dimension |
274.9 x 188.7 x 23.1mm (GNSS antenna: Diameter 27.5mm, length 113mm) |
| Weight |
TBD |
| Device Color |
black |
| LCD |
10.1 inch TFT 16:10, 1920 x 1200, 700nits |
| Touch Panel |
10 point capacitive touch screen |
| Camera |
Front 5.0MP, Rear 13.0MP |
| I/O |
USB 2.0 Type-A x 1, USB Type-C x 1, SIM Card x 2, TF Card (Three in one card holder),
12PIN Pogo Pin x 1, Φ3.5mm standard earphone jack x 1
|
| Extension interface (3 choose 1) |
RJ45 (10/100M) x 1 (standard), DB9 (RS232) x 1, USB 2.0 Type-A x 1 |
| Power |
USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W, maximum 9V/2A |
| Performance Parameter |
|
| CPU |
ARM (OCTA Core) |
| OS |
Android 12/GMS |
| RAM |
8GB |
| Storage |
128GB |
| Data Collection |
|
| 2D |
Optional |
| NFC |
13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols, Card reading distance: 4cm |
| Battery |
|
| Capacity |
10000mAh/3.8V |
| Type |
Removable Li-polymer battery |
| Endurance |
7 hours (connect to WiFi, maximum backlight brightness, RTK positioning test) |
| Network Connections |
|
| WIFI |
802.11 a/b/g/n/ac (2.4G+5.8G) |
| Bluetooth |
BT5.2, Transmission distance: 10m |
| 4G |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28A/B28B, WCDMA: B1/B2/B5/B8, GSM: B2/B3/B5/B8,
LTE-TDD: B38/B39/B40/B41
|
| GNSS |
BDS: B1I, B2I, B3I; GPS: L1C/A, L2P(W), L5; GLONASS: L1, L2; Galileo: E1, E5b,
E5a; QZSS: L1, L2, L5; Single-point positioning: 2.5m; RTK: Horizontal:
0.8cm + 1ppm, Vertical: 1.5cm + 1ppm
|
| Reliability |
|
| Operate Temperature |
-20°C ~ 60°C |
| Store Temperature |
-30°C ~ 70°C |
| Humidity |
95% Non-Condensing |
| Rugged Feature |
IP65 certified, MIL-STD-810H certified |
| Drop Height |
1.22m drop |
