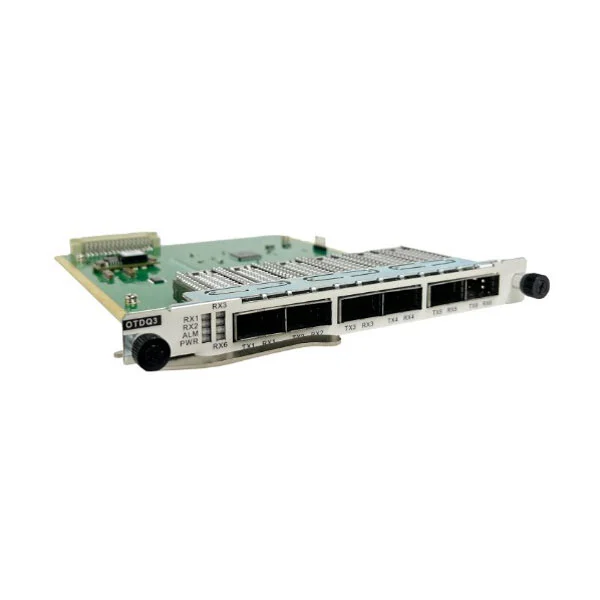

Sintai OTDQ3 6 Channels 40G&100G Transponder

When you need to convert or regenerate high-speed optical services without adding unnecessary equipment, the Sintai OTDQ3 provides a compact solution for 40G and 100G optical transport networks. This 6-channel transponder supports 3 × 100G service wavelength conversion and 3 × 100G service relay regeneration. It uses six QSFP28-based pluggable connections and supports 100G QSFP28 DCO and PAM4 DWDM optical modules for flexible line-side deployment.

Sintai OTDQ3 6 Channels 40G&100G Transponder

Managing high-speed optical services can become difficult when wavelength conversion, relay regeneration, and network monitoring are required in the same system. The Sintai OTDQ3 addresses these needs by supporting 100GE and OTU4 services, along with wavelength conversion and relay regeneration for 3 × 100G services. Its support for wavelength tunability from 191.35 to 196.1 THz with 100G QSFP28 DCO modules gives you added flexibility when configuring the optical line side.

Benefits

• High-speed service support: Supports 100GE, 100GE_RS-FEC, and OTU4 services for demanding optical transport applications.

• Flexible wavelength conversion: Supports 3 × 100G service wavelength conversion to help connect different optical network requirements.

• Relay regeneration: Supports 3 × 100G service relay regeneration for suitable transport applications.

• Detailed monitoring: Monitors optical performance and module operating conditions to help you manage network performance.

• Compact installation: Occupies only one slot in compatible OTNS8600 series chassis, helping save equipment space.

Usages

The Sintai OTDQ3 can be used in optical transport networks where 100G wavelength conversion or relay regeneration is required. It is suitable for applications using 100G QSFP28 DCO or 100G QSFP28 PAM4 DWDM optical modules. The transponder can also support loopback when using 100G QSFP28 DCOs. Automatic laser switching based on optical signal input helps support optical line operation.

Key Features

• OTDQ3 transponder

• 6 QSFP28-based pluggable connections

• Supports 3 × 100G wavelength conversion

• Supports 3 × 100G relay regeneration

• 100G QSFP28 DCO support

• 100G QSFP28 PAM4 DWDM support

• Wavelength tunability from 191.35 to 196.1 THz

• Supports 100GE and 100GE_RS-FEC

• OTU4 support with 100G QSFP28 DCO

• Automatic laser switching support

• Optical SNR and BER performance monitoring

• Occupies 1 slot in OTNS8600 series chassis
