Get high-capacity optical transport in a compact rack design. The Sintai OTNS8600 IF is a 1U DWDM/CWDM Optical Transport System built for networks that need flexible wavelength capacity, high-speed transmission, and support for multiple services. It supports up to 18 CWDM wavelengths or 96 DWDM wavelengths at 50 GHz, with a maximum single-channel rate of 400Gbit/s. Its compact 44 × 442 × 220 mm design is useful when you need strong optical transport capability without taking up extra rack space.

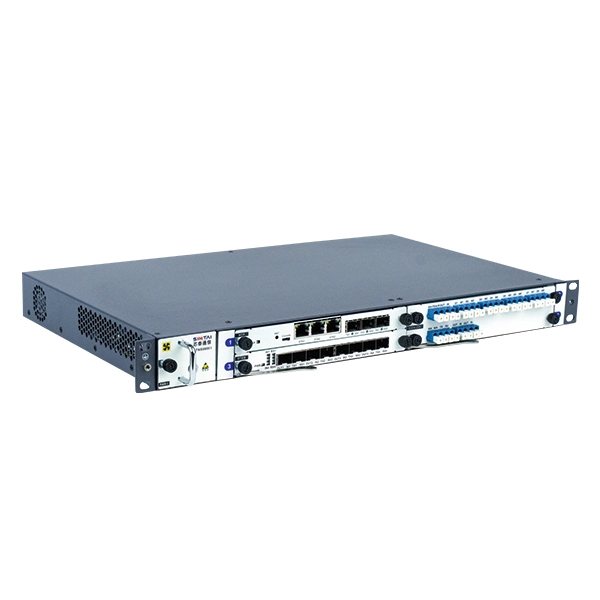

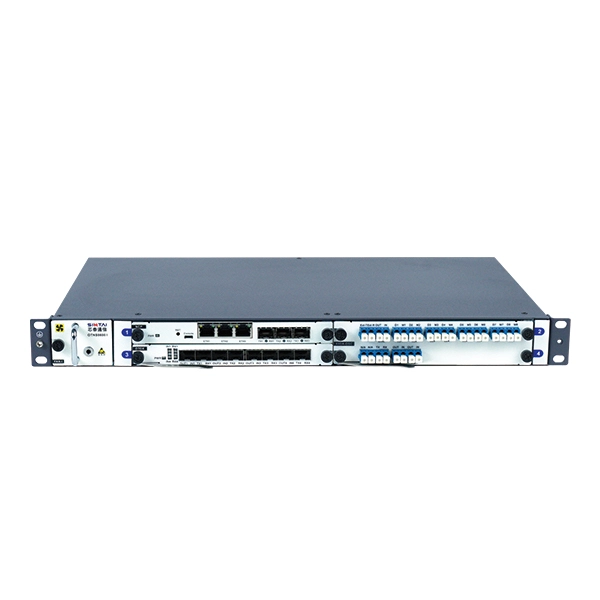

Sintai OTNS8600 IF 1U DWDM/CWDM Optical Transport System
Managing different services and increasing bandwidth can become difficult when rack space and equipment power are limited. The Sintai OTNS8600 IF provides a compact solution with four service slots, 50W maximum power consumption, and support for line rates from 1.25Gbit/s to 400Gbit/s. It supports Ethernet, Fibre Channel, OTU, STM, OC, EPON, GPON, CPRI, and eCPRI services. Point-to-point, chain, mesh, and ring topologies give you flexibility when building or expanding an optical network.
Benefits
- Compact rack design: The 1U chassis helps you add optical transport capacity while using minimal rack space.
- High wavelength capacity: Support for up to 96 DWDM or 18 CWDM wavelengths provides room for network expansion.
- Low power consumption: Maximum power consumption of 50W helps keep the compact system efficient.
- Broad service support: Multiple supported services make the system suitable for varied optical networking requirements.
- Network protection: 1+1 protection options help improve service continuity across optical network sections.
Usages
The Sintai OTNS8600 IF can be used for telecom transport, data center connectivity, enterprise optical networks, and other applications requiring DWDM or CWDM transmission. It supports point-to-point, chain, mesh, and ring network topologies. The system can transport services such as 10GE, 25GE, 40GE, 100GE, 200GE, 400GE, Fibre Channel, GPON, EPON, CPRI, and eCPRI.
Key Features
- 1U optical transport system
- Front power supply design
- 4 service slots
- 18 CWDM wavelengths
- 96 DWDM wavelengths at 50 GHz
- Maximum 400Gbit/s single-channel rate
- Line rates from 1.25Gbit/s to 400Gbit/s
- IEEE 1588V2 pass-through support
- Point-to-point, chain, mesh, and ring topologies
- Optical channel, multiplex section, and line 1+1 protection
- Power supply 1+1 backup
- SNMP, Visual Web, and OTNS8600 management support
Specifications:
|
Product model
|
OTNS8600 IF
|
|
Equipment size
(HxWxD, mm)
|
1U: (front power supply)
44 × 442 × 220
|
|
Service slots
|
4 slots
|
|
Power consumption
|
50W (max)
|
|
Maximum number of channels
|
CWDM: 18 waves, DWDM: 96 waves (50 GHz)
|
|
Maximum single-channel rate
|
400Gbit/s
|
|
Line rate
|
1.25Gbit/s, 2.5Gbit/s, 10Gbit/s, 25Gbit/s, 40Gbit/s, 100Gbit/s, 200Gbit/s, 400Gbit/s
|
|
Supported service types
|
-
STM-1/4/16/64/256, OC-3/12/48/192/768
-
OTU-1/2/3/4
-
FE/GE/10GE/25GE/40GE/100GE
-
FC 1G/2G/4G/8G/16G/32G
-
EPON, GPON, CPRI 1/2/3/6/7/10, eCPRI
|
|
Clock characteristics
|
Support IEEE 1588V2 pass-through
|
|
Network topology
|
Point-to-point, chain, mesh, ring
|
|
Network level protection
|
Optical channel 1+1 protection, optical multiplex section 1+1 protection, optical line 1+1 protection
|
|
Device-level protection
|
Power supply 1+1 backup
|
|
Network management
|
|
|
Installation
|
19" Standard rack mount
|
|
Operating temperature range
|
-5℃～50℃
|
|
Operating humidity range
|
5 to 95% non-condensing
|
|
Storage temperature range
|
-40℃～85℃
|
|
Heat dissipation
|
Fan cooling
|
|

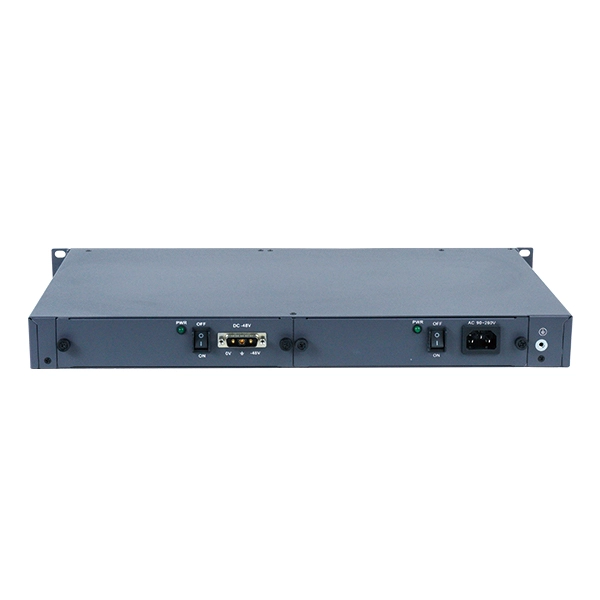

Power supply method
|
AC: 90 ~ 260V or DC: -36 ~ -72 V
|
