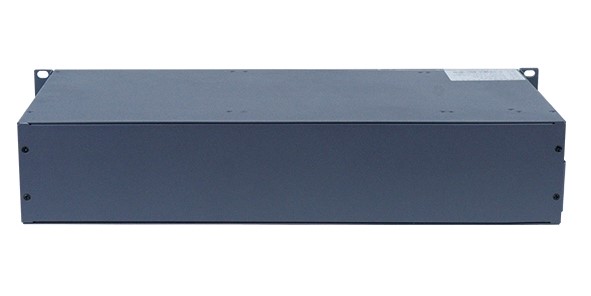

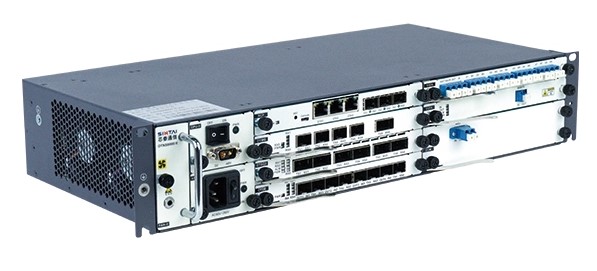

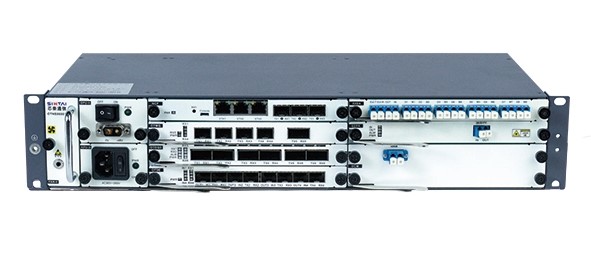

Sintai OTNS8600 II, 2U 8 Slots DWDM/CWDM Optical Transport System

When your network needs higher capacity without replacing the entire optical infrastructure, the Sintai OTNS8600 II gives you a practical way to expand and manage high-speed optical services. This 2U 8-slot DWDM/CWDM Optical Transport System supports up to 18 CWDM wavelengths or 96 DWDM wavelengths at 50 GHz spacing, with a maximum single-channel rate of 400Gbit/s. It is designed for telecom and data networking environments where reliable optical transport, flexible service support, and network protection are important.

Sintai OTNS8600 II, 2U 8 Slots DWDM/CWDM Optical Transport System

Growing traffic can put pressure on your optical network, especially when different service types and transmission rates need to run through the same transport system. The Sintai OTNS8600 II helps solve this challenge by supporting multiple line rates from 1.25Gbit/s to 400Gbit/s and a wide range of services. You can build point-to-point, chain, mesh, or ring networks based on your network design. Optical channel, optical multiplex section, and optical line 1+1 protection help support network continuity, while power supply 1+1 backup adds device-level protection.

Benefits

• High network capacity: Support up to 96 DWDM wavelengths or 18 CWDM wavelengths for expanding optical transport capacity.

• Flexible service support: Handle Ethernet, Fibre Channel, SDH/SONET, OTU, EPON, GPON, CPRI, and eCPRI services.

• Supports high-speed traffic: A maximum single-channel rate of 400Gbit/s helps meet demanding bandwidth requirements.

• Multiple protection options: 1+1 optical protection features help reduce service interruption risks.

• Easy network management: SNMP, a Visual Web interface, and the OTNS8600 network management system give you practical management options.

Usages

The Sintai OTNS8600 II can be used in telecom transport networks, data center connectivity, enterprise optical networks, and other environments that require high-capacity DWDM or CWDM transmission. Its support for point-to-point, chain, mesh, and ring topologies makes it suitable for different network layouts. The system can also transport services such as 25GE, 100GE, 200GE, 400GE, Fibre Channel, GPON, EPON, CPRI, and eCPRI.

Key Features

• 2U rack-mount optical transport system

• 8 service slots

• 18 CWDM wavelengths

• Up to 96 DWDM wavelengths at 50 GHz

• Maximum single-channel rate of 400Gbit/s

• Line rates from 1.25Gbit/s to 400Gbit/s

• Supports IEEE 1588V2 pass-through

• Point-to-point, chain, mesh, and ring topologies

• Optical and line 1+1 protection

• Power supply 1+1 backup

• SNMP and Visual Web management

• AC or DC power supply support
