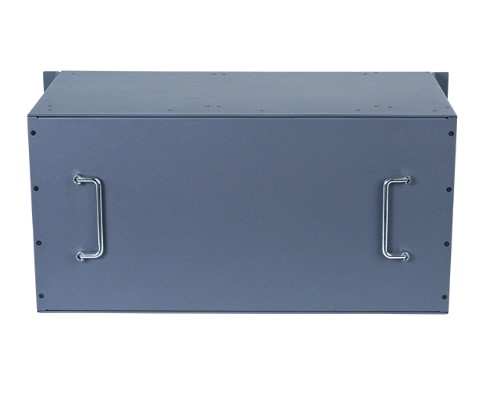

Sintai OTNS8600 V, 5U 16 Slots DWDM/CWDM Optical Transport System

High-capacity optical networks need a platform that can support different services, transmission rates, and network protection requirements in one system. The Sintai OTNS8600 V is a 5U 16-Slot DWDM/CWDM Optical Transport System designed for high-capacity optical transmission. It supports up to 18 CWDM waves or 96 DWDM waves at 50 GHz and provides a maximum single-channel rate of 400Gbit/s. With support for multiple line rates, service types, network topologies, and protection functions, it gives you a flexible platform for building and expanding optical transport networks.

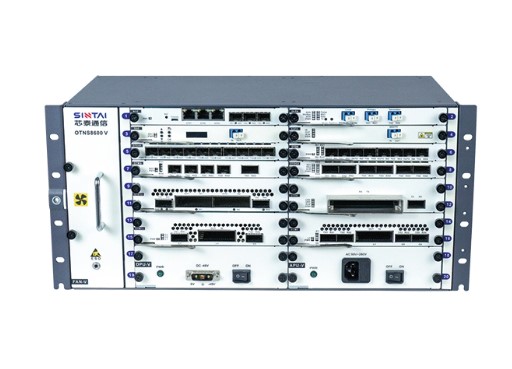

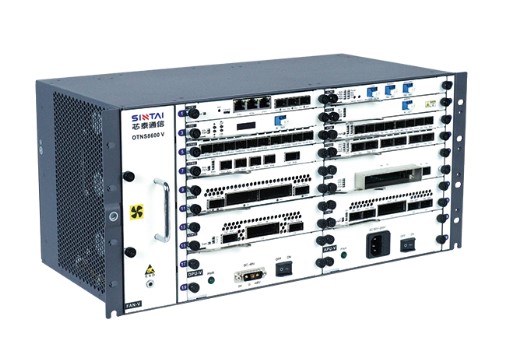

Sintai OTNS8600 V 5U 16-Slot DWDM/CWDM Optical Transport System

Managing different optical services on a growing network can become difficult when one platform needs to support multiple speeds, protocols, and network designs. The Sintai OTNS8600 V helps solve this challenge by providing 16 service slots and support for CWDM and DWDM transmission. It supports line rates from 1.25Gbit/s to 400Gbit/s and multiple service types including SONET/SDH, OTU, Ethernet, Fibre Channel, EPON, GPON, CPRI, and eCPRI. The system also supports point-to-point, chain, mesh, and ring topologies, allowing you to adapt the network design to your infrastructure. Optical channel, optical multiplex section, and optical line 1+1 protection provide additional network-level protection options.

Benefits

• High-capacity transmission: Supports up to 400Gbit/s per channel for demanding optical network requirements.

• Flexible wavelength options: Supports up to 18 CWDM waves or 96 DWDM waves at 50 GHz.

• Broad service support: Handles multiple optical, Ethernet, Fibre Channel, and mobile network services.

• Flexible network design: Supports point-to-point, chain, mesh, and ring topologies for different deployments.

• Protection support: Provides multiple 1+1 protection options and 1+1 power supply backup.

Usages

The Sintai OTNS8600 V can be used in telecom networks, optical transport infrastructure, and high-capacity data communication systems. It is suitable for networks carrying Ethernet, Fibre Channel, SONET/SDH, OTU, EPON, GPON, CPRI, and eCPRI services. You can deploy it in point-to-point, chain, mesh, or ring network configurations depending on your infrastructure needs. The system is also suitable for applications that require DWDM or CWDM wavelength management, high-speed transmission, and network-level protection.

Key Features

• 5U optical transport system

• 16 service slots

• DWDM and CWDM support

• Up to 18 CWDM waves

• Up to 96 DWDM waves at 50 GHz

• Maximum single-channel rate of 400Gbit/s

• Line rates from 1.25Gbit/s to 400Gbit/s

• Supports STM-1/4/16/64/256 and OC-3/12/48/192/768

• Supports OTU-1/2/3/4

• Supports FE/GE/10GE/25GE/40GE/100GE

• Supports FC 1G/2G/4G/8G/16G/32G

• Supports EPON, GPON, CPRI, and eCPRI

• IEEE 1588V2 pass-through

• SNMP and Visual Web interface

• 19" standard rack mount

• AC 90~260V or DC -36~-72V power supply
