Imagine you need a tiny computer that can run AI, handle 4K video, and still fit in a pocket-size case. The Sipeed K3 Pico-ITX SpacemiT 8-core RISC-V, 32GB Single Board Computer (SBC) gives you that power in a 100 86 mm board. Hobbyists, developers, and small manufacturers often struggle with slow, bulky PCs that cannot be placed inside custom enclosures. This board solves that problem by delivering desktop-grade performance in a compact, fan-cooled package.

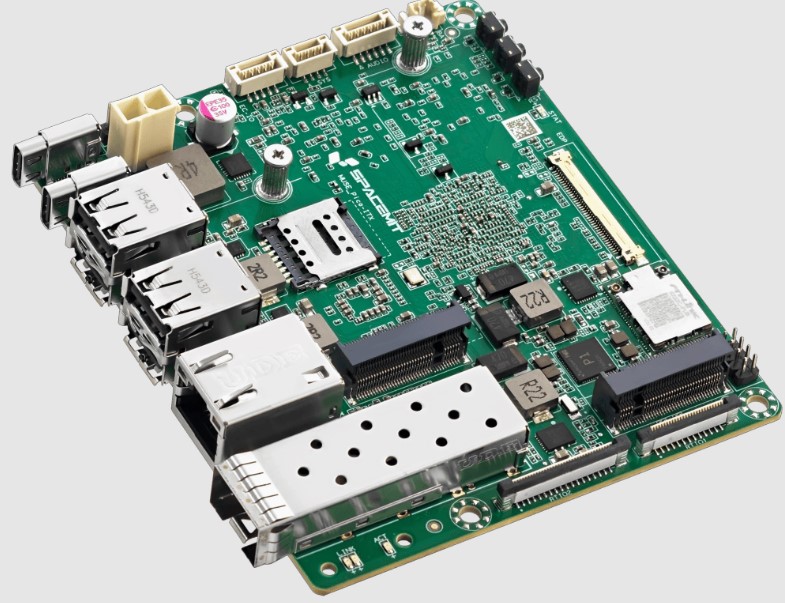

Sipeed K3 Pico-ITX SpacemiT 8-core RISC-V, 32GB Single Board Computer (SBC)
When a project needs fast processing, AI inference, and high-resolution display but has limited space, the lack of a suitable board can delay development and increase cost. This matters because every extra inch of hardware adds weight, power draw, and design complexity. The Sipeed solution packs an 8-core RISC-V CPU up to 2.4 GHz, 32 GB LPDDR5 memory, and a powerful GPU into a Pico-ITX Plus form factor. It also offers gigabit Ethernet, 10 GbE, Wi-Fi 6, and multiple USB ports, giving you all the connectivity you need without a separate motherboard.
Key Features
- SpacemiT K3 8-core RISC-V CPU up to 2.4 GHz.
- 32 GB LPDDR5 memory at 6400 MT/s.
- Onboard UFS 2.2 storage, up to 256 GB.
- M.2 M-Key PCIe Gen3 4 slot for NVMe SSD expansion.
- IMG BXM-4-64-MC1 GPU with OpenGL ES 3.2, OpenCL 3.0, Vulkan 1.3.
- Dual USB-C Power-Delivery (65 W) and ATX 12 V input.
- Gigabit Ethernet plus 10 GbE SFP+ for high-speed networking.
- Wi-Fi 6 and Bluetooth 5.2 for wireless connectivity.
- Real-time interfaces: EtherCAT, 5 CAN-FD, SPI, I2C, UART.
- Aluminum alloy case with PWM cooling fan for silent operation.
Specifications
| Processor |
SpacemiT K3
8-core RISC-V processor up to 2.4 GHz |
| AI Performance |
RVA23 compliant
IME vector extensions
Full virtualization support |
| Architecture |
Integrated graphics acceleration |
| GPU |
IMG BXM-4-64-MC1 GPU; OpenGL ES 1.1/2.0/3.2, OpenCL 3.0, Vulkan 1.3 |
| Memory |
32GB LPDDR5, 6400 MT/s |
| Local Storage |
Onboard UFS 2.2, up to 256GB |
| Storage Expansion |
1× M.2 M-Key 2280 (PCIe Gen3 ×4) for NVMe SSD |
| Video |
4K display output support |
| Display |
DP Type-C up to 4K@60
40-pin eDP up to 2560×1600@90 |
| PCIe / Expansion |
M.2 M-Key PCIe Gen3 ×4
M.2 B-Key PCIe Gen3 ×2 + USB |
| USB |
2× USB 3.2 Gen1 Type-C
4× USB 2.0 Type-A |
| Networking |
1× Gigabit Ethernet
1× 10GbE SFP+ |
| Wireless |
Wi-Fi 6; Bluetooth 5.2 |
| Real-Time Interfaces |
EtherCAT
5× CAN-FD
SPI, I2C, UART |
| Audio |
Onboard codec
Internal audio input/output |
| Power |
Dual USB Type-C USB-PD (65W)
ATX 12V input |
| Operating Temperature |
-20°C to 70°C (consumer)
-40°C to 85°C (industrial) |
| Cooling |
Aluminum alloy enclosure with integrated PWM cooling fan |
| Operating System |
Bianbu 3.0, Ubuntu 26.04, OpenHarmony 6.0, OpenKylin, Deepin, Fedora |
| Dimensions |
100 × 86 mm Pico-ITX Plus |
