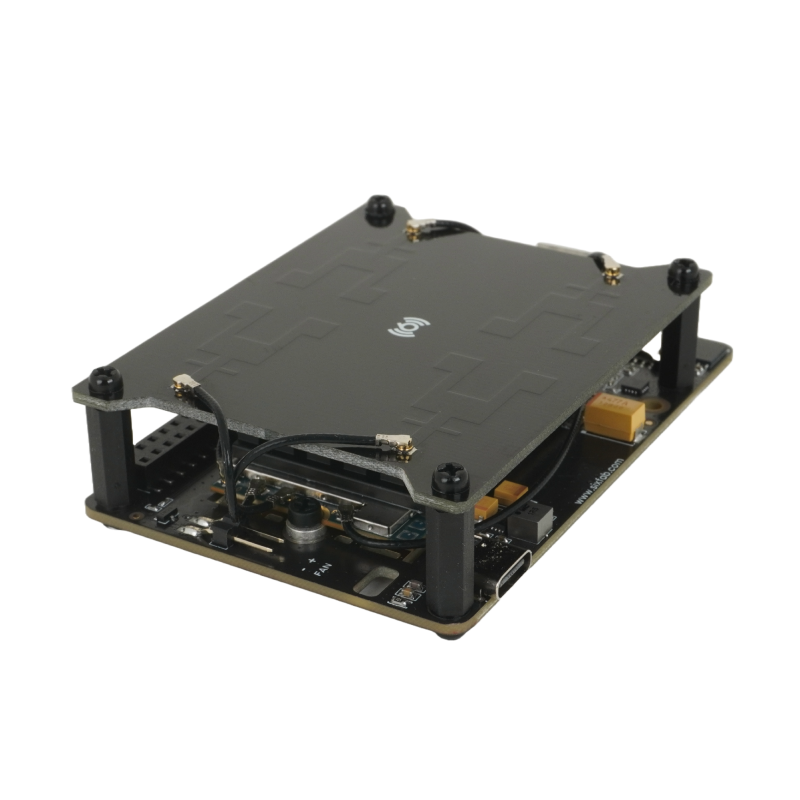

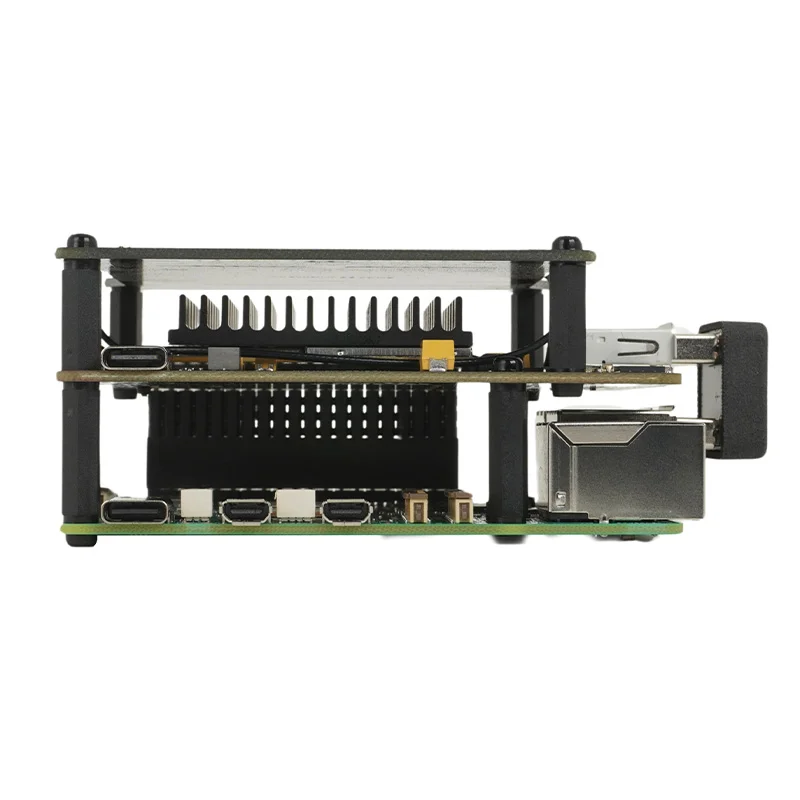

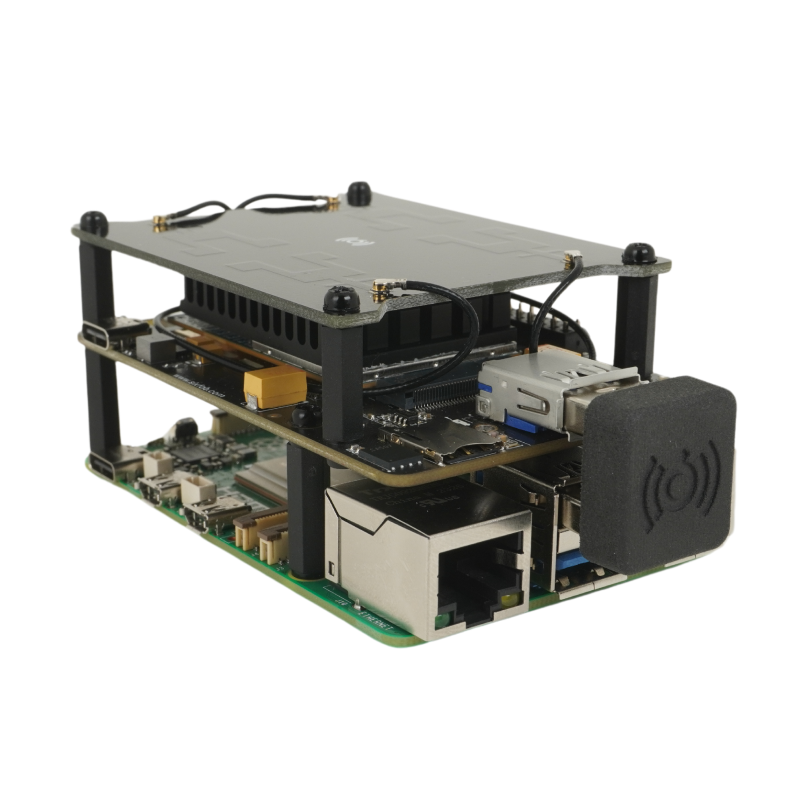

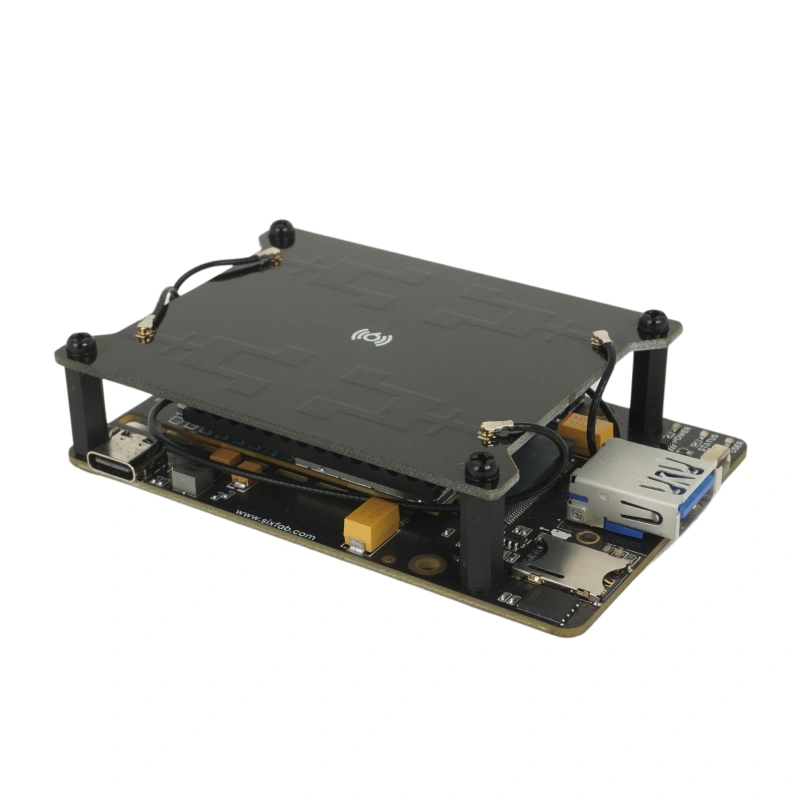

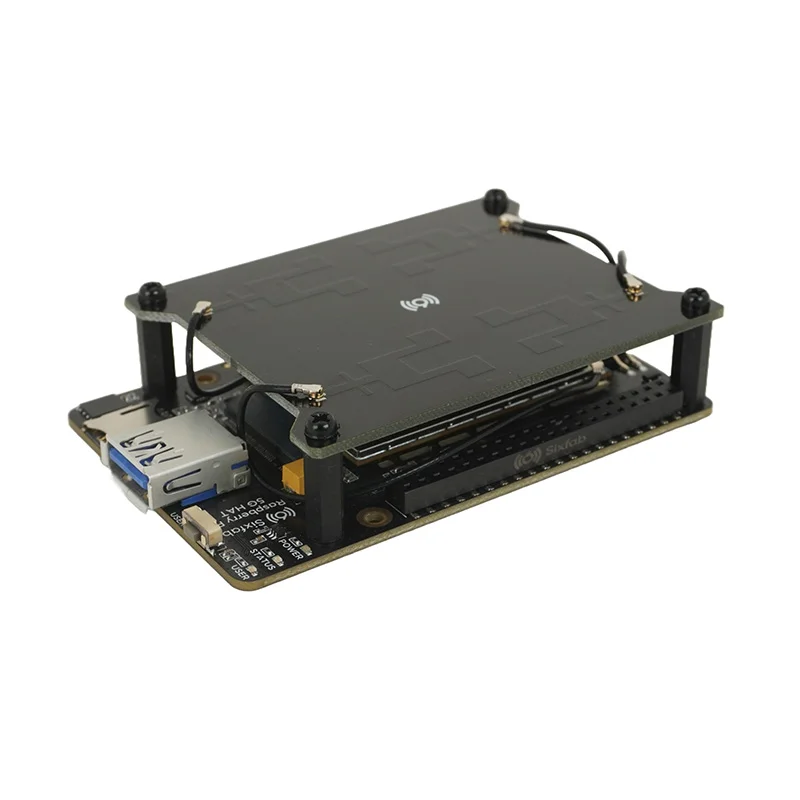

Name: Sixfab 5G Modem Kit for Raspberry Pi 5
SKU: DBHO-017
Price: 545.99 USD
Availability: InStock

Sixfab 5G Modem Kit for Raspberry Pi 5

UK Free Shipping

Description
Documents
Reviews

Hardware

· Sixfab 5G HAT Designed for Raspberry Pi 5 (Raspberry Pi 5 is not included)
· Integrated Quectel RM502Q-AE 5G Sub-6Ghz
· Patent-pending Sixfab designed internal antenna for Sub-6 frequency bands
· Sixfab USB 3.0 bridge connector

Middleware

· Recent drivers support Windows 10 and Linux (refer to modem datasheets)

Features:

Worldwide 5G coverage (SIM is not included)

NSA and SA modes supported, Sub-6 GHz only

Enhanced internal antenna performance for 5G frequencies

All inclusive high speed 5G/LTE indoor CPE/gateway

3x LEDs, help as indicators

High Speed USB 3.0 interface between modem and

Raspberry Рі 5

Supports TCP/UDP/FTP/HTTP/HTTPS/PING/SMS networks protocols

Low latency with 5G cellular connectivity

5G communication support

Specifications:

Best For	5G network test and application
Regions	Global (except China)
Max. Data Speeds	5G SA Sub-6: Max. 4.2 Gbps (DL)/Max. 450 Mbps (UL) 5G NSA Sub-6: Max. 5 Gbps (DL)/Max. 650 Mbps (UL) Depending on location, signal coverage, network operator limits and Raspberry Pi’s bandwidths, these data rates vary
Electrical	5V DC, 3A
Operating Temp.	-10°C to 50°C
Dimensions	88.1 x 57.7 x 21.7 mm
Approvals	FCC, IC, CE, UKCA are in progress
Compliance	RoHS
