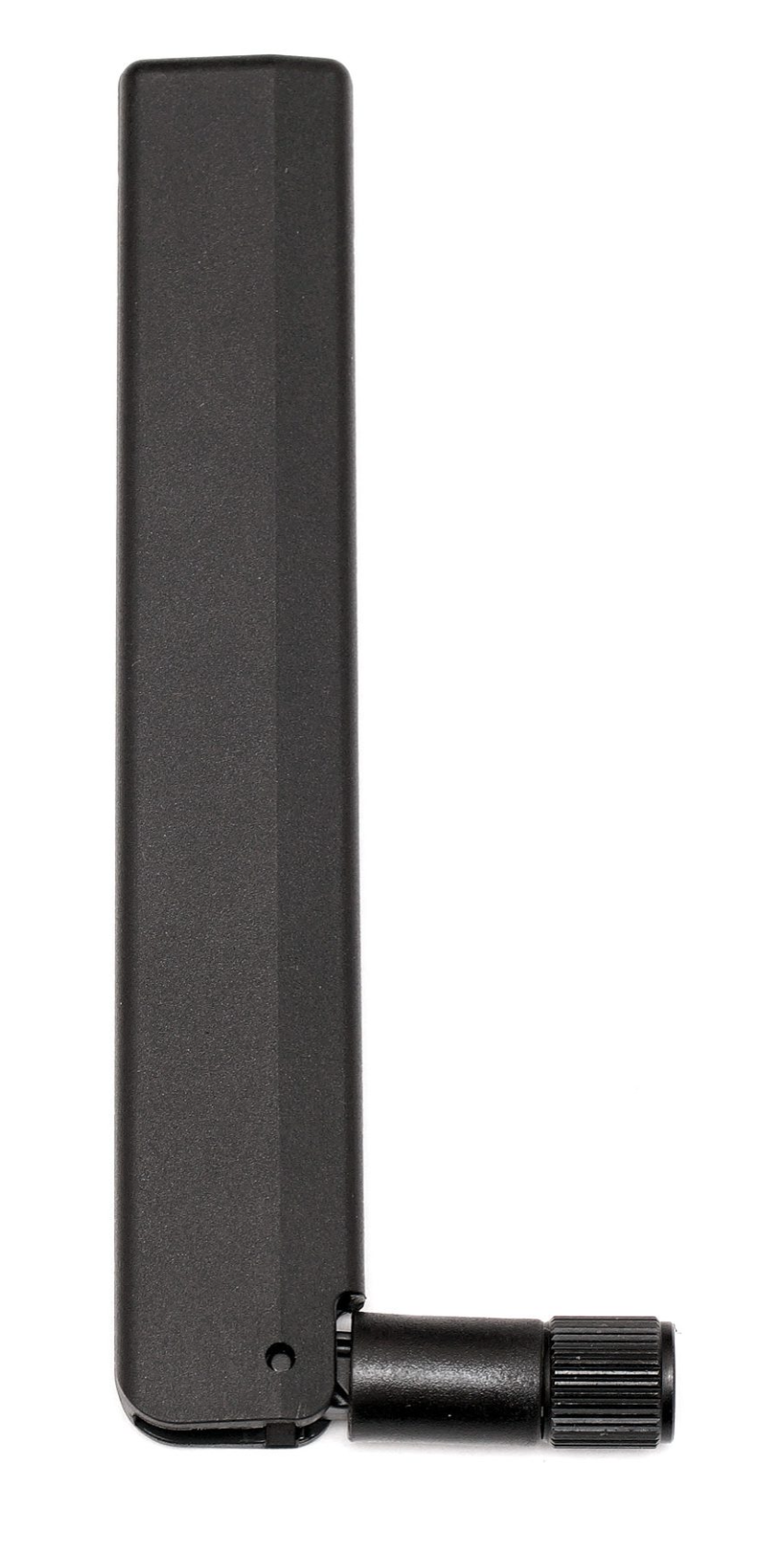

This versatile and powerful connector-mount antenna is engineered to deliver consistent and reliable performance for a wide range of wireless applications. It supports all major cellular standards, including 5GNR, 4G LTE, 3G, and 2G, ensuring backward and forward compatibility for your devices. The antenna’s robust, UV-stable housing and wide operating temperature range make it suitable for deployment in demanding environments.
Key Features
- Broad Cellular Compatibility: Fully supports 5G, 4G LTE, 3G, and 2G technologies, as well as CBRS, LPWA, and NB-IoT standards.
- Ultra-Wide Frequency Support: Operates across all key cellular bands from 617 MHz to 5925 MHz, ensuring comprehensive global coverage.
- Omni-Directional Performance: Provides a uniform 360-degree radiation pattern, simplifying installation as it captures signals from any direction without needing to be aimed.
- High Efficiency: Engineered for high efficiency, reaching up to 43.3%, ensuring a strong and stable link for data transmission.

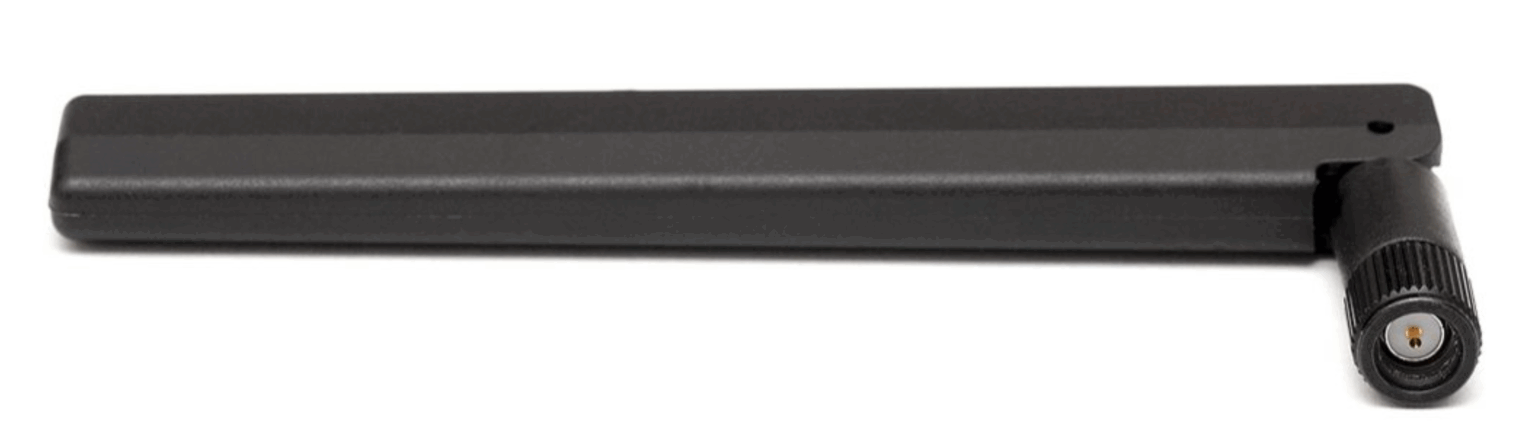

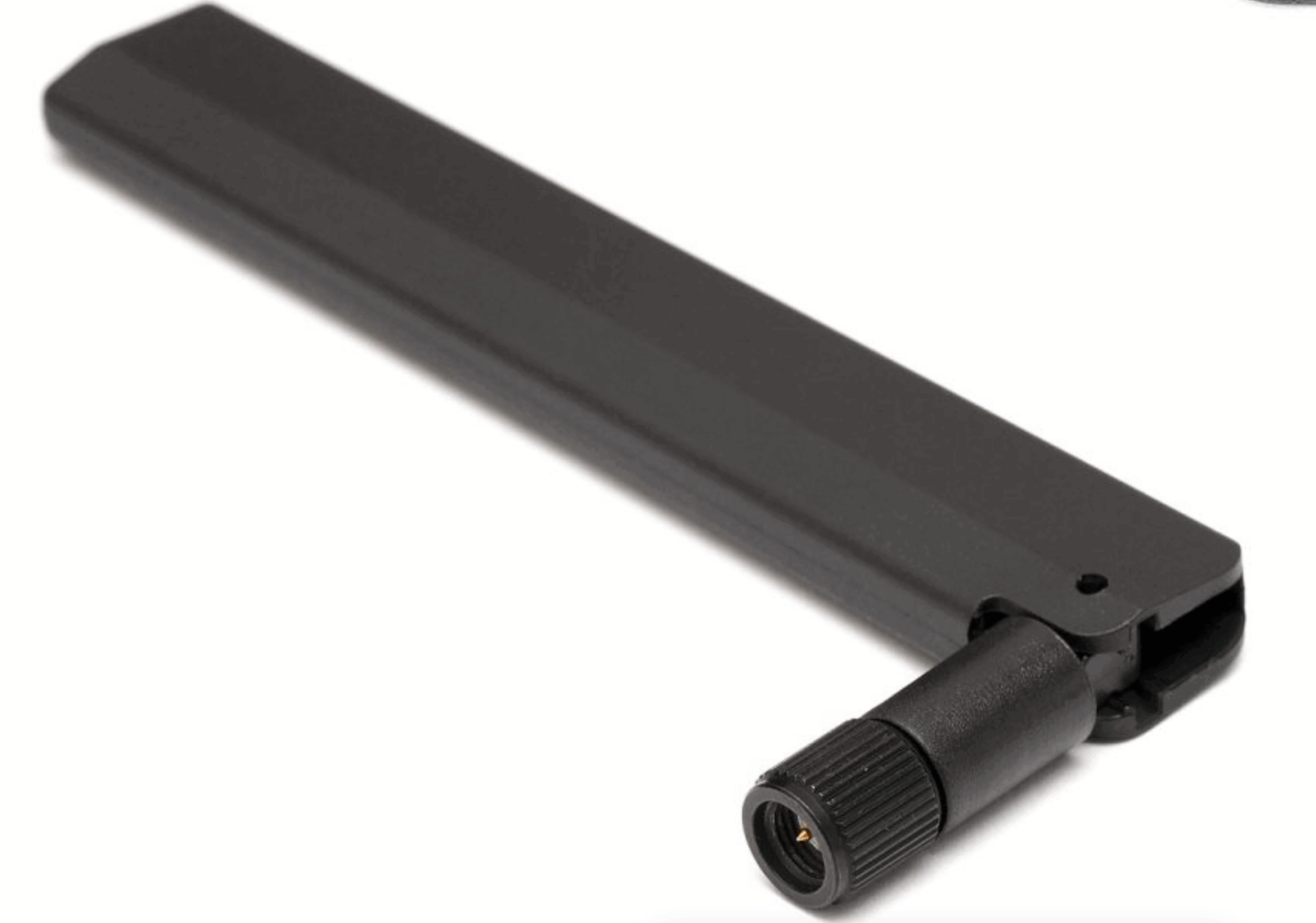

- Flexible Hinged Connector: The integrated hinged mechanism allows the antenna to be positioned straight, at a right angle, or at any point in between for optimal signal reception and to fit in tight spaces.
- Durable Construction: The radome is made from a black PC/ABS material that is UV stable, and the antenna is rated to operate in temperatures from -40°C to +85°C.
Specifications
| Frequency Bands |
617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz |
| Supported Technologies |
5G, 4G, 3G, 2G |
| Peak Gain |
Up to ~0.3 dBi |
| Efficiency |
Up to ~43.3% |
| VSWR |
≤ ~2.6:1 |
| Polarization |
Linear |
| Impedance |
50 Ohm |
| Max Input Power |
25 Watts |
| Connector |

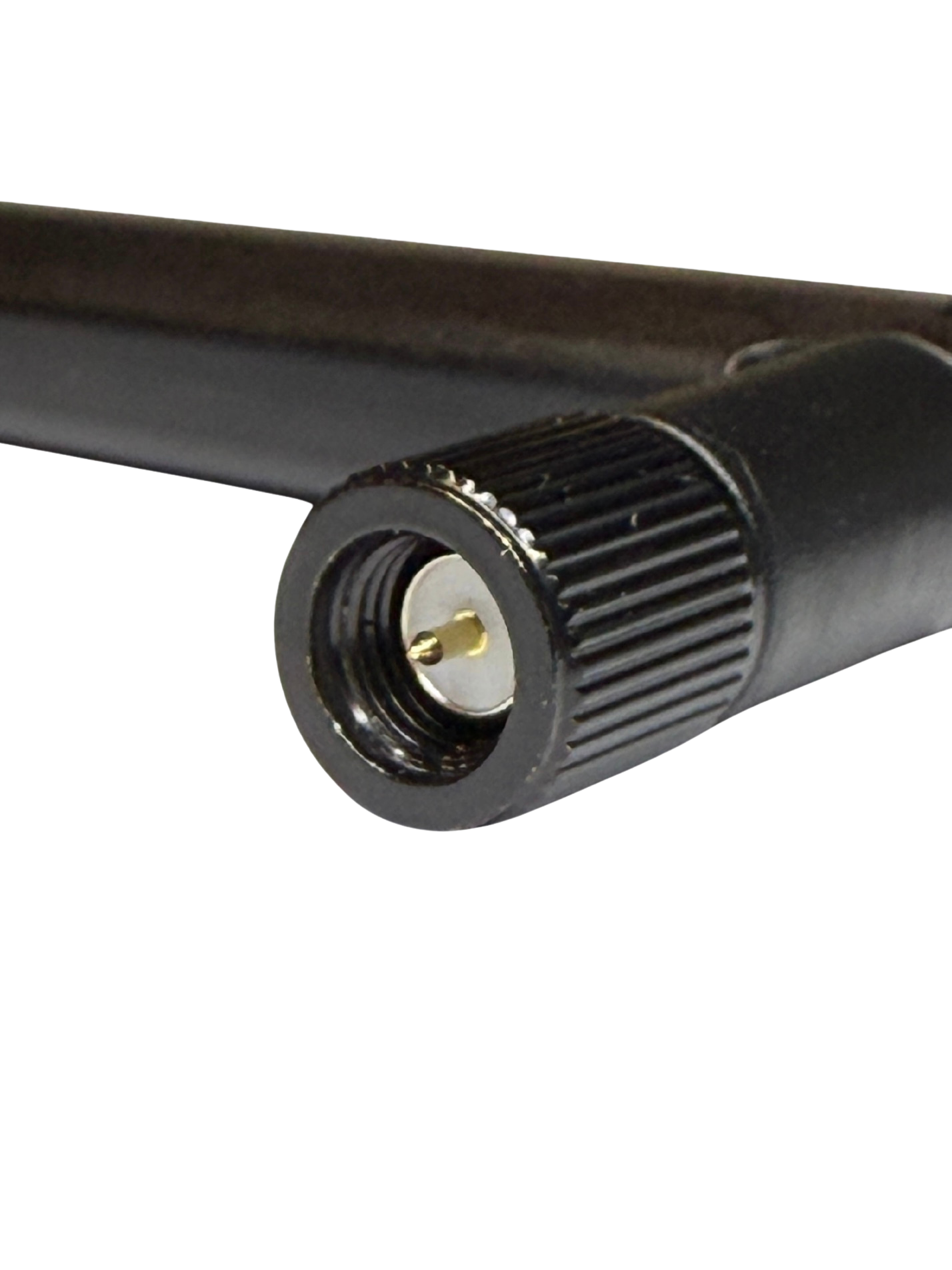

SMA-Male |
| Mounting Type |
Direct Connector Mount |
| Radome Material |
PC/ABS (UV Stable) |
| Operating Temperature |
-40°C to +85°C |
| Dimensions (Straight) |
135 mm x 19 mm x 10 mm |
| Dimensions (Right Angle) |
110 mm (H) x 42 mm (L) |
