| Key Features |
|
| On-boarding |
Zero-touch provisioning of device fleets on edge |
| Monitoring |
Monitor device health real-time to troubleshoot incidents |
| Remote Control |
Remote terminal and peripheral power control, reboot |
| Over-the-Air Update |
Update firmware, software, and OS remotely |
| Container Management |
Deploy and monitor application software to device groups |
| Self-healing |
Auto recovery from crashes, freezes to be resilient |
| Always Online |
Multi network and operator redundancy for maximum uptime |
| Mechanical & Environmental |
|
| Dimensions |
111.16 x 99.9 x 33 mm (4.37 x 3.93 x 1.30 inch) without antennas |
| Weight |
Approx. 457 grams (1 lb) |
| Case Material |
Full aluminum enclosure, top side passively cooled |
| Protection Class |
IP40 |
| Operating Temperature |
-20 °C to +60 °C (-4 °F to +140 °F) |
| Storage Temperature |
-40°C to +85 °C (-40 deg F to +185 deg F) |
| Max. Relative Humidity |
Up to 95%, non-condensing |
| Environmental |
Rugged, fanless design, suitable for industrial and harsh environments |
| Case Mounting Options |
DIN Mount (Optional), Wall Mount (Optional) |
| System |
|
| Processor Generation |
Raspberry Pi Compute Module 4 |
| Processor |
Broadcom BCM2711 Cortex-A72 (ARM v8) Quad-core ARM Cortex-A72 @ 1.5GHz |
| Memory |
8GB LPDDR4 (optional: 2GB, 4GB) |
| Storage |
32GB eMMC Flash storage (optional: 8GB, 16GB) |
| Real Time Clock |
CR1220 Coin Cell Battery |
| Power |
|

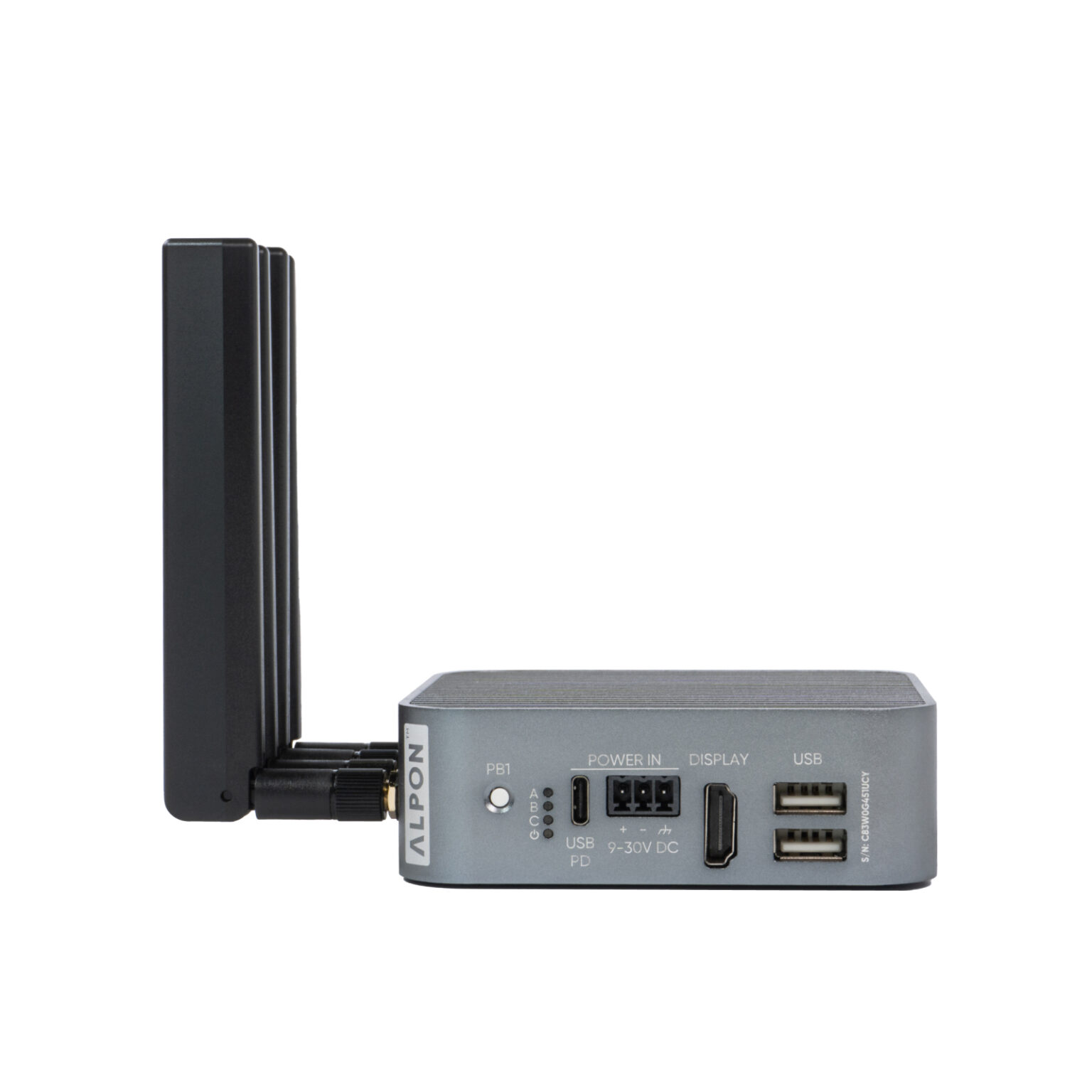

| Input Voltage & Power |
DC Input: 9-30V DC, 27W
USB PD: 15V DC 18A, 27W |
| Power Options |
USB-PD Type-C Input
Screw Terminal Block (9-30V DC)
POE+ IEEE 802.3at (Optional) |
| USB Output Voltage & Power |
USB 2.0 5V DC, 1A (Total) |
| Connectivity |
|
| Wi-Fi |
2.4GHz and 5.0GHz IEEE 802.11 b/g/n/ac Wireless |
| Bluetooth |
Bluetooth 5.0, BLE |
| Cellular Module |
4G/LTE Cat 4 |
| Coverage |
Global |

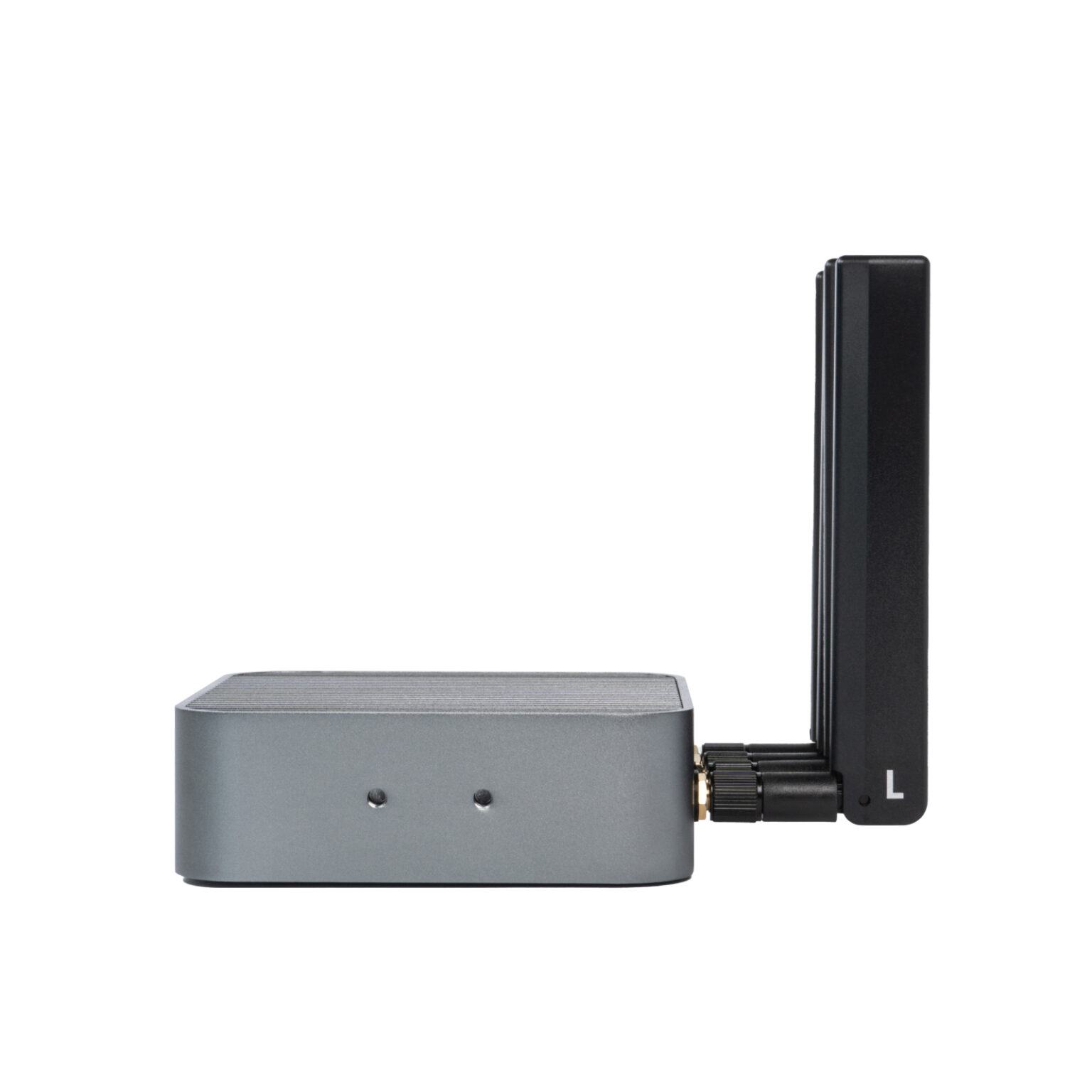

| Antennas |
2x Cellular (Main, Diversity)
1x GNSS
1x Wi-Fi
Outdoor IP67 Antenna (Optional)
3-meter cabled combination antenna with surface mount |
| Positioning |
GPS/GNSS, Cellular Geolocation |
| Frequency Bands |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B34/B38/B39/B40/B41/B66 |
| Data Speed |
LTE-FDD (Mbps): Max. 150 (DL)/Max. 50 (UL)
LTE-TDD (Mbps): Max. 130 (DL)/Max. 30 (UL) |
| Note |
This product supports only 4G/LTE networks, with no fallback to 2G/3G, and its performance on non-4G/LTE networks is not guaranteed. |

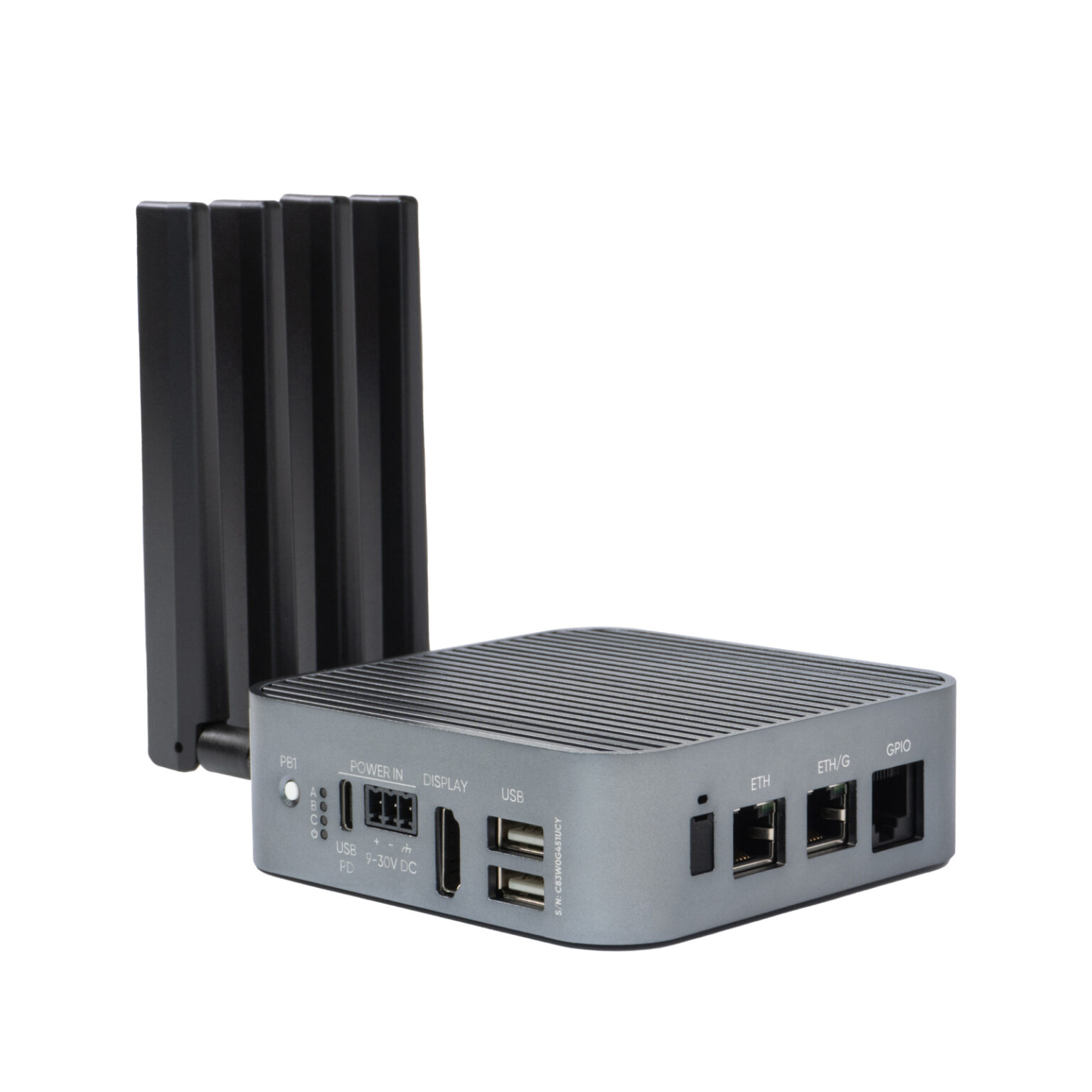

| Input/output |
|
| USB |
2x USB 2.0 High-Speed Stack Port |
| GPIO Port |
Access to 6x RPi GPIO Pins, GND, 5V DC Output (1A max.) |
| Button |
2x User Programmable Push Button |

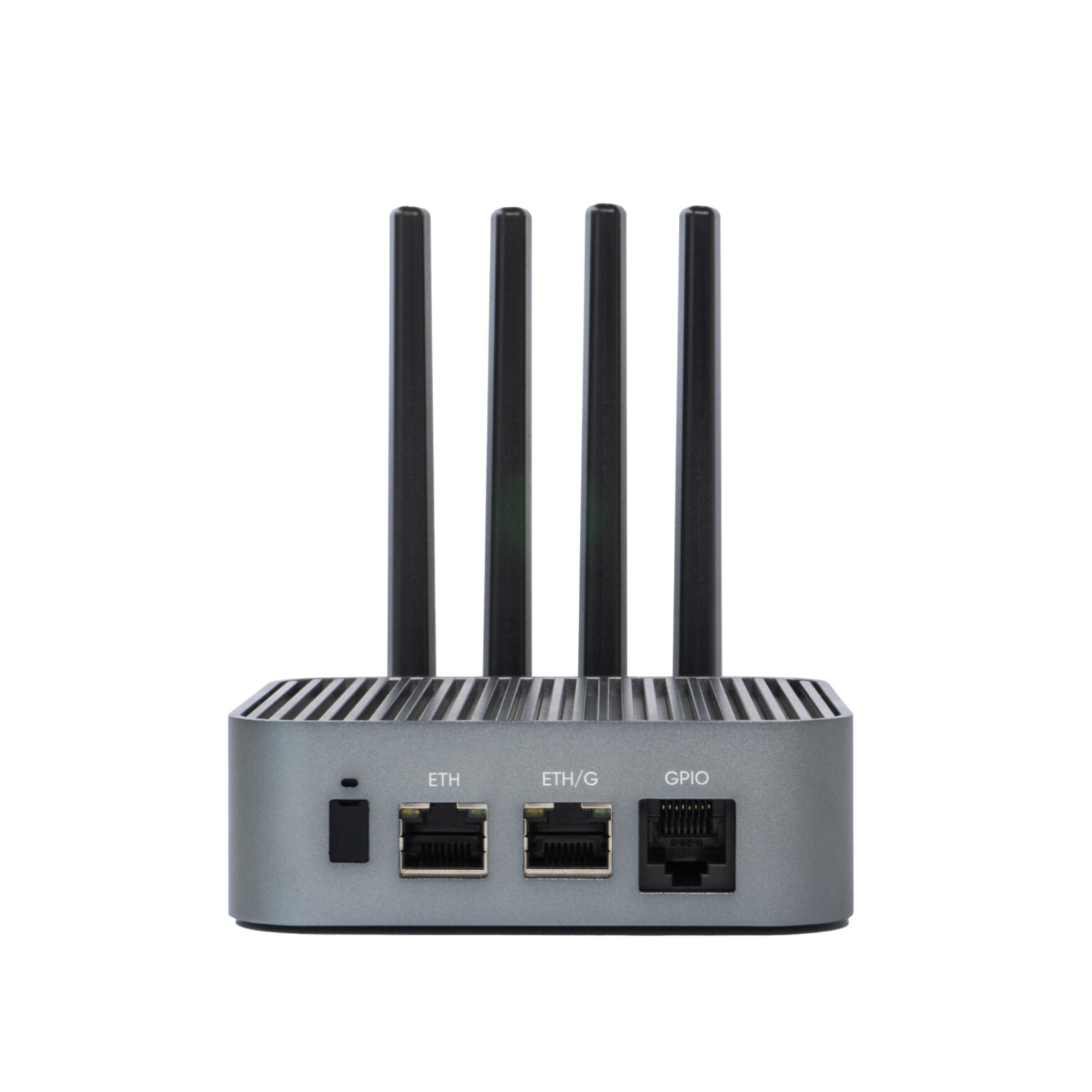

| Ethernet |
1x 100 Mbps LAN Port
1x 1 Gbps LAN Port*
*In some variants, the ETH/G port replaces the PoE port.
|
| LED Indicators |
1x Programmable RGB
1x Cellular Status
1x Connection Status
1x Power Status |
| Display |
1x HDMI 2.0 port (up to 4Kp30 supported) |
| Switch |
1x Boot/Burn, 1x Watchdog |
| Software |
|
| Pre-Installed OS |
Pre-installed Official Raspberry Pi OS with ALPON™ Edge Software; visual platform and API-driven
interaction with ALPON Cloud
|
| ALPON™ Edge Software Features |
Fleet Management, Device Management, Built-in Security, Multi-network support (Gigabit Ethernet, dual-
band Wi-Fi, LTE Cat 4) with automatic failover
|
| Security |
|
| TPM |
Infineon Technologies SLB 9670VQ2.0 TPM 2.0 module |
| Hardware Watchdog |
Monitors device operation and resets it in case of failu |
| Expansion and Features |
|
| SIM Type |
eSIM (eUICC) Consumer Profile Management, Remote Download & Switch |
| Supported Modules |
Supports ALPON™ Edge Add-on modules, multiple hardware expansions via GPIO and USB ports |
|
Regulatory Certifications
|
|
| Certifications |
CE, FCC, IC, UKCA, RCM, RoHS, WEEE, REACH |
