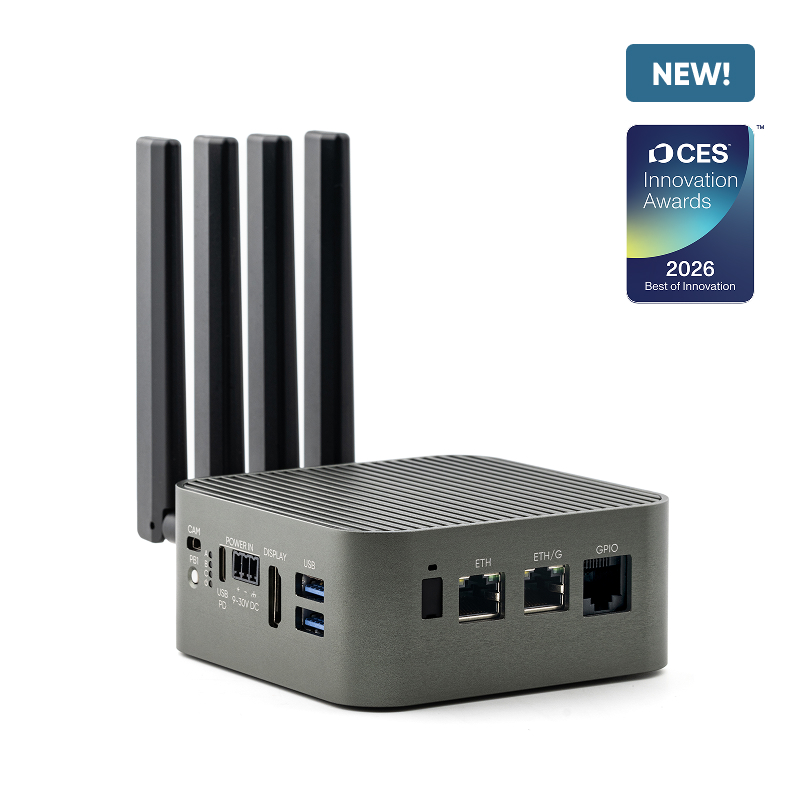

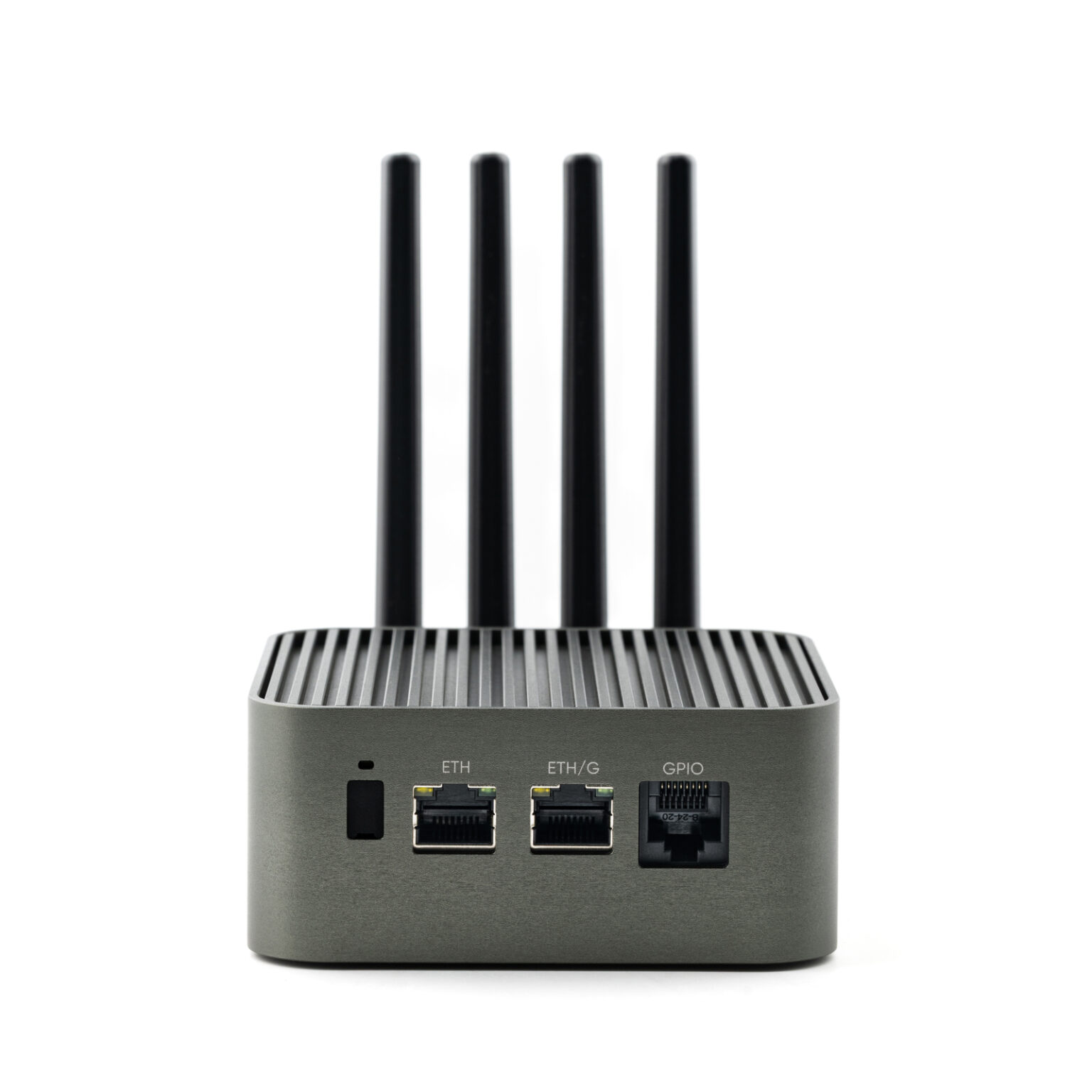

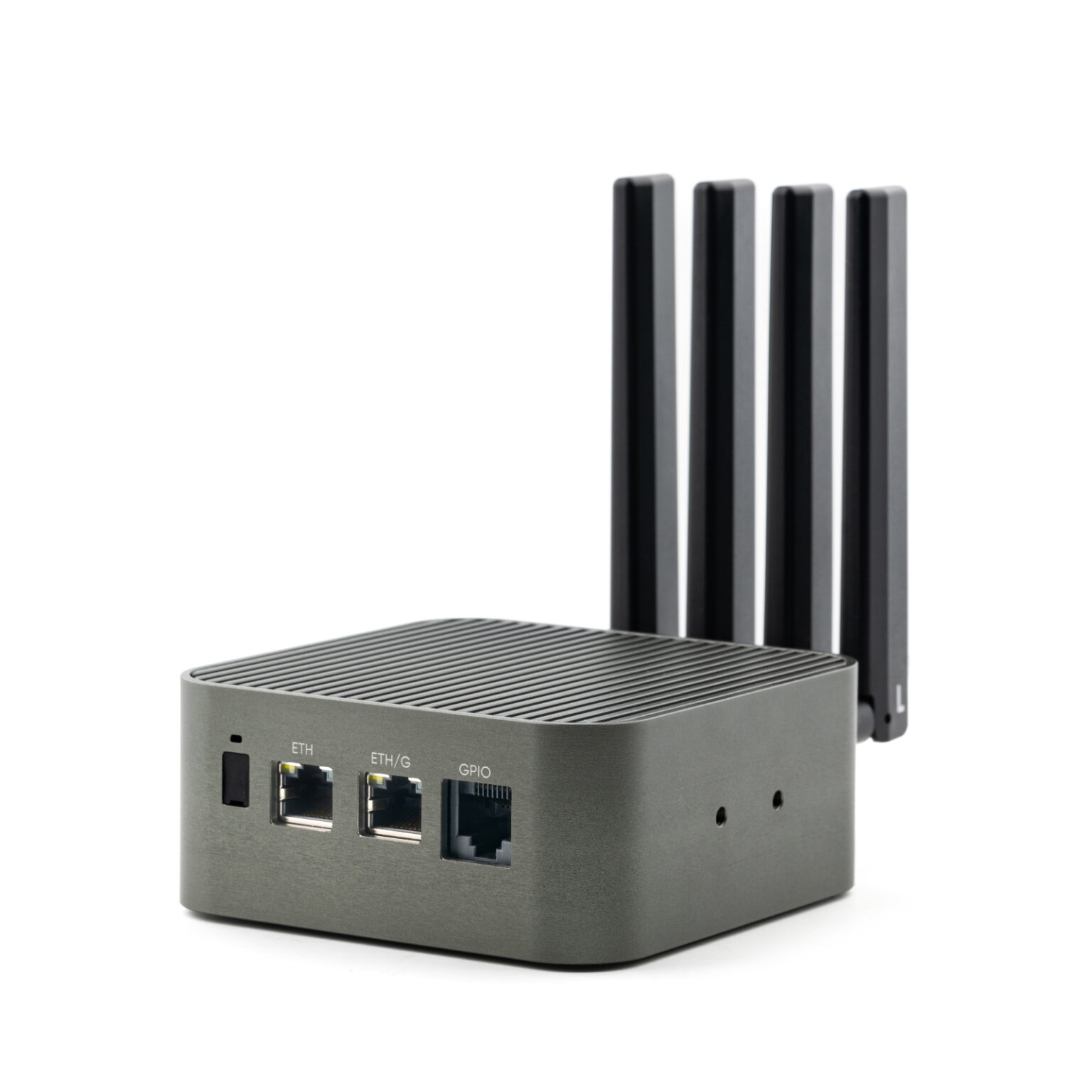

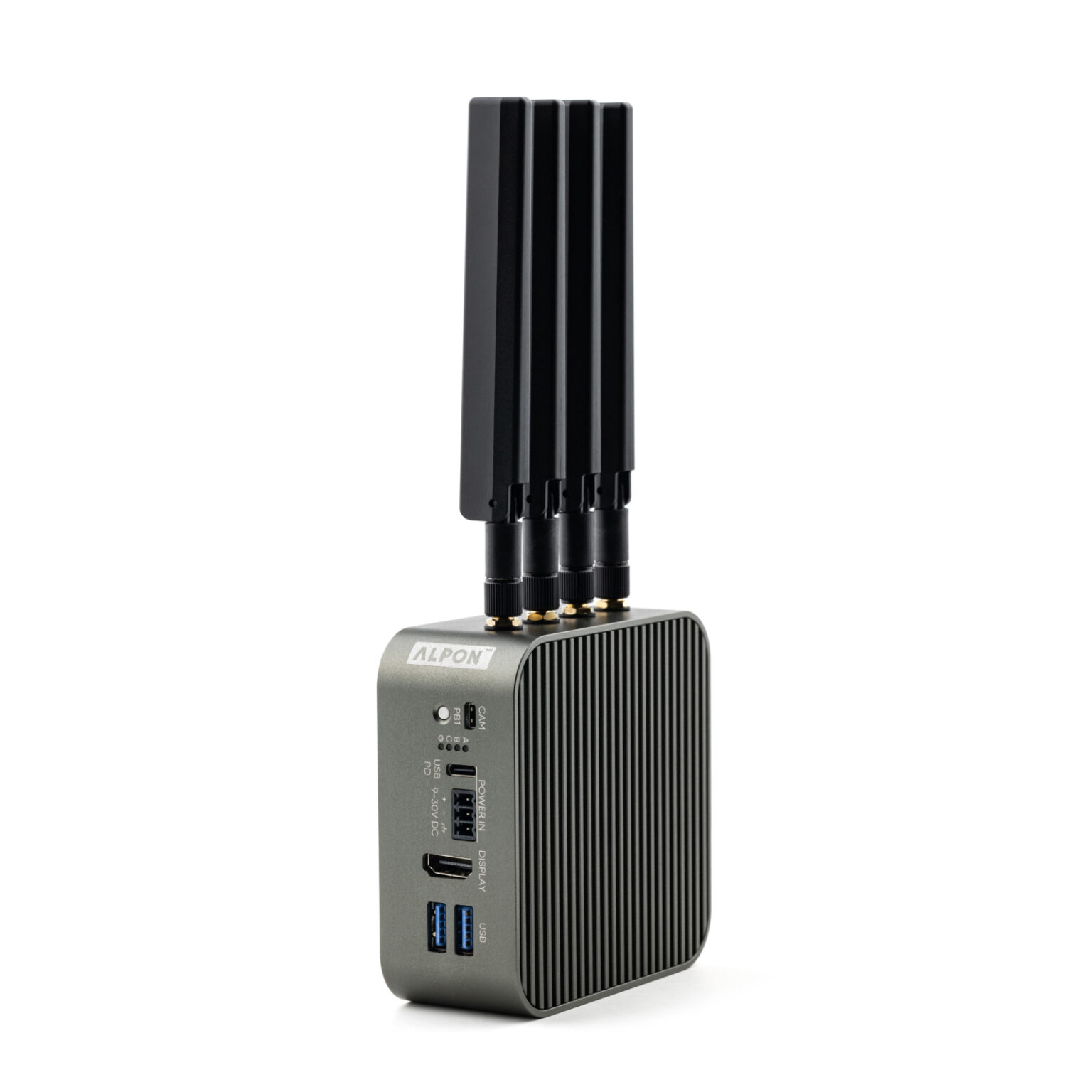

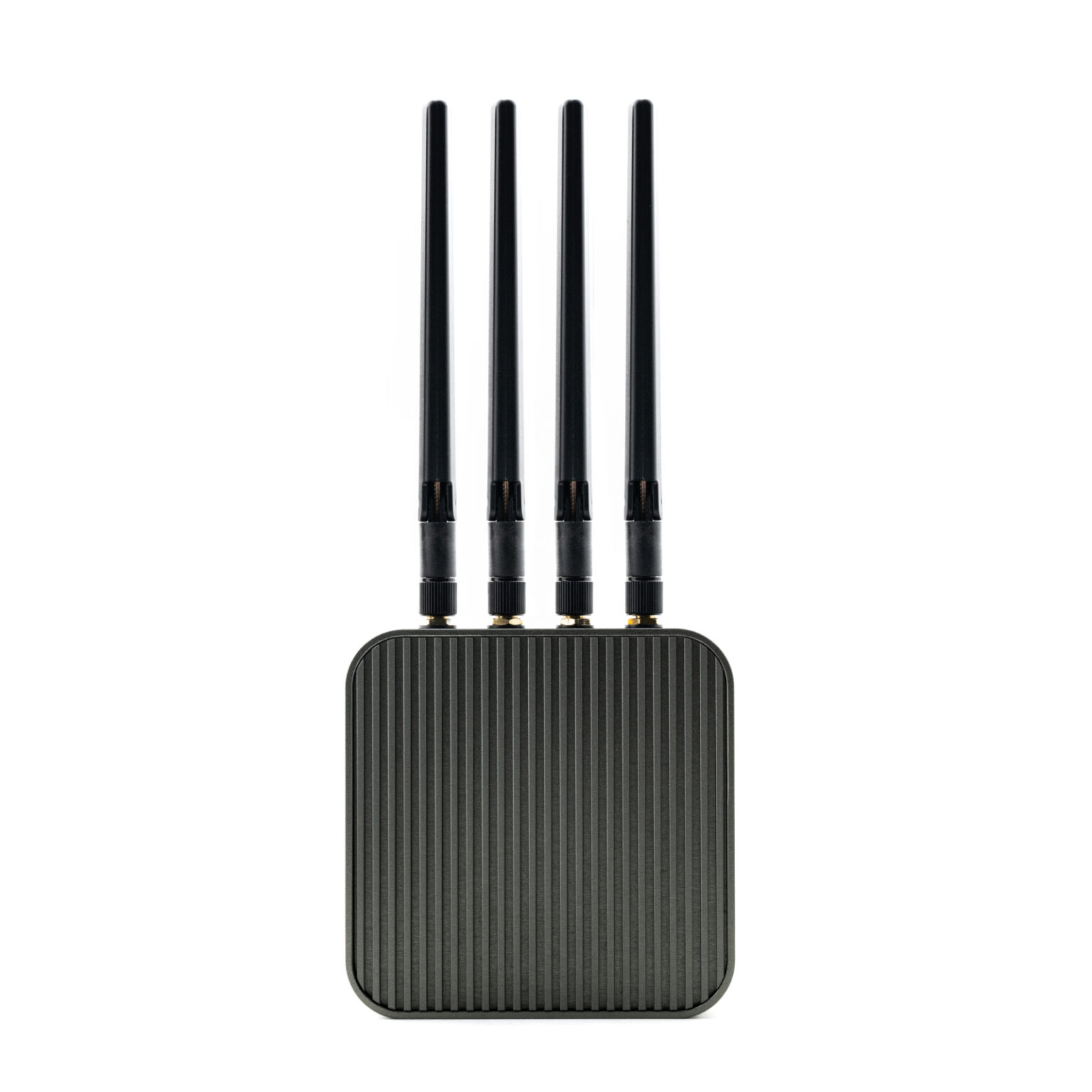

Sixfab ALPON X5 AI, Early Access Reservation Edge computer
ALPON X5 AI is a rugged, fanless edge AI computer powered by the Raspberry Pi Compute Module 5 and the DeepX DX-M1 accelerator, delivering up to 25 TOPS of on-device AI inference.
It features NVMe SSD storage, dual Ethernet ports, 4G LTE/eSIM connectivity and seamless integration with ALPON Cloud for remote management and OTA updates.
Perfect for industrial, robotics or smart IoT applications, this next-generation edge device enables real-time AI processing directly on-site.
Key Features of ALPON X5 AI
Explore next-generation edge computing capabilities — from real-time AI inference to industrial-grade reliability.
Unmatched AI Performance
- Up to 25 TOPS of on-device AI processing
- CSI camera port for vision tasks
- High-speed USB 3.0 connectivity
- NVMe SSD for scalable storage
Seamless Remote Management
- ALPON Cloud for fleet management
- OTA updates & remote control
- Scalable multi-device deployment
- Real-time system monitoring
Enhanced Compliance
- Extended temperature operation
- Robust EMC & safety certifications
- Certified for FCC, CE, UKCA, RoHS
- Optimized for low-latency processing
Industrial-Grade Reliability
- Fanless, rugged aluminum enclosure
- Multi-network support: Wi-Fi, LTE, eSIM
- TPM 2.0 hardware security module
- DIN rail & wall mount ready
Features:
| AI Processing |
CPU + NPU hybrid inferencing up to 25 TOPS |
| Computer Vision |
CSI port with low-latency on-device vision AI |
| Edge Connectivity |
Wi-Fi + eSIM + Dual Gigabit Ethernet |
| Storage & Data Logging |
NVMe SSD for high-speed data capture |
| Deployment Type |
Industrial, robotics and production-grade AI |
Specifications:
| Processor |
Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8)
SoC @ 2.4GHz – Raspberry Pi Compute Module 5
|
| RAM |
8GB, or 16GB LPDDR4-4267 SDRAM with ECC |
| Storage |
Compute Module 5 eMMC (Optional) + NVMe SSD |
| Connectivity |
Global Cat4 LTE
Wi-Fi 2.4/5GHz
Bluetooth 5.0 BLE
Gigabit 2x 1 Gbps Ethernet
|
| Power Input |
USB-PD Type-C Input
Screw Terminal Block (9-30V DC)
PoE+ IEEE 802.3at (Optional)
|
| Input Voltage & Power |
DC Input: 9-30V DC, 27W
USB PD: 15V DC 1.8A, 27W
|
| Positioning |
GPS/GNSS, Cellular Geolocation |
| Pre-Installed OS |
Raspberry Pi Compatible ALPON OS with DEEPX Runtime support |
| Operating Temp |
-20 °C to +60 °C (-4 °F to +140 °F) |
| Dimensions |
100 x 100 x 45 mm |
| Real Time Clock |
CR1220 Coin Cell Battery |
| Security |
Infineon Technologies SLB 9670VQ2.0 TPM 2.0 module |
| SIM Type & Size |
eSIM – eUICC SGP.22 compatible |
| Camera Module Interface |
1 × 4-lane MIPI port supporting both DSI(display) and CSI(camera) over mini HDMI port |
| Switch |
1x Boot/Burn (DIP Switch)
1x Watchdog Enable/Disable (DIP Switch)
|
| USB |
2x USB 3.0, 1x USB Type-C OTG (boot/burn/power) |
| Antennas |
2x LTE (Main, Diversity)
1x GNSS/GPS
1x WiFi/Bluetooth
|
| Mounting Options |
DIN Rail Mount (Optional)
Wall Mount (Optional)
|
| Network & Carrier |
PTCRB, Verizon*, AT&T*, T-Mobile*, GCF* |
| Certifications |
CE, FCC, IC, UKCA, RoHS, WEEE, REACH, ICASA*, RCM* |
