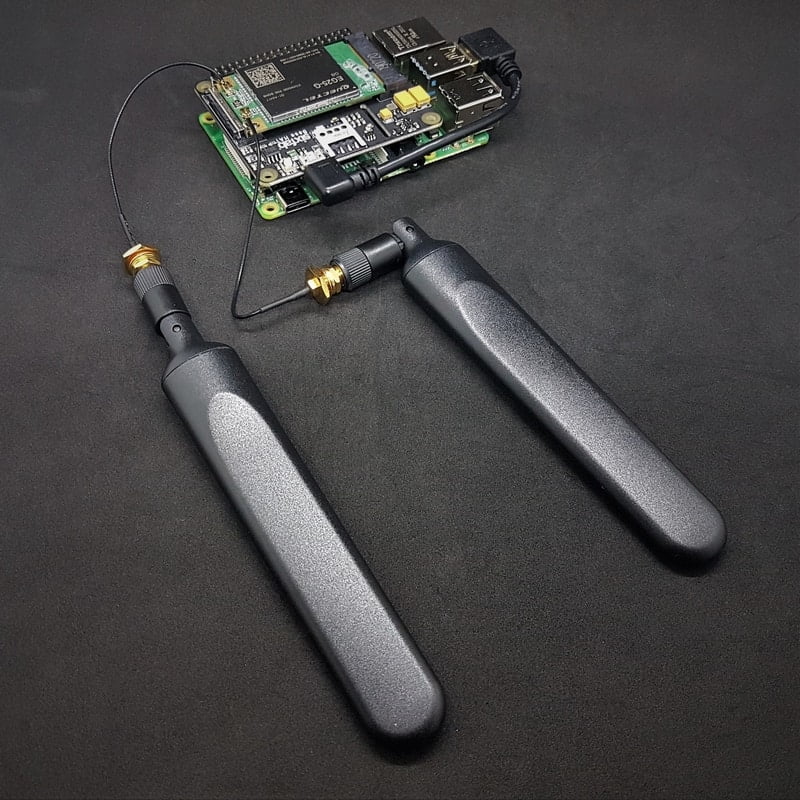

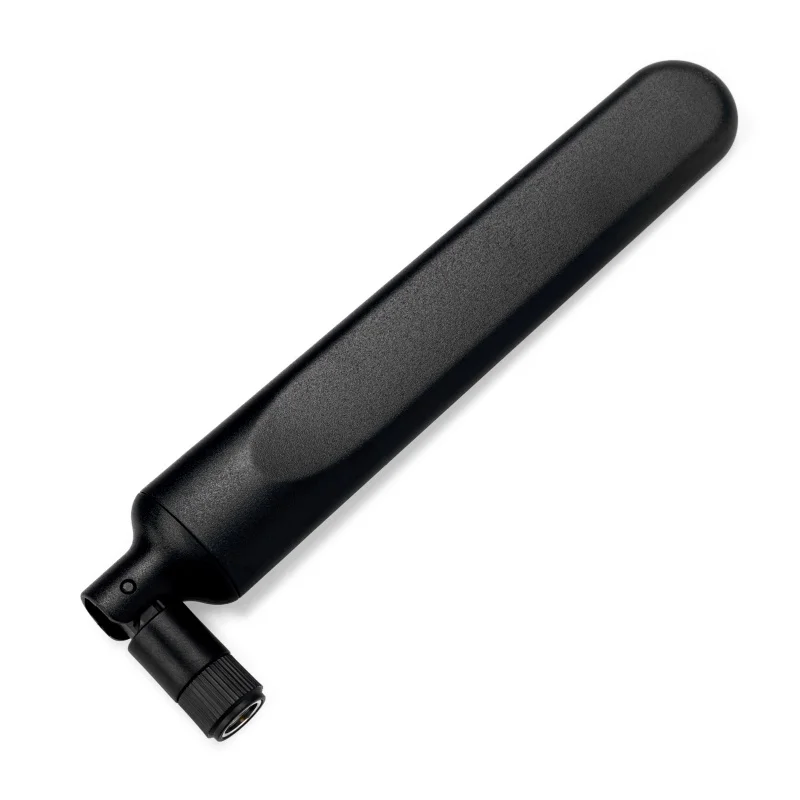

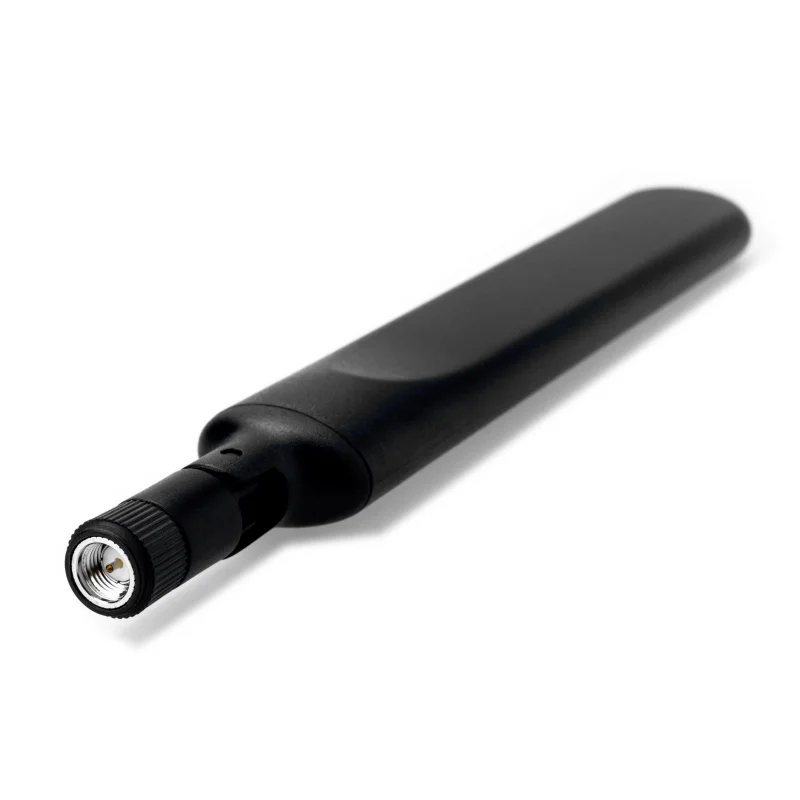

Sixfab LTE/5G High-Performance Antenna SMA

Constructed with an ergonomic blade design to blend well to the outside of a device.

Hinged swivel-mounted design to work with various orientations or in free space for ease of integration.

Performs great for LTE-M and 5G applications.

Rotatable connector mount for the user to find the best orientation for the use case.

SMA connector and most of the LTE socket modems have u.FL connector type. If the connector on the user’s device u.FL, SMA to u.FL adapter cables should be used.

Key Features & Benefits

Terminal antenna for 5G/4G/3G/2G applications.

LTE, HSPA+, WCDMA, CDMA, GSM, GPRS, DCS1800, PCS1900

LTE bands: 1-21; 23-30; 33-41, 71

High-performance dipole design

Cellular IoT: LTE-M (Cat-M1) and NB-IoT

• AT&T: bands 12, 17
• T-Mobile: band 71
• Verizon: band 13
• Europe: bands 8, 20
• Latin America: bands 5, 28
• Asia Pacific: bands 5, 8, 20, 28

Specifications:
