Sixfab Passive GNSS/GPS Antenna u.FL Plug – 100mm

If your GPS project keeps losing signal or shows inaccurate positions, you are not alone. The Sixfab Passive GNSS/GPS Antenna u.FL Plug - 100mm is a tiny, high-performance antenna that fits directly onto a u.FL connector. It captures signals from GPS, GLONASS, Beidou and Galileo satellites, giving you reliable location data. You need this antenna when weak reception or noisy data slows down your work or hobby.

Sixfab Passive GNSS/GPS Antenna u.FL Plug - 100mm

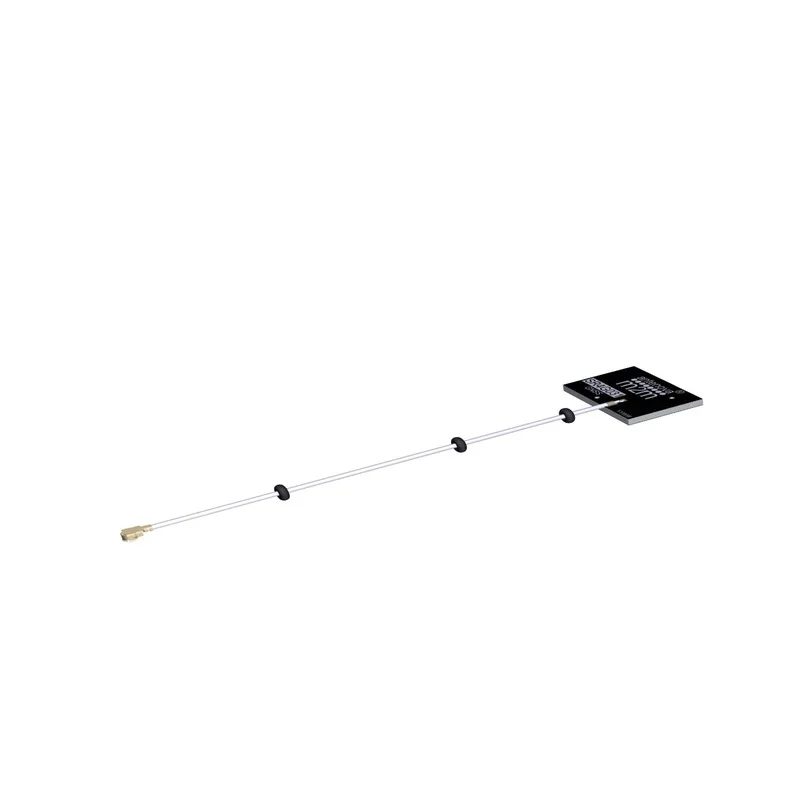

Many small boards and development kits have a u.FL port but no built-in antenna. Without a proper antenna the board cannot lock onto satellites, which means missed readings and wasted power. This matters to anyone who needs accurate tracking, mapping or timing. The Sixfab antenna solves the problem with a 100 mm cable, a self-adhesive mount and REFLECTOR technology that boosts signal strength while staying under 0.5 g.

Usages of Sixfab

The antenna works well on Raspberry Pi Zero, Arduino-compatible boards and any IoT device that uses a u.FL connector. It is ideal for drones that need precise navigation, for outdoor data loggers that record location, and for handheld GPS receivers used in field surveys. You can also mount it inside a weather-proof enclosure for remote monitoring stations.

Benefits

• Strong satellite reception even in urban canyons.
• Lightweight design keeps the overall device weight low.
• Easy self-adhesive mounting saves installation time.
• Broad frequency range supports all major GNSS constellations.
• Durable construction works from -40 C to +85 C.

Key Features

• REFLECTOR technology for higher gain.
• Supports GPS, GLONASS, Beidou and Galileo.
• 1.13 mm diameter RF cable with IPEX MHF connector.
• Self-adhesive mount on FR4 using 3M 468MP.
• Linear polarization for stable signal capture.
• 50 impedance matches most GNSS modules.
• Frequency range 1559-1609 MHz.
• Dimensions 23 16 1.6 mm, cable length 100 mm.
• Weight less than 0.5 g.
• RoHS compliant for safe use.

Specifications
