Key Features & Benefits

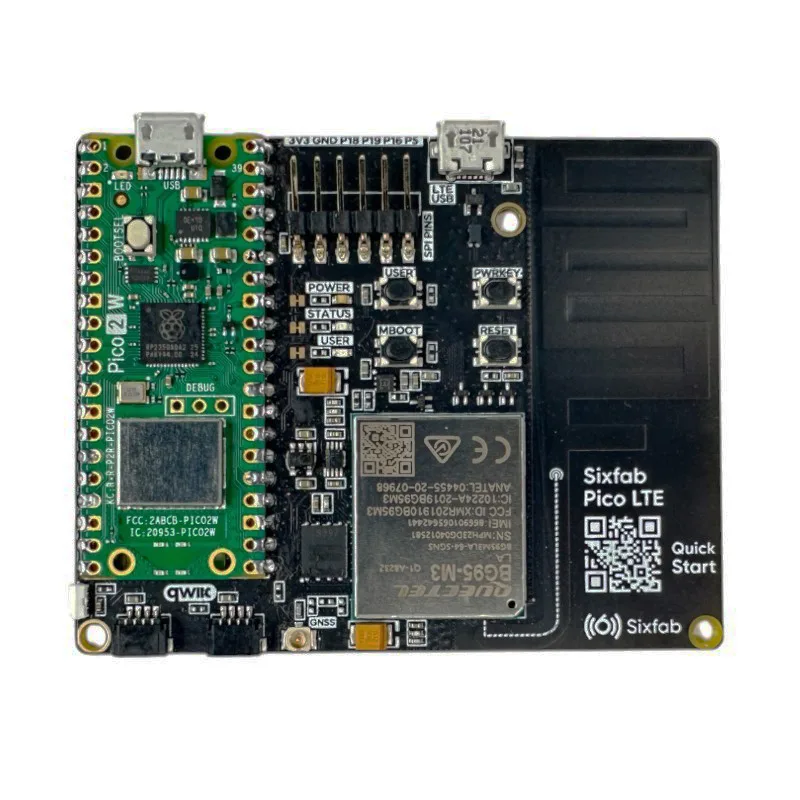

New version of Sixfab Pico LTE, updated with Pico 2 W
Soldered Raspberry Pi Pico 2 W onto the PCB for seamless integration
Supports CAT-M1 cellular IoT global connectivity with Quectel BG95-M3 module
Additional micro USB connector for easy firmware and modem debugging during development
Onboard LTE antenna for optimal performance. Also includes a uFL connector for passive GPS/GNSS antenna (GPS/GNSS antenna not included. Need to purchase separately. You can find compatible antenna.
Includes a Neopixel LED, user button, user LED, LTE Status LED, Qwiic connector, and Pico W reset button to enhance user interaction for prototyping and testing
Embedded SIM with MFF2 form factor allows fast connectivity to global cellular networks via Sixfab Connectivity Services
Pre-integrated with IoT platforms and services such as AWS IoT, Azure IoT, Telegram API, ThingSpeak, Slack API, Scriptr.io and more.
What’s the differences from older version Sixfab Pico LTE?
- Enhanced Processing Power: Flexibility with the RP2350 chip, offering a choice between 2 Arm Cortex-M33 cores or 2 Hazard3 RISC-V cores.
- High Speed: Each core operates at up to 150 MHz.
- Improved Security: Features Arm TrustZone for advanced security.
- Bluetooh 5.2: Better compatibility for newest IoT ecosystems.
- Memory: Increased memory.
- SHA-256 Accelerator: Enhances secure communication with fast cryptographic hashing.
- TRNG: Generates unpredictable encryption keys for strong data security.
- Secure Boot: Ensures only authenticated firmware runs, preventing tampering and unauthorized access.
Specifications:
| Best For |
Kickstarting Raspberry Pi Pico 2 W based remote applications |
| Regions |
Global |
| Max. Data Speeds |
CAT-M1: 588 kbps (DL) / 1119 kbps (UL) |
| Power and Data |
Pico 2 W micro USB connector |
| Operating Temp. |
-20°C to 70°C |
| Board Dimensions |
60 mm x 75 mm |
| Onboard Interfaces |
NeoPixel LED, user LED, user button, LTE status LED,
Qwiic Connector (x2), SPI (Camera Support)
|
| Compliance |
RoHS |
