Overview

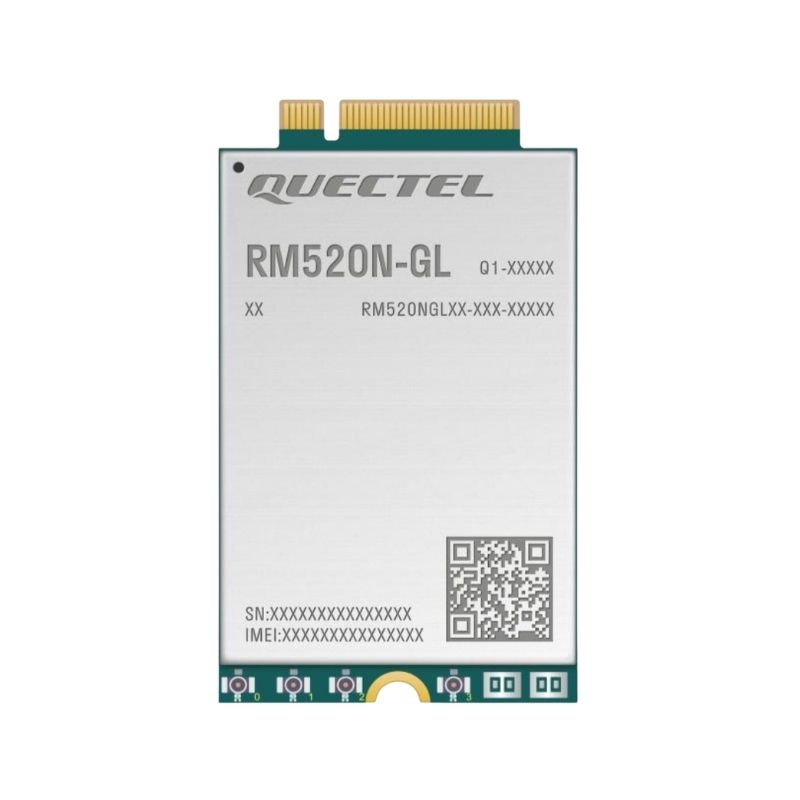

The Quectel RM520N-GL is a cutting-edge 5G IoT module optimized for industrial and commercial applications. Compliant with the 3GPP Release 16 standard, this module delivers ultra-reliable, low-latency communication (URLLC) and massive connection density.
Designed in the industry-standard M.2 form factor, the RM520N-GL is the perfect solution for upgrading from LTE-A to 5G. It supports both 5G NSA and SA modes, ensuring compatibility with current infrastructure while future-proofing your devices for standalone 5G networks. With global band support, this single module covers nearly all mainstream carriers worldwide, making it ideal for global deployments in industrial routers, home gateways, robust laptops, and digital signage.
Key Features & Benefits
- Global Connectivity: One module for the world. Supports comprehensive 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA bands.
- 3GPP Release 16: Features the latest 5G enhancements for better efficiency and coverage.
- High-Speed Data:
- 5G SA: Max DL 2.4 Gbps / UL 900 Mbps.
- 5G NSA: Max DL 3.4 Gbps / UL 550 Mbps.
- LTE: Max DL 1.6 Gbps / UL 200 Mbps.
- Precision GNSS: Integrated multi-constellation receiver (GPS, GLONASS, BDS, Galileo, QZSS) for fast and accurate positioning in any environment.
- Versatile Interfaces: Supports USB 3.1/3.0/2.0 and PCIe 3.0 for flexible integration with Windows, Linux, and Android systems.
- Industrial Grade: Operates reliably in extreme temperatures ranging from -40°C to +85°C.
- Easy Migration: Pin-to-pin compatible with Quectel’s RM502Q-AE (5G) modules.
Specifications:
| Best For |
5G IoT/eMBB applications |
| Regions |
Global |
| Max. Data Speeds |
5G SA Sub-6: Max DL 2.4 Gbps / UL 900 Mbps |
| |
5G NSA Sub-6: Max DL 3.4 Gbps / UL 550 Mbps |
| |
LTE: Max DL 1.6 Gbps / UL 200 Mbps |
| 5G NR Bands (NSA) |
n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/
26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
|
| 5G NR Bands (SA) |
n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/
38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
|
| LTE Bands |
FDD: B1-B5, B7, B8, B12-B14, B17-B20, B25, B26, B28-B30, B32, B66, B71 |
| |
TDD: B34, B38-B43, B46 (LAA), B48 |
| Positioning |
GPS, GNSS, BDS, Galileo, QZSS |
| Electrical |
3.135–4.4 V, typical 3.7 V |
| Operating Temperature |
-30 °C to +75 °C , |
| |
-40 °C to +85 °C (Extended) |
| Dimensions |
30.0 × 52.0 × 2.3 mm |
| Regulatory |
CCC, GCF, CE, PTCRB, FCC, IC, Anatel, KC, NCC, JATE, TELEC,
RCM, ANRT, CoC, NTRA, SRRC, NAL, SRRC, NAL, UKCA
|
| Compliance |
RoHS |
| Carrier Certifications |
America: Verizon/AT&T/T-Mobile |
| |
Australia: Telstra |
