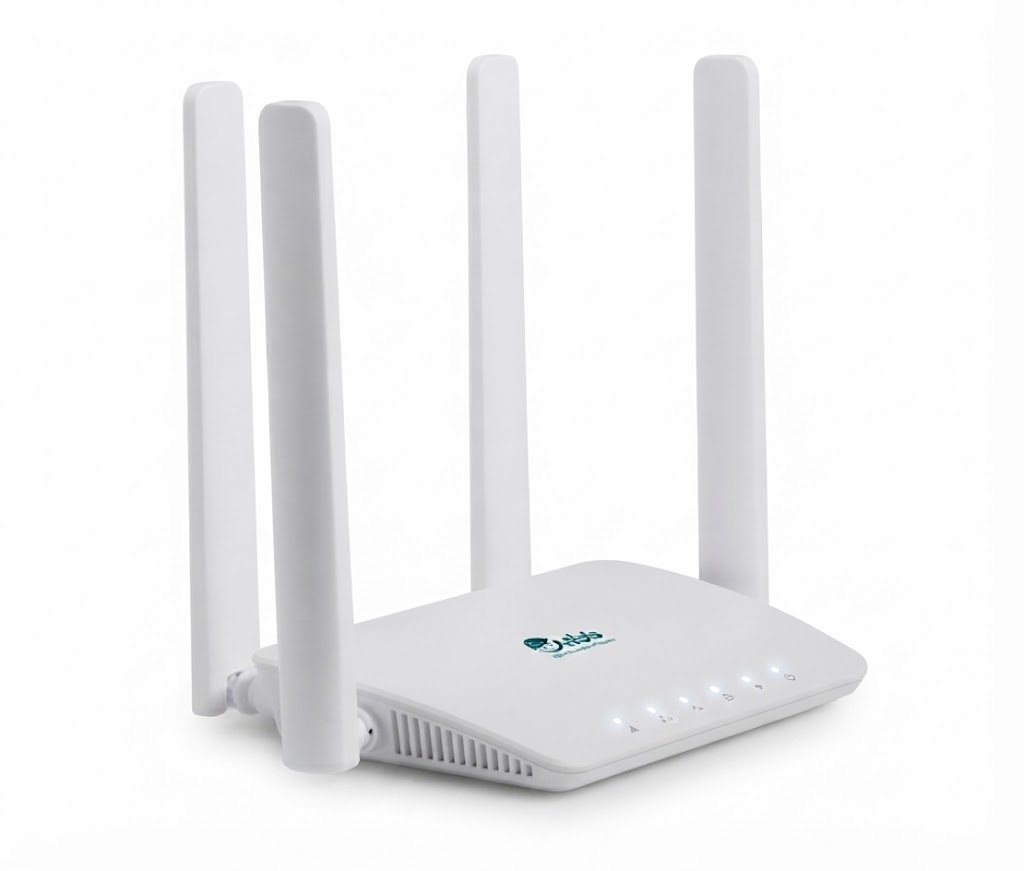

SmileMbb XMC5151, Next Generation 5G Indoor CPE WiFi Router
The SmileMbb XMC5151 is a Next Generation 5G Indoor CPE WiFi Router designed to provide high-speed wireless connectivity through 5G, 4G, and 3G networks. It combines cellular WAN connectivity with WiFi 6 technology in a compact 15010530mm design weighing about 250g. With support for 2.4GHz and 5.8GHz WiFi, the router is suitable for indoor internet access, home networking, small offices, and other connectivity applications.
The XMC5151 supports WiFi 6 on both wireless bands, with an internal 1 x 1 SISO antenna on 2.4GHz and 5.8GHz. The 2.4GHz wireless data rate reaches up to 286.8 Mbps, while the 5.8GHz band supports up to 600.5 Mbps. Its 1GE*RJ45 port can support WAN/LAN Self-Adapter, providing a wired network connection alongside wireless connectivity.
The router supports 5G NR NSA and SA networks with a broad selection of frequency bands, together with FDD LTE, TDD LTE, and WCDMA support. It uses Release 15 3GPP technology and supports 5G NR bandwidths from 5/10/15/20/25/30/40/50/60/80/90/100 MHz. The listed 5G data rate reaches up to 2.6 Gbps DL and 650 Mbps UL in NSA mode, while SA supports up to 2 Gbps DL and 1 Gbps UL.
The SmileMbb XMC5151 includes four external 5G antennas and supports advanced network functions for flexible connectivity management. Features include automatic APN matching according to USIM, Auto Data Connection, PIN/PUK Management, Network Mode Selection, IPv4/IPv6, VPN Pass through, DHCP Server, Dynamic IP, Static IP, UPnP, DMZ, Firewall, Port Forwarding, DDNS, NAT, Access Control, and Local Management.
The router provides a 4FF nano SIM slot, USB Type C for FW debug or ECM modem (USB RNDIS), and a 12v/1.5A recommended power interface. Multiple LED indicators provide information for power, WiFi, data, WAN/LAN, RJ11, and 3G/4G/5G network status. With operating temperatures from -30°C to 65°C, 5% to 90% humidity, TR069/FOTA management, and USB/FOTA firmware upgrades, the XMC5151 supports practical indoor deployment and ongoing device management.
Key features
-
Next Generation 5G Indoor CPE with 3G, 4G, and 5G WAN support
-
WiFi 6 connectivity on 2.4GHz and 5.8GHz bands
-
2.6 Gbps DL and 650 Mbps UL 5G NSA data rate
-
4 External Antennas for 5G connectivity
-
1GE*RJ45 with WAN/LAN Self-Adapter support
-
4FF nano SIM slot with USB Type C interface
-
IPv4/IPv6, VPN Pass through, DHCP, NAT, Firewall, and DDNS
-
TR069/FOTA management with USB/FOTA firmware upgrade
SPECIFICATION
| Technical Specifications |
|
| Dimension |
150*105*30mm |
| Net Weight |
about 250g |
| Working Temp |
-30°C to 65°C |
| Storing Temp |
-40°C to 70°C |
| Humidity |
5% to 90% |
| AC adapter |
12V/1.5A |
| Buttons |
Reset/WPS, Restore Factory Settings or active WPS |
WLAN Feature 2.4G WIFI
|
|
| Chipset |
EA6521QF |
| Frequency |
2.4GHz(2400 - 2483.5 MHz) |
| Protocol |
802.11b/g/n/ac/ax, 40MHz; WIFI 6 |
| Channel |
1~13 |
| Antenna |
Internal, 1 x 1 SISO |
| Data Rate |
802.11b:Up to 11 Mbps
802.11g:Up to 54 Mbps
802.11n:Up to 150 Mbps
802.11ac:Up to 200 Mbps
802.11ax:Up to 286.8 Mbps |
| Transmit Power |
20±2dBm @ 802.11b
18±2dBm @ 802.11g
16±2dBm @ 802.11n
15±2dBm @ 802.11ac
12±2dBm @ 802.11ax |
| Receiver input level sensitivity |
<-88dBm at the antenna port,11Mbps @ 802.11b
<-74dBm at the antenna port,54Mbps@ 802.11g
<-70dBm at the antenna port,150Mbps @ 802.11n(HT40)
<-65dBm at the antenna port,200Mbps @ 802.11ac(HT40)
<-60dBm at the antenna port,286.8Mbps @ 802.11ax(HT40 |
5G/4G/3G WAN Feature
|
|
| Chipset |
UDX710 |
| 3GPP release |
Release 15 |
| Frequency Bands |
5G NR NSA: n1/n3/n7/n20/n28/n38/n40/n41/n77/n78
5G NR SA:
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n66/n77/n78
FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
TDD LTE: B38/B40/B41
WCDMA:B1/B2/B5/B8 |
| Bandwidth |
5G NR:5/10/15/20/25/30/40/50/60/80/90/100 MHz, LTE Band:1.4/3/5/10/15/20 MHz |
| Modulation |
5G NR: UL and DL: 256QAM
LTE: UL: QPSK, 16QAM, 64QAM；DL: QPSK, 16QAM, 64QAM,
256QAM
WCDMA: QPSK, 16QAM and 64QAM |
| 5G Antenna |
|
| 5G Antenna |
4 External Antennas |
| RF Power Level |
• Power Class 3 (23 dBm ±2 dB) for 5G NR
n1/n3/n5/n7/n8/n20/n38/n40/n41/n66
• Power Class 3 (23 dBm +2/-2.5 dB) for 5G NR n28
• Power Class 3 (23 dBm +2/-3 dB) for 5G NR n77/n78
• Power Class 2 (26 dBm +2/-3 dB) for 5G NR n41/n77/n78
HPUE
• Power Class 3 (23 dBm ±2 dB) for LTE
B1/B2/B3/B4/B5/B7/B8/B20/B28/B38/B40/B41/B66
• Power Class 3 (23 dBm ±2 dB) for UMTS B1/B2/B5/B8 |
| Data Rate |
5G: NSA: 2.6 Gbps (DL)/650 Mbps (UL);
SA: 2 Gbps (DL)/1 Gbps (UL)
LTE: Cat 12 (DL)/Cat 13 (UL); 600 Mbps (DL)/150 Mbps (UL)
WCDMA: 3GPP-R9 DC-HSDPA: 42.2 Mbps (DL)/HSUPA: 11 Mbps
(UL); WCDMA: 384 kbps (DL)/384 kbps (UL) |
| WLAN Feature 5.8G WIFI |
|
| Chipset |
EA6621QF |
| Frequency |
5.15~5.25GHz; 5.25~5.35GHz; 5.47~5.73GHz; 5.735~5.835GHz |
| Protocol |
802.11a/n/ac/ax, 80MHz; WIFI 6 |
| Channel |
Ch36,Ch40, Ch44, Ch48; Ch52~Ch64; Ch100~Ch140; Ch149~Ch165 |
| Antenna |
Internal, 1 x 1 SISO |
| Data Rate |
802.11a:Up to 54 Mbps
802.11n:Up to 150 Mbps
802.11ac:Up to 433.3 Mbps
802.11ax:Up to 600.5 Mbps |
| Transmit Power |
17±2dBm @ 802.11a
17±2dBm @ 802.11n
14±2dBm @ 802.11ac
12±2dBm @ 802.11ax |
| Receiver input level sensitivity |
<-76.5dBm at the antenna port,54Mbps @ 802.11a
<-71.5dBm at the antenna port,150Mbps @ 802.11n(HT40)
<-62dBm at the antenna port,433.3Mbps @ 802.11ac(VHT80)
<-58dBm at the antenna port,600.5Mbps @ 802.11ax(HE80) |
| Function Data |
|
| LAN/WAN |
1GE*RJ45 can support WAN/LAN Self-Adapter |
| SIM slot |
Support SIM (4FF nano) |
| USB Type C |
Type C , for FW debug or ECM modem (USB RNDIS) |
| Power Jack |
12v/1.5A interface recommended |
| Indicator light |
Power indicator (LED, White), WiFi indicator (LED, White), Data indicator (LED, White),
WAN/LAN (LED, White), RJ11 Indicator(LED,White), 3G/4G /5G Network Status Indicator(LED,White)
|
| Language |
Chinese/English/Español/Português, Customized |
| System |
|
| Connection Status |
Statistics; Device Management; Power Mangement |
| Mobile Service |
|
| Mobile Service |
SMS Manager; Automatic APN matching according to USIM; Auto Data Connection;
PIN/PUK Management; Network Mode Selection (3G/LTE/Auto)
|
| Management |
TR069/FOTA |
| OS |
Windows 7/8/XP/10
MAC OS 10.10+
Android 10/11
Ubuntu 15.04+
Browser: IE9+, Firefox, Google Chrome, Safari, Opera |
| FW Upgrade |
USB/FOTA |
