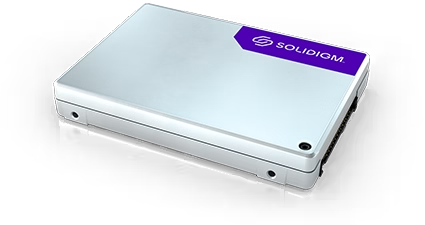

Solidigm 30.72TB D5-P5336 Series 2.5in U.2 PCIe 4.0 SSD
Hyper-scalable, cost-effective solution for AI and data-intensive workloads. Scales with the increasingly massive datasets found in widely deployed, modern read-intensive workloads.
• Accelerates data wherever it lives
• Increases storage density
• Boosts infrastructure efficiency
• Enables a more sustainable storage infrastructure
Key Features
Targets data wherever that data is generated
Meets the storage challenges of space, power, cooling, and serviceability in edge deployments where data-rich services and applications are created, processed, and stored outside the core data center.
Keeps up with data-hungry modern workloads
Stores and accesses vast amounts of data efficiently for modern, data-hungry workloads such as data lakes for AI, machine learning, big data analytics, content delivery networks, scale-out NAS, object storage, and edge applications.
Unprecedented storage capacity
Capacities up to 122.88TB allow for a smaller footprint without sacrificing data volume. From data lakes to content delivery networks and cloud storage, store and access vast amounts of data efficiently at speed.
Easier edge deployment
High-density storage in modern compact form factors, including E3.S, E1.L, and U.2, allows for easy deployment in edge environments where physical space is limited. This makes it ideal for edge AI deployments.
Massive TCO savings for new builds
High capacity improves power efficiency for new AI data center builds with up to a 9:1 reduction in storage racks, consuming less storage power and allowing more compute for GPU servers, compared with all-QLC versus hybrid HDD and TLC storage arrays.
Sustainability over time
It’s not easy to wear out 122TB of Solidigm storage. Even with the harshest random write workloads, running 24/7 for five years at 100%, you’ll still have additional storage space, based on a 122TB capacity using 100% 4KB random writes at 18K IOPS, per product specifications.
Specifications
| Form Factor |
U.2 15 mm |
| Capacity |
30.72 TB |
| Interface |
PCIe 4.0 x4, NVMe |
| Random Rating (Read / Write) |
1,005,000 IOPS (4K, QD256) / 39,200 IOPS (16K, QD256) |
| Latency Sequential Rating (Read / Write) |
8 μs (4K Blocks) / 15 μs (16K Blocks) |
| Latency Random Rating (Read / Write) |
110 μs (4K Blocks) / 25 μs (16K Blocks) |
| Power Consumption (Active / Idle) |
23 W / 5 W |
| Endurance Rating (Lifetime Writes) |
0.56 DWPD (16K RW) / 31.55 |
| Mean Time Between Failures (MTBF) |
2 million hours |
