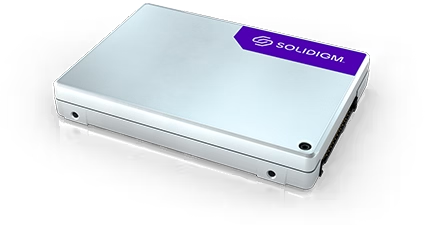

Solidigm™ D7-P5620 Series 6.4TB 2.5in PCIe 4.0 x4 U.2 SSD
For highly random, mixed-workload environments requiring low latency for improved user experience, the D7-P5620 delivers consistently amazing response time. For server-based storage solutions using virtualization software with random and sequential read/writes, it offers substantial random read IOPS and increases sequential write throughput.
Key Features
Performance-optimized for enterprise, data center, and cloud use
For solutions such as AI/ML, databases, and cloud applications, it provides substantial random and sequential read/write performance, high random read IOPS, and sequential write throughput.
High IOPS and throughput for virtualized server storage
For server-based storage solutions using virtualization software with random and sequential read/write workloads, it offers substantial random read IOPS and increased sequential write throughput.
High endurance, tested for durability
Designed with high endurance and tested with a zero-tolerance protocol for data errors to deliver durable performance.
Fast response time, low latency
For highly random, mixed-workload environments requiring low latency for improved user experience, the D7-P5620 delivers consistent response times.
Advanced features driving performance, security, and efficiency
Features include PCIe VDM support, variable sector sizes, scatter gather with dataset management, advanced telemetry logs, dynamic namespaces, and device self-test, plus AES-256 and TCG Opal 2.0 security.
Specifications
| Form Factor |
U.2 15 mm |
| Capacity |
6.4 TB |
| Interface |
PCIe 4.0 x4, NVMe |
| Random Rating (Read / Write) |
1,100,000 IOPS (4K Blocks) / 390,000 IOPS (4K Blocks) |
| Latency Sequential Rating (Read / Write) |
10 μs / 13 μs |
| Latency Random Rating (Read / Write) |
75 μs / 15 μs |
| Power Consumption (Active / Idle) |
18 W / 5 W |
| Endurance Rating (Lifetime Writes) |
35.0 PBW |
| Mean Time Between Failures (MTBF) |
2 million hours |
