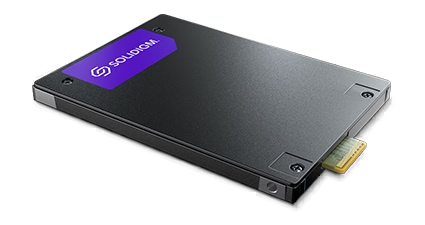

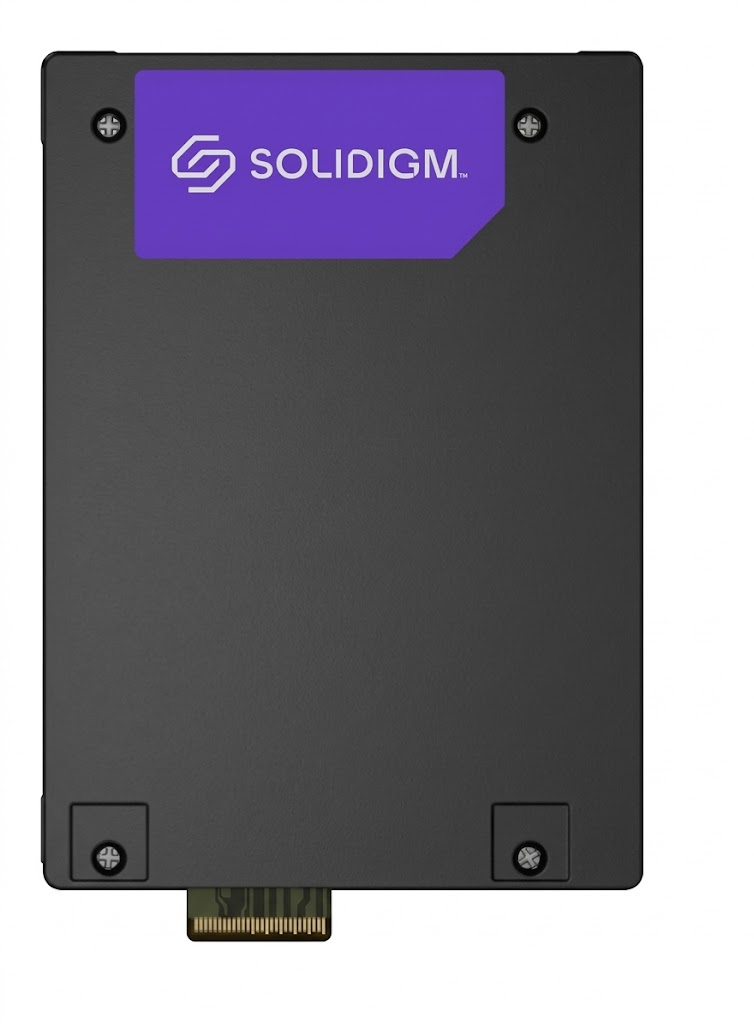

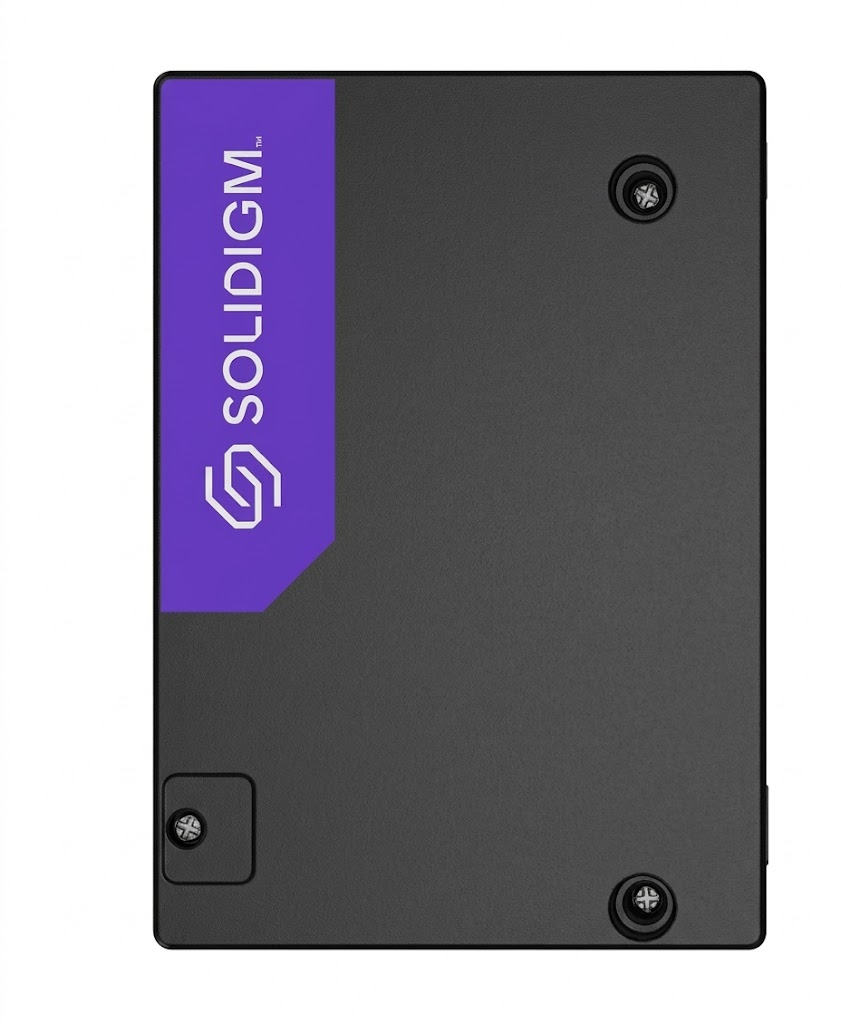

Solidigm D7-PS1030 Series 1.6TB E3.S 7.5mm PCIe 5.0 x4 SSD
The first Solidigm™ PCIe Gen 5 SSD offers industry-leading throughput across all the four corners. This ultra-fast D7-PS1030 PCIe 5.0 SSD combines class-leading performance to accelerate demanding modern workloads for real-world IO conditions. It accelerates enterprise and cloud workloads such as AI/ML, HPC, databases, general purpose servers, and more.
Key Features
• Next-Gen Performance and Efficiency, Elevated for Mid-Endurance: Combining class-leading performance and performance optimizations for real-world IO conditions, the Solidigm D7-PS1030 accelerates write-centric workloads such as OLTP, meta data logging, HPC, and more.
• PCIe 5.0 Performance Done Right: Powerful PCIe 5.0 performance accelerates a wide range of write-centric and mixed workloads, from cloud and enterprise applications to modern AI/ML pipelines.
• Improve operational efficiency without sacrificing performance: Experience up to 70% better energy efficiency compared to similar drives by other manufacturers, allowing for more efficient energy and operation. Five flexible power states ranging from 5W to 25W, let you control your power consumption to meet workload needs.
• Fast, flexible & secure: Optimized to deploy with support for the latest security protocols like device attestation, and key revocation in motion and at rest. Available in multiple form factors. Enable both legacy and modern chassis designs.
• Reliable PCIe 5.0 performance: Designed for the long run, the D7-PS1030 delivers up to 90% IOPS consistency across the life of the drive, with reduced latency and better quality of service compared to the previous gen SSDs.
Specifications
| Form Factor |
E3.S 7.5 mm |
| Capacity |
1.6 TB |
| Interface |
PCIe 5.0 x4, NVMe |
| Random Rating (Read / Write) |
2,350,000 IOPS (4K Blocks) / 350,000 IOPS (4K Blocks) |
| Latency Sequential Rating (Read / Write) |
60 μs / 7 μs |
| Latency Random Rating (Read / Write) |
60 μs / 8 μs |
| Power Consumption (Active / Idle) |
17 W / 5 W |
| Endurance Rating (Lifetime Writes) |
3 DWPD / 8.7 PBW |
| Mean Time Between Failures (MTBF) |
2.5 million hours |
