Stop worrying about slow or unsafe network traffic. The Sophos XGS 4500 is a powerful 1U rack-mount firewall that protects your data while keeping speeds high. If your business faces growing bandwidth needs and constant cyber threats, this appliance gives you the speed and security you need in a single, easy-to-manage box.

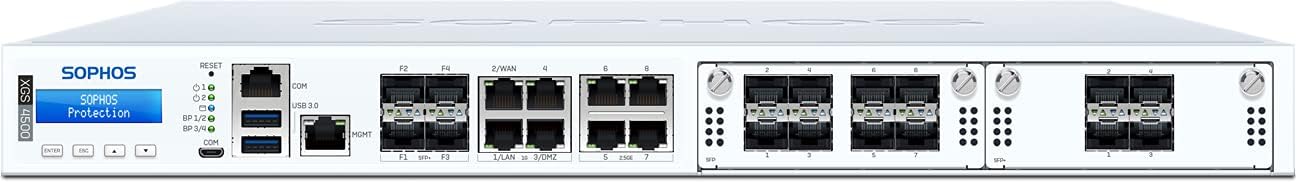

Sophos XGS 4500, 80 Gbps 1U rackmount 30 Gbps NGFW, Firewall Security Appliance
Many companies struggle with firewalls that cant keep up with modern traffic. When the firewall slows down, users experience lag and attackers find gaps. This problem hurts productivity and puts data at risk. The XGS 4500 solves it by delivering up to 80 Gbps of firewall throughput and 30 Gbps of next-generation firewall (NGFW) performance, all while inspecting traffic for threats in real time.
Key Features
- 80 Gbps firewall throughput with 4 s latency.
- 30 Gbps NGFW performance for advanced policy enforcement.
- 36.5 Gbps IPS throughput and 31.85 Gbps threat protection throughput.
- 17.2 million concurrent connections and 450 k new connections per second.
Specifications
| Performance |
XGS 4500 |
| Firewall throughput |
80 Gbps |
| Firewall IMIX |
37 Gbps |
| Firewall Latency (64 byte UDP) |
4 microseconds |
| IPS throughput |
36.5 Gbps |
| Threat Protection throughput |
31.85 Gbps |
| NGFW |
30 Gbps |
| Concurrent connections |
17,200,000 |
| New connections/sec |
450,000 |
| IPsec VPN throughput |
75.55 Gbps |
| IPsec VPN concurrent tunnels |
8,500 |
| SSL VPN concurrent tunnels |
10,000 |
| Xstream SSL/TLS Inspection |
10.6 Gbps |
| Xstream SSL/TLS concurrent connections |
276,480 |
| Physical Interfaces |
|
| Storage (local quarantine/logs) |
2 x min. 240 GB SATA-III SSD (SW RAID-1) |
| Ethernet interfaces (fixed) |
4 x GE copper
4 x 2.5 GE copper
4 x SFP+ 10 GE fiber*
|
| Bypass port pairs |
2 |
| Management ports |
1 x RJ45 MGMT
1 x COM RJ45
1 x Micro-USB (cable incl.)
|
| Other I/O ports |
2 x USB 3.0 (front) |
| Number of Flexi Port slots |
2 |
| Flexi Port modules (optional) |
8 port GE copper
8 port GE SFP fiber
4 port 10 GE SFP+ fiber
4 port GE copper bypass (2 pairs)
4 port GE copper PoE + 4 port GE copper
2-port 10 GE NBASE-T copper + 2 port 10 GE SFP+ fiber
2 port GE Fiber (LC) bypass + 4 port GE SFP Fiber
|
| Max. total port density (incl. use of modules) |
28 |
| Max. Power-over-Ethernet (using Flexi Port module) |
2 modules: 4 ports, 60W max. each |
| Optional add-on connectivity |
SFP DSL module (VDSL2) SFP/ SFP+ Transceivers |
| Display |
Multi-function LCD module |
| Physical Specifications |
|
| Mounting |
1U rackmount (sliding rails incl.) |
| Dimensions: Width X height X depth |
438 x 44 x 510 mm |
| Weight |
9.7 kg/21.38 lbs (unpacked)15.9 kg/35.05 lbs (packed) |
| Environment |
|
| Power supply |
Internal Hot Swappable auto-ranging AC-DC 100-240VAC, 3.7-7.4A@50-60 Hz
Internal Redundant PSU Option
|
| Power consumption |
151 W/515.74 BTU/hr (idle)
268.35 W/916.56 BTU/hr (max.)
PoE addition enabled 152 W/519 BTU/hr
|
| Operating temperature |
0°C to 40°C (operating)
-20 to +70°C (storage)
|
| Humidity |
10% to 90%, non-condensing |
| Product Certifications |
|
| Certifications |
CB, CE, UKCA, UL, FCC, ISED, VCCI, KC, RCM, NOM, Anatel, CCC, BSMI, TEC, SDPPI |
