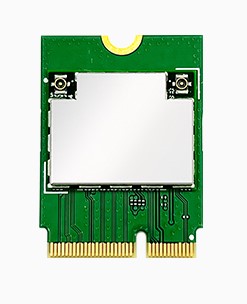

Name: SparkLAN WNFQ-290BE(BT), Tri-band WiFi & Bluetooth M.2 2230 (E KEY) Module
Brand: SparkLAN
SKU: NWEL-206
Price: 86.99 USD
Availability: InStock

SparkLAN WNFQ-290BE(BT), Tri-band WiFi & Bluetooth M.2 2230 (E KEY) Module

UK Free Shipping

Description
Documents
Reviews

Many modern devices suffer from weak Wi-Fi signals and unstable Bluetooth connections. When the network drops, you lose video calls, file transfers, and online gaming performance. This hurts productivity and enjoyment, especially in crowded homes or busy offices. The SparkLAN WNFQ-290BE(BT) module fixes the problem by delivering fast tri-band Wi-Fi and reliable Bluetooth 5.4 in a tiny M.2 2230 form factor, giving you a steady link wherever you need it.

SparkLAN WNFQ-290BE(BT), Tri-band WiFi & Bluetooth M.2 2230 (E KEY) Module with SparkLAN

Upgrade your computer or embedded board with a single card that brings the newest Wi-Fi standards and Bluetooth to life. SparkLANs module packs a Qualcomm QCC2073 chipset, supports Wi-Fi 6E (802.11be) and Bluetooth 5.4, and fits into any E-key M.2 slot. If you are tired of lag, dropped streams, or limited device pairing, this module is the clear answer.

Key Features

Wi-Fi 802.11be/ax/ac/a/b/g/n (2T2R) for top throughput.
Bluetooth V5.4 with backward compatibility to V2.1.
Qualcomm QCC2073 chipset ensures reliable performance.
PCIe host interface for Wi-Fi, USB for Bluetooth.
Two IPEX MHF4 connectors for flexible antenna placement.
Operating frequencies: 2.4 GHz, 5 GHz, and 6 GHz bands.
Supports WPA2, WPA3, WPS2.0, and other security protocols.
Power consumption: 802 mA TX, 407 mA RX at max.
Linux open-source driver support for easy integration.

Specifications

Standard	Wi-Fi: IEEE 802.11be/ax/ac/a/b/g/n (2T2R)
Bluetooth	Bluetooth V5.4, V5.3, V5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR
Chipset	Qualcomm QCC2073
Host Interface	WLAN: PCIe; Bluetooth: USB
Antenna	2 × IPEX MHF4 connectors (Main: Wi-Fi, Aux: Wi-Fi/BT)
Operating Frequency	2.400–2.4835 GHz; 5.150–5.850 GHz; 5.925–7.125 GHz (Subject to local regulations)
Wi-Fi Modulation	802.11b: DSSS (DBPSK, DQPSK, CCK); 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM); 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM); 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM); 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM); 802.11ax: OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM); 802.11be: OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
Bluetooth Modulation	Header: GFSK; Payload 2M: π/4-DQPSK; Payload 3M: 8-DPSK
Power Consumption	Continuous TX (802.11be): 802 mA (Max); Continuous RX (802.11be): 407 mA (Max)
Operating Voltage	DC 3.3 V
Temperature Range	Operating: -10°C to +65°C; Storage: -40°C to +85°C
Humidity	Operating: 5–90% (Non-condensing); Storage: 5–90% (Non-condensing)
Dimensions	30 mm × 22 mm × 2.6 mm
Weight	2.82 g
Driver Support	Linux (Open Source)
Security	WPS2.0, WAPI, WPA, WPA2, WPA3
