Tired of slow, blurry receipts that hold up your checkout line? The Star Micronics TSP743IID-24 is a fast, high-resolution thermal printer that keeps your customers moving. It prints sharp images and text in seconds, so you never lose a sale because of a jammed or noisy printer.

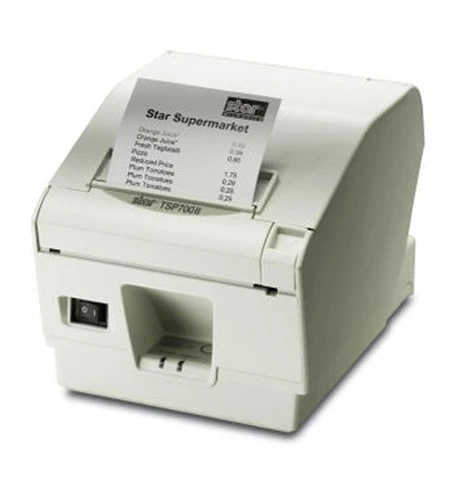

Star Micronics TSP743IID-24, 406x203 DPI, 250mm/sec, Direct Thermal POS Printer
Long lines happen when a printer cannot keep up with demand. In a busy store this means frustrated staff and angry shoppers. The TSP743IID-24 solves that problem by printing up to 48 receipts per minute at 406 203 DPI. Its direct-thermal technology removes the need for ink, and the sturdy cover protects it from dust and spills. With this printer you get reliable speed, quiet operation, and crisp graphics that make every receipt look professional.
Key Features
- Print speed: 250 mm/sec (48 ppm)
- Resolution: 406 x 203 DPI for sharp graphics
- Direct thermal technology - no ink or ribbon needed
- 2 million-cut autocutter for long-term use
- Supports 80 mm, 82.5 mm and 58 mm paper widths
- Serial interface for easy integration with POS systems
- White compact design with dust-proof top cover
- Operating temperature range 5 C to 45 C
- Power consumption 1800 mA for reliable performance
- Star Mode and ESC/POS emulations for flexible software support
Specifications
| Printing |
| Print speed |
250 mm/sec, 48 ppm |
| Maximum resolution |
406 x 203 DPI |
| Colour |
Y |
| Print technology |
Direct thermal |
| Paper handling |
| Autocutter durability |
2 million cuts |
| Maximum roll diameter |
10 cm |
| Media thickness |
0.065 - 0.15 mm |
| Supported paper width |
80, 82.5, 58 mm |
| Autocutter |
Yes |
| Ports & interfaces |
| Standard interfaces |
Serial |
| Connectivity technology |
Wired |
| Performance |
| Certification |
UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost |
| Flash memory |
2 MB |
| Design |
| Product colour |
White |
| Power |
| Power consumption |
1800 mA |
| Operational conditions |
| Operating temperature (T-T) |
5 - 45 °C |
| Operating temperature (T-T) |
5 - 45 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
| Weight |
1.75 kg |
| Height |
148 mm |
| Depth |
213 mm |
| Width |
147 mm |
| Other features |
| Emulations |
Star Mode, ESC/POS |
| Maximum resolution |
406 x 203 DPI |
