Tired of dropped connections and a tangled mess of cables when you need reliable bandwidth for industrial machines? StarTech delivers a plug-and-play solution that expands your network without the noise or heat of a fan. The 5-Port Gigabit Ethernet Unmanaged Industrial Network Switch gives you five auto-negotiating ports, rugged metal housing, and simple power via a 3-pin terminal block, so your devices stay online even in harsh conditions.
StarTech.com, 5-Port Gigabit Ethernet, Unmanaged Industrial Network Switch
The StarTech.com, 5-Port Gigabit Ethernet, Unmanaged Industrial Network Switch is a compact, unmanaged switch built for factories, control rooms, and surveillance rigs. It provides five gigabit ports, QoS, jumbo-frame support and DIN-rail or wall mounting, letting you connect PLCs, cameras or storage devices with a single, sturdy unit.
Benefits
- You get reliable connectivity that keeps production running.
- StarTechs rugged design survives temperature swings and dust.
- Plug-and-play setup saves time and eliminates configuration headaches.
- Five gigabit ports handle large file transfers and video streams.
- LED indicators let you see link status at a glance.

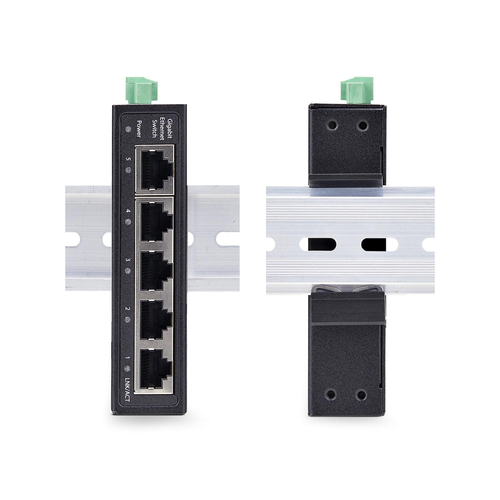

- DIN-rail or wall mount gives flexible installation in tight spaces.
Features
- Five 10/100/1000 Mbps Ethernet ports
- Fanless metal enclosure, IP30 rated
- Auto MDI/MDI-X auto-negotiation
- QoS IEEE 802.1p support
- 9K jumbo frame capability
- 3-pin terminal block power input

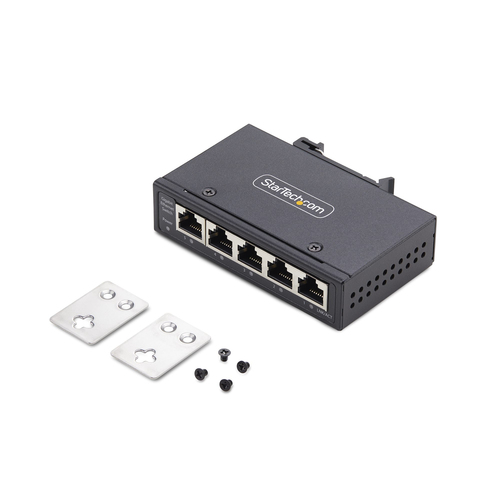

- DIN rail and wall-mount kits included
- Operating range -40 C to 75 C
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Power connector |
Terminal block (3-pin) |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Design |
| DIN rail mounting |
Yes |
| International Protection (IP) code |
IP30 |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Performance |
| Mean time between failures (MTBF) |
556710 h |
| Power |
| Input voltage |
9 - 60 V |
| Power supply included |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 75 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-40 - 75 °C |
| Weight & dimensions |
| Weight |
221.7 g |
| Height |
26 mm |
| Depth |
100 mm |
| Width |
60 mm |
| Packaging content |
| Quick start guide |
Yes |
| Packaging data |
| Package weight |
293.7 g |
| Package height |
55 mm |
| Package depth |
159 mm |
| Package width |
107 mm |
| DIN rail included |
Yes |
| Mounting brackets included |
Yes |
| Terminal block included |
Yes |
| Certificates |
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
