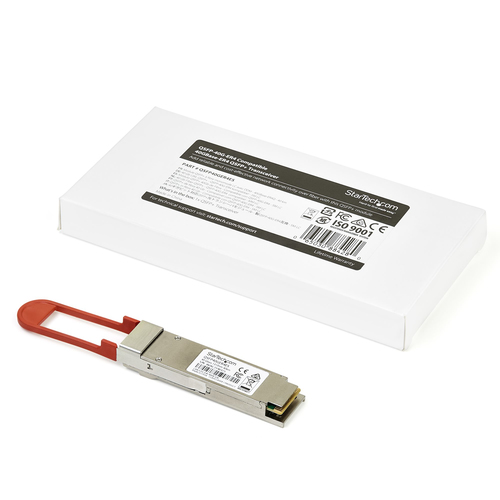

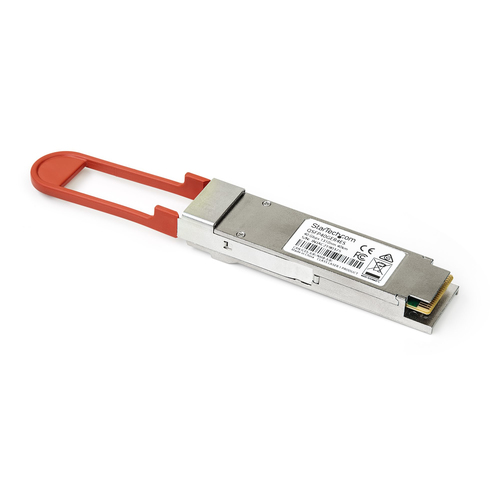

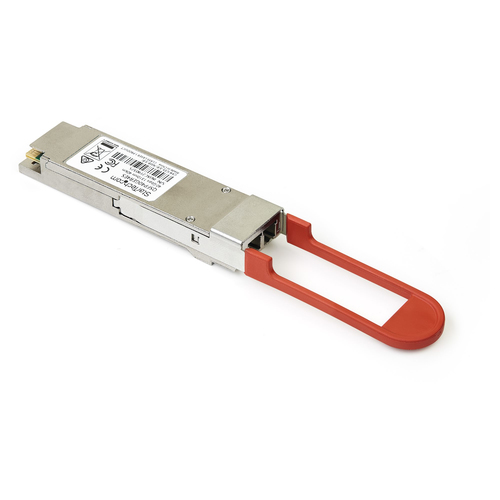

StarTech.com QSFP40GER4ES, 1311nm SMF 40GE QSFP+ Transceiver Module

StarTech.com QSFP40GER4ES 40Gbps 1311nm QSFP+ 24.9 Miles SMF Transceiver

The StarTech.com QSFP40GER4ES is a fiber optic QSFP+ transceiver module designed for 40 Gigabit Ethernet connectivity. It supports Ethernet 40GBase-ER4Q and provides a data transfer rate of 40Gbps.

This 40GE QSFP+ transceiver operates at an optical wavelength of 1311 nm and supports a maximum transfer distance of 24.9 miles. Its plug-in module form factor is designed for compatible high-speed networking equipment.

The module supports full duplex mode and Digital Diagnostics Monitoring (DDM). It provides an Ethernet 40GBase-ER4Q interface using LC single-mode connectivity.

The StarTech.com QSFP40GER4ES is an OEM manufacturer equivalent of the Dell EMC QSFP-40G-ER4. It is designed for 40 Gigabit Ethernet optical networking applications requiring long-distance single-mode fiber connectivity.

The transceiver complies with UL, FCC, RoHS, REACH, and MSA standards. It is supplied as a packaged quantity of one and includes a limited lifetime warranty.

Key Features

• 40Gbps data transfer rate

• QSFP+ transceiver module

• Ethernet 40GBase-ER4Q

• 1311 nm optical wavelength

• 24.9 miles maximum transfer distance

• LC single-mode connectivity

• Full duplex mode

• Digital Diagnostics Monitoring (DDM)

• UL, FCC, RoHS, REACH, and MSA compliant

• Dell EMC QSFP-40G-ER4 OEM equivalent
