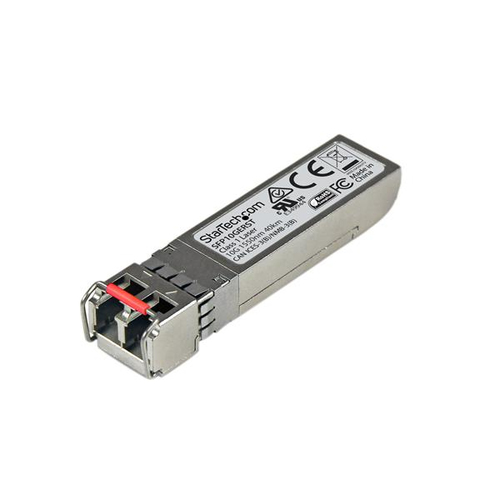

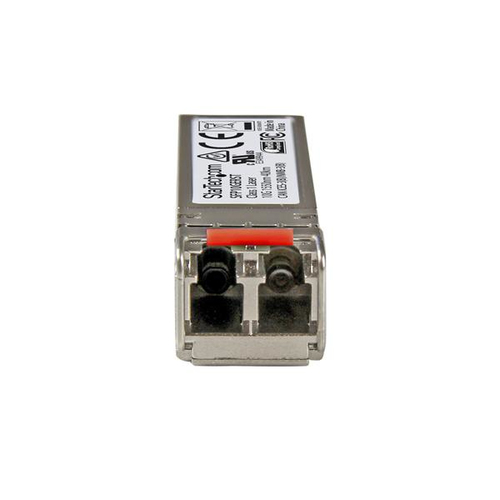

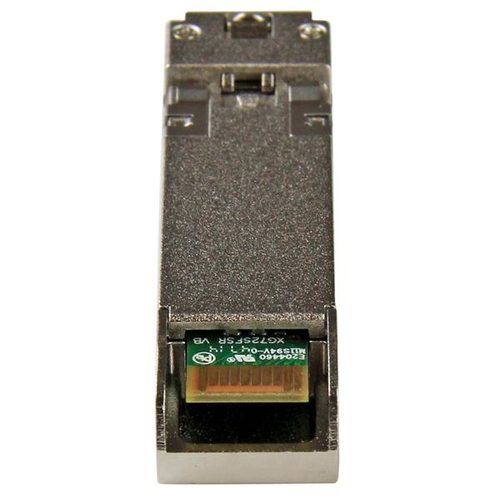

StarTech.com SFP-10G-ER 10Gbps 1550nm SFP+ 24.9 Miles Transceiver
The StarTech.com SFP-10G-ER is a fiber optic SFP+ transceiver module designed for 10 Gigabit Ethernet connectivity. It supports Ethernet 10GBase-ER technology and provides a maximum transfer distance of 24.9 miles.
This 10G SFP+ transceiver operates at an optical wavelength of 1550 nm and features a plug-in module form factor. It is designed for wired networking applications requiring long-distance optical connectivity.
The module supports full duplex mode, Digital Optical Monitoring (DOM), and Digital Diagnostics Monitoring (DDM). It provides an Ethernet 10GBase-ER interface with LC single-mode connectivity.
The StarTech.com SFP-10G-ER is an OEM manufacturer equivalent of the Cisco SFP-10G-ER and complies with UL, FCC, RoHS, and MSA standards. It is designed for compatible 10 Gigabit Ethernet optical networking applications.
The transceiver operates from 32 °F to 158 °F and features a silver housing. It is supplied as a packaged quantity of one and includes a limited lifetime warranty.
Key Features
-
10Gbps data transfer rate
-
SFP+ transceiver module
-
Ethernet 10GBase-ER
-
1550 nm optical wavelength
-
24.9 miles maximum transfer distance
-
Full duplex mode
-
Digital Optical Monitoring (DOM) support
-
Digital Diagnostics Monitoring (DDM)
-
LC single-mode connectivity
-
UL, FCC, RoHS, and MSA compliant
-
Cisco SFP-10G-ER OEM equivalent
-
Plug-in module form factor
-
Limited lifetime warranty
Specifications
| Miscellaneous |
|
| OEM Manufacturer Equivalent Part Number |
Cisco SFP-10G-ER |
| Compliant Standards |
UL, FCC, RoHS, MSA |
| Networking |
|
| Form Factor |
Plug-in module |
| Connectivity Technology |
Wired |
| Features |
Full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM) |
| Data Transfer Rate |
10Gbps |
| Optical Wave Length |
1550 nm |
| Cabling Type |
Ethernet 10GBase-ER |
| Data Link Protocol |
10 Gigabit Ethernet |
| Type |
SFP+ transceiver module |
| Max Transfer Distance |
24.9 miles |
| Header |
|
| Product Line |
Startech |
| Packaged Quantity |
1 |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - lifetime |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
158 °F |
| Service & Support |
|
| Type |
Limited lifetime warranty |
| General |
|
| Device Type |
SFP+ transceiver module |
| Color |
Silver |
| Form Factor |
Plug-in module |
| Expansion & Connectivity |
|
| Interfaces |
1 x Ethernet 10GBase-ER - LC single-mode female x 2 |
