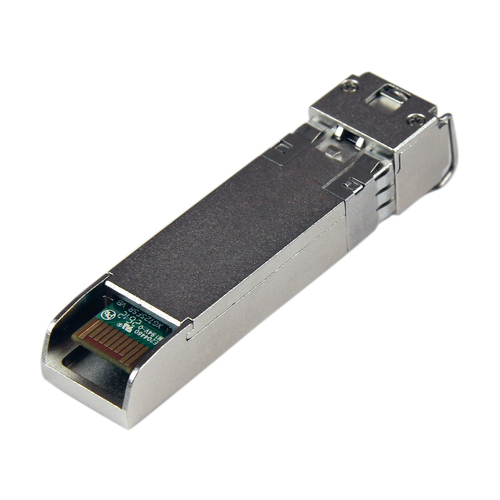

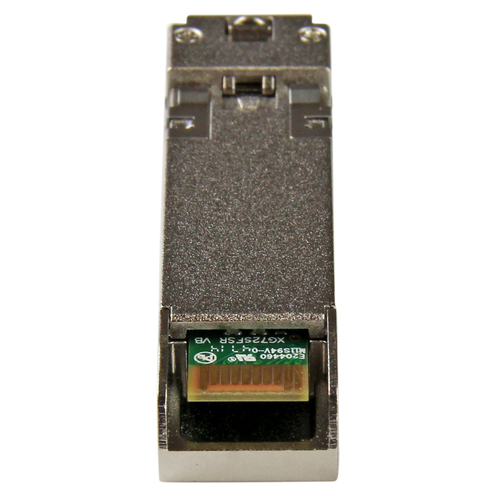

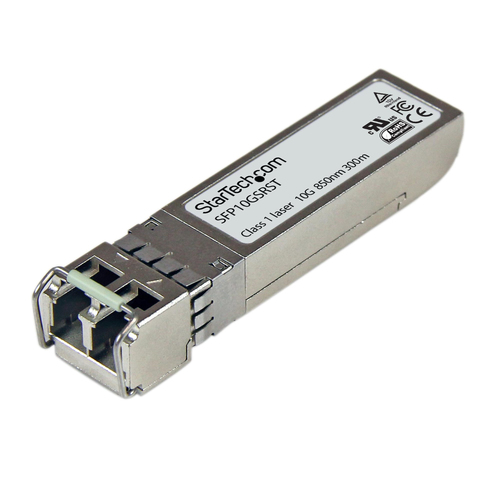

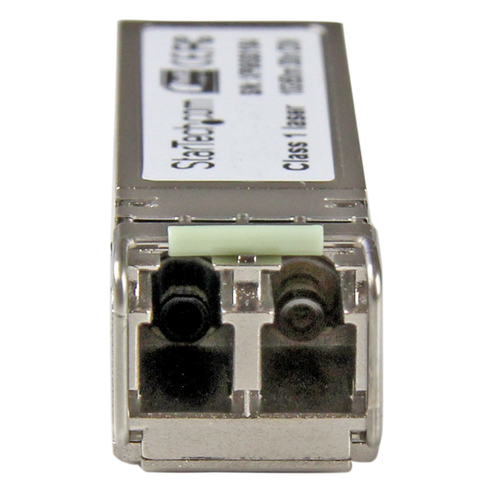

StarTech.com SFP-10G-SR Cisco Compatible 850nm SFP+ 984ft Transceiver
The StarTech.com SFP-10G-SR is a Cisco compatible SFP+ transceiver module designed for 10 Gigabit Ethernet connectivity. It uses Ethernet 10GBase-SR technology and provides a maximum transfer distance of 984 ft.
This fiber optic SFP+ transceiver operates at an optical wavelength of 850 nm and supports a data transfer rate of 11.1Gbps. It features a plug-in module form factor for compatible networking equipment.
The module supports both half duplex and full duplex modes and includes Digital Diagnostics functionality. It provides an Ethernet 10GBase-SR interface with LC multi-mode connectivity.
The StarTech.com SFP-10G-SR complies with UL, FCC, RoHS, Laser Class 1, and MSA standards. It is designed for wired 10 Gigabit Ethernet networking applications.
The transceiver operates from 32 °F to 158 °F and is supplied as a packaged quantity of one. It also includes a limited lifetime warranty for supported applications.
Key Features
-
Cisco compatible SFP+ transceiver module
-
11.1Gbps data transfer rate
-
Ethernet 10GBase-SR
-
850 nm optical wavelength
-
984 ft maximum transfer distance
-
Half duplex and full duplex modes
-
Digital Diagnostics
-
LC multi-mode connectivity
-
Plug-in module form factor
-
UL, FCC, RoHS, Laser Class 1, and MSA compliant
-
Limited lifetime warranty
Specifications
| Miscellaneous |
|
| Compliant Standards |
UL, FCC, RoHS, Laser Class 1, MSA |
| Networking |
|
| Form Factor |
Plug-in module |
| Connectivity Technology |
Wired |
| Features |
Half duplex mode, full duplex mode, Digital Diagnostics |
| Data Transfer Rate |
11.1Gbps |
| Optical Wave Length |
850 nm |
| Cabling Type |
Ethernet 10GBase-SR |
| Data Link Protocol |
10 Gigabit Ethernet |
| Type |
SFP+ transceiver module |
| Max Transfer Distance |
984 ft |
| Header |
|
| Product Line |
Startech |
| Packaged Quantity |
1 |
| Manufacturer Warranty |
|
| Service & Support |
Limited warranty - lifetime |
| Environmental Parameters |
|
| Min Operating Temperature |
32 °F |
| Max Operating Temperature |
158 °F |
| Service & Support |
|
| Type |
Limited lifetime warranty |
| General |
|
| Device Type |
SFP+ transceiver module |
| Form Factor |
Plug-in module |
| Expansion & Connectivity |
|
| Interfaces |
1 x Ethernet 10GBase-SR - LC multi-mode female x 2 |
